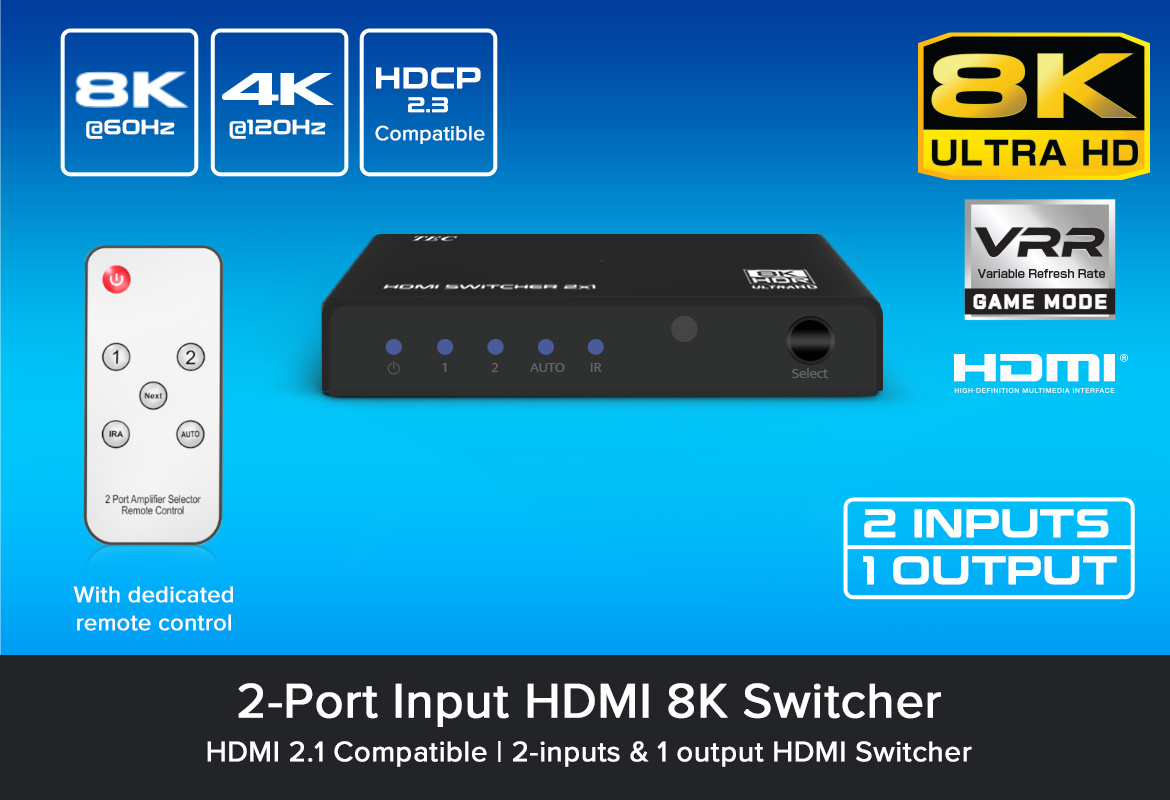

THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports

Model No.:

THDSW21-8K

JAN:

4533239033588
<span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span>
<span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span> thumbnail 1 <span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span> thumbnail 2 <span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span> thumbnail 3 <span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span> thumbnail 4 <span>THDSW21-8K HDMI Switcher Supports 8K HDMI 2.1 HDMI 2 inputs 1 output HDMI Ports</span> thumbnail 5
THDSW21-8K



THDSW21-8K



THDSW21-8K



THDSW21-8K



THDSW21-8K



THDSW21-8K



THDSW21-8K



Model No.THDSW21-8K
JAN4533239033588
HDMI input2 ports
HDMI output1 port
HDMI standardHDMI 2.1
HDCP standardHDCP 2.3
Corresponding frequency8K/50/60Hz 、 4K/120Hz 、1080P/240Hz
*Supported frequencies vary depending on the resolution.
Data rate48Gbps
Interlaced compatible resolution480i , 576i , 1080i
Progressive compatible resolution480p, 576p, 720p, 1080p, 4K@2430Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz
Power SupplymicroUSB cable
*AC USB adapter is not included.
Power consumption (maximum)5W
Product size90mm x 44mm x 14mm
Gross weight87g
※When using 8K, 4K 120Hz, and VRR, please prepare 8K compatible content, HDMI output device, HDMI 2.1 cable, and 8K compatible monitor separately.
