DISCONTINUED
THD42MSP2-4K HDMI Switcher
Model No.:
THD42MSP2-4K
JAN:
4533239028447
DISCONTINUED
It displays the input image as a clean digital image without degradation.

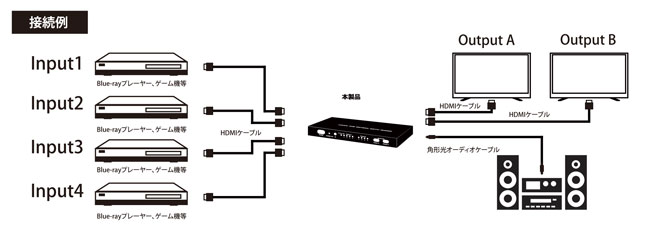

It supports 4K (3840 × 2160) / 30Hz and 3D video. HDMI output from up to four devices can be freely selected and output to two displays or other output devices.
Only Input 1 supports MHL / HDMI. The other inputs support HDMI only.
When the same HDMI output is selected for both displays, it can also function as a splitter.
Output A can simultaneously output audio through the optical digital terminal, COAX, and 3.5mm audio jack.
| Model number | THD42MSP2-4K | JAN | 4533239028447 |
| Input terminal | HDMI X 4 (Input 1 only supports MHL) | ||
| Output terminal | HDMI X 2 | ||
| Audio output terminal (Output A) | S/PDIF (optical digital terminal), COAX, 3.5mm audio jack | ||
| Input resolution | 480i,576i,1080i,480p,576p,720p,1080p,4K(3840×2160)/30Hz | ||
| Output resolution | 480i,576i,1080i,480p,576p,720p,1080p,4K(3840×2160)/30Hz | ||
| HDMI version | 1.4a with full 3D and 4k , HDCP 1.3 | ||
| Supported audio format | LPCM/Dolby Digital Plus/Dolby TrueHD/DTS-HD High Resolution Audio/DTS-HD Master Audio | ||
| Data transfer speed | 3.4Gbps/340MHz | ||
| Power supply | Included AC adapter | ||
| Body size | 190 x 92 x 20mm（excluding protrusions） | ||
| Weight | Approximately 730g | ||
| Power consumption | 8W | ||
| Accessories | AC adapter, remote control, instruction manual and warranty card | ||
| Warranty period | 12 months | ||
