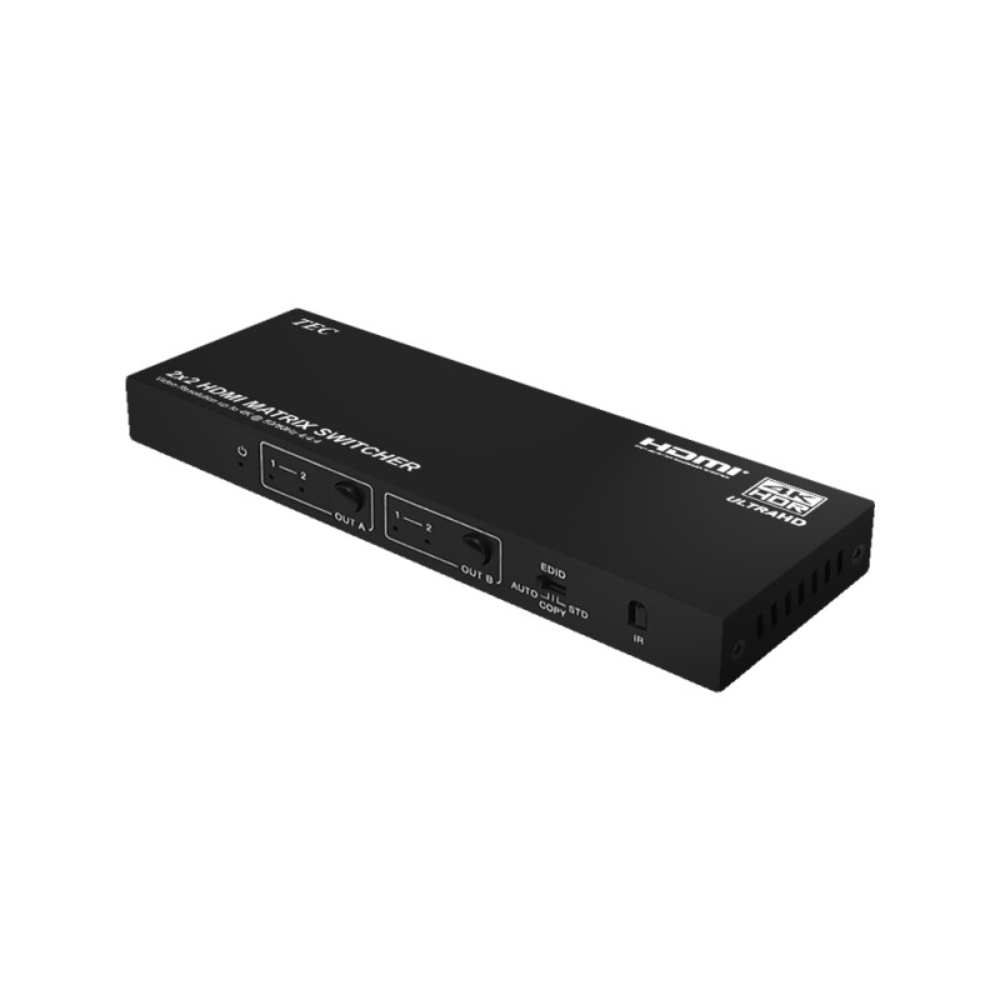

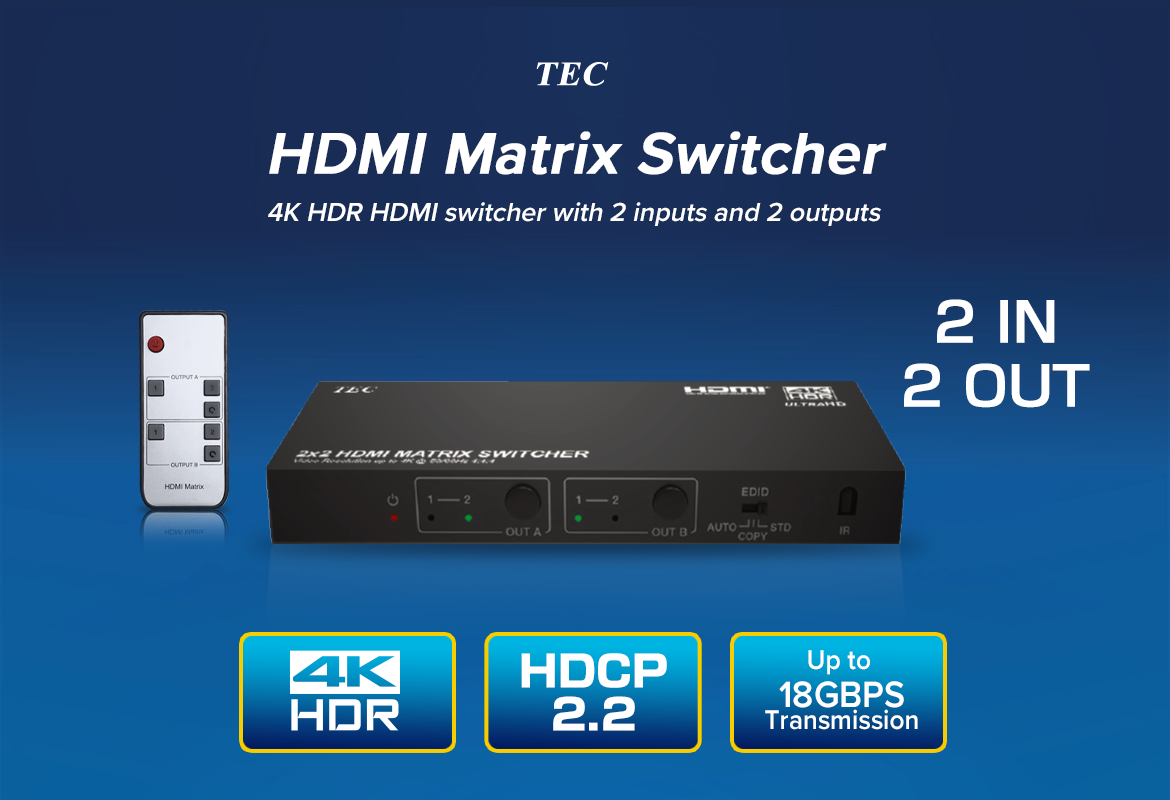

THD22MSP-4K60 HDMI Matrix Display Switching Distributor

Model No.:

THD22MSP-4K60

JAN:

4533239033137
<span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span>
<span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 1 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 2 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 3 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 4 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 5 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 6 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 7 <span>THD22MSP-4K60 HDMI Matrix Display Switching Distributor</span> thumbnail 8
THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



THD22MSP-4K60



Model numberTHD22MSP-4K60
JAN4533239033137
HDCP compatibleHDCP 2.2 and HDCP 1.0
Transmission speed18Gbps in total
HDMI compatible input/output resolutionMaximum 4K2K@50/60Hz YCBCr 4:4:4
HDMI compatible lengthMaximum 10m
High Dynamic Range (HDR)HDR, HDR 10+, HLD, DOLBY VISION
HDMI compatible audio formatsPCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD

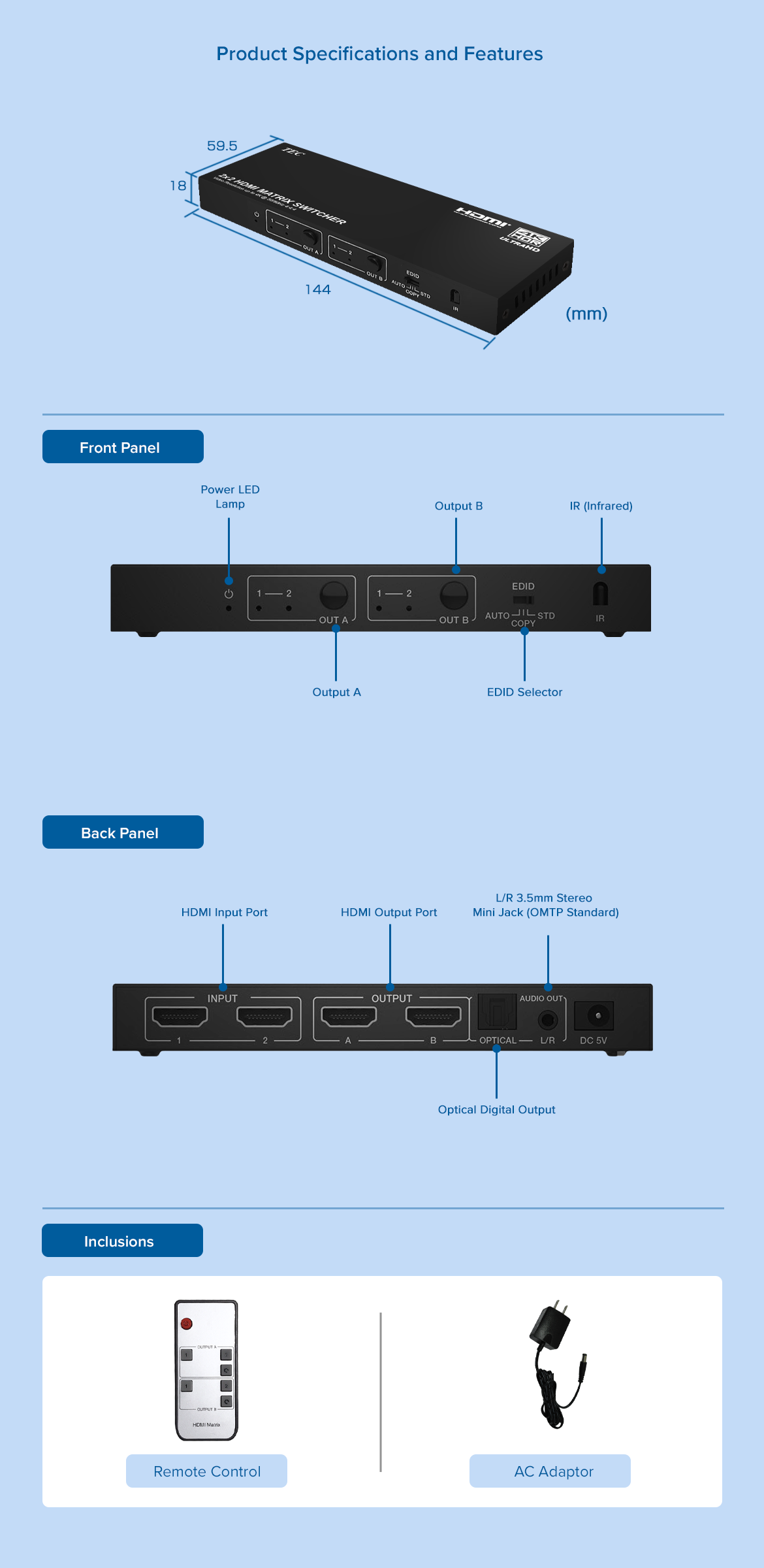

Product size144 (W)× 59.5(D) × 18(H) mm
Product weight208g

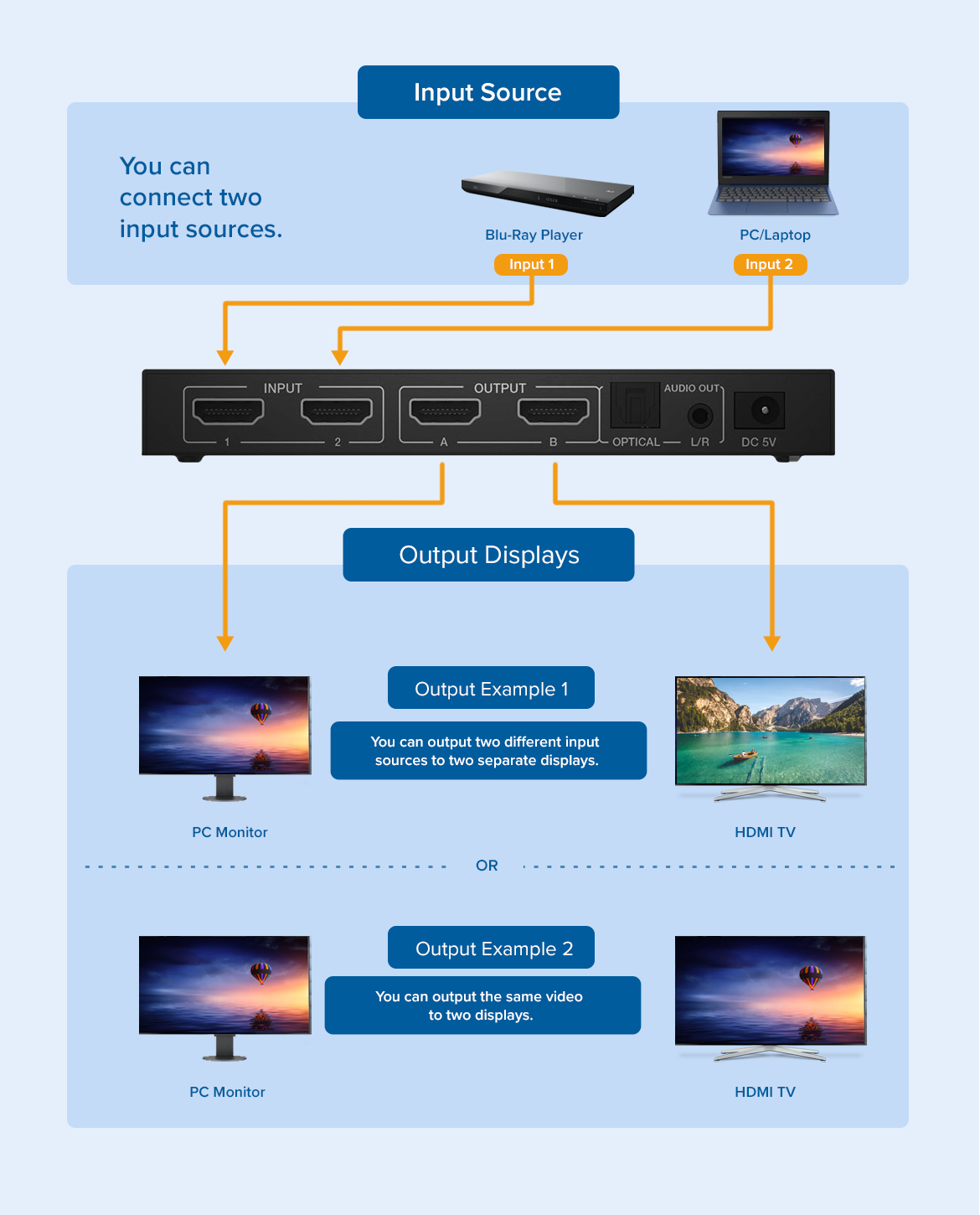

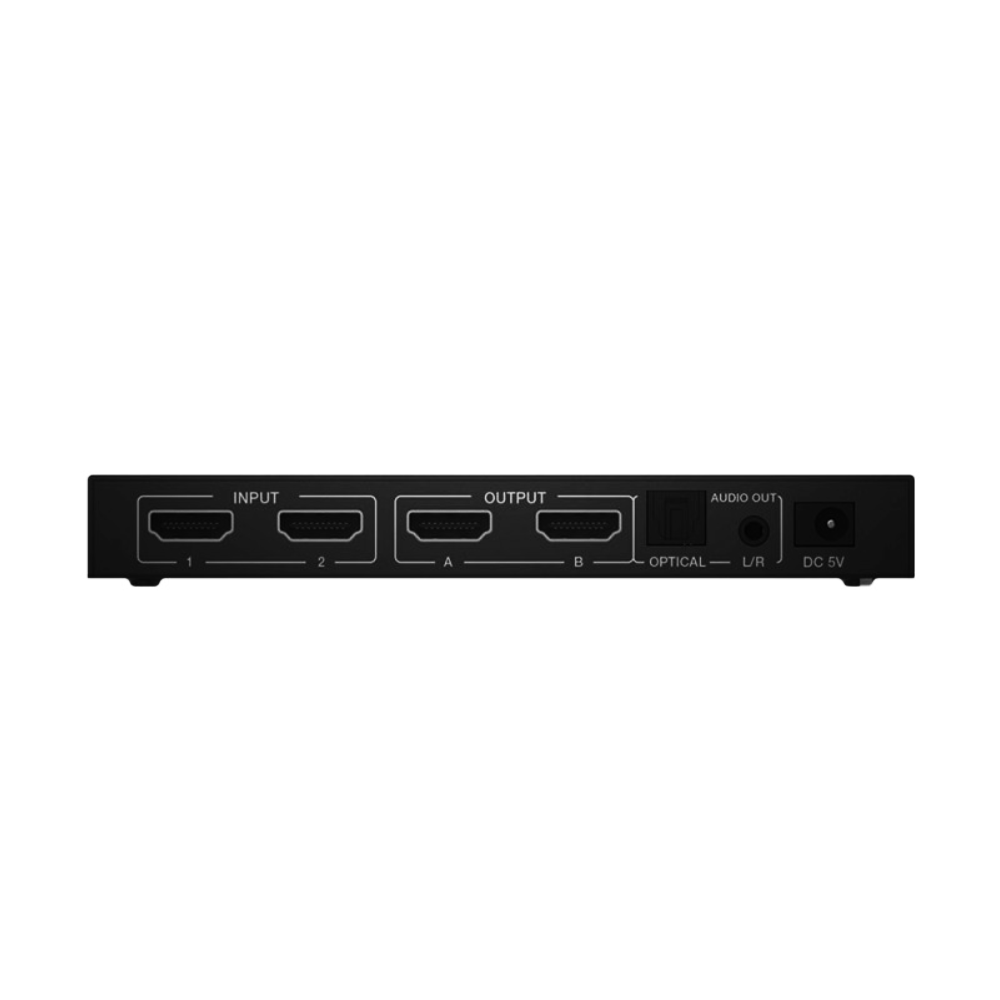

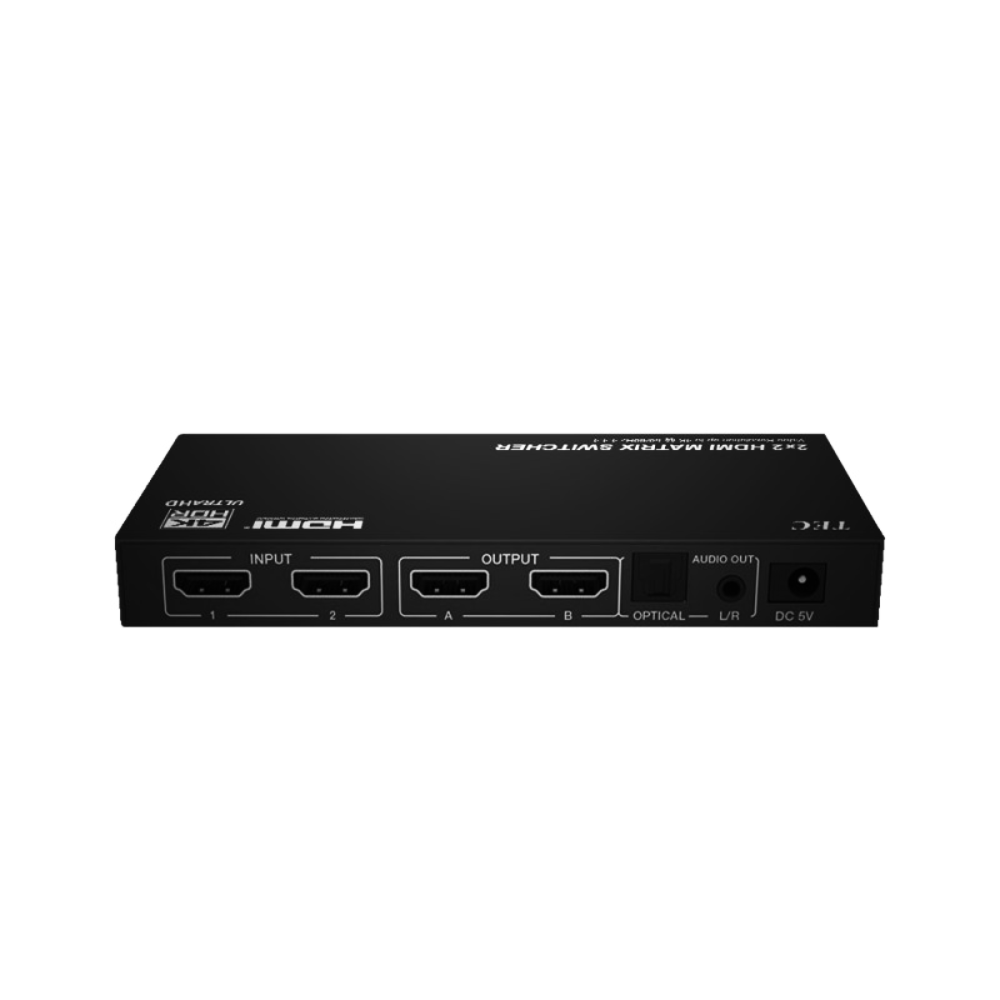

Connection site

Input PortHDMI Type-A (19-pin female) x 2,

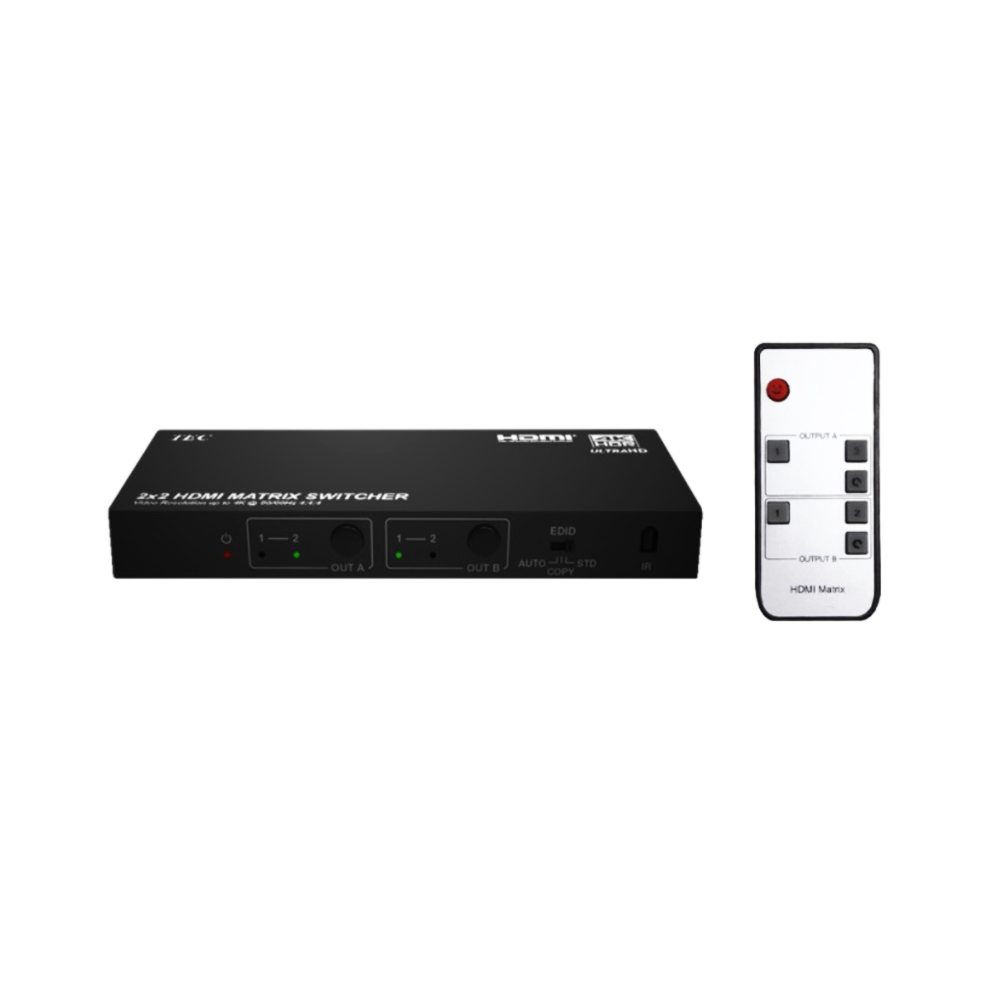

IR receiving window x 1
Output terminalHDMI Type-A (19-pin female) x 2,
L/R (3.5mm stereo mini jack) x 1,
Optical digital output x 1 (OPTICAL jack)
