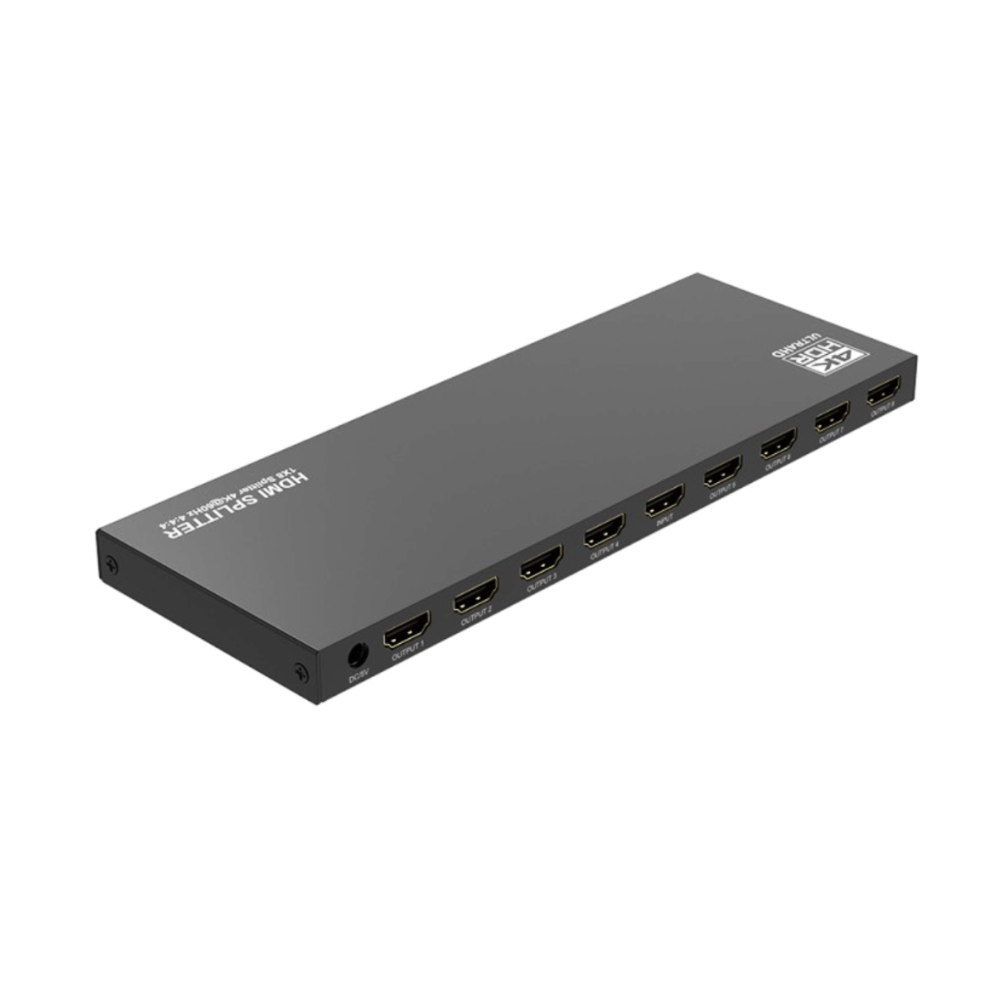

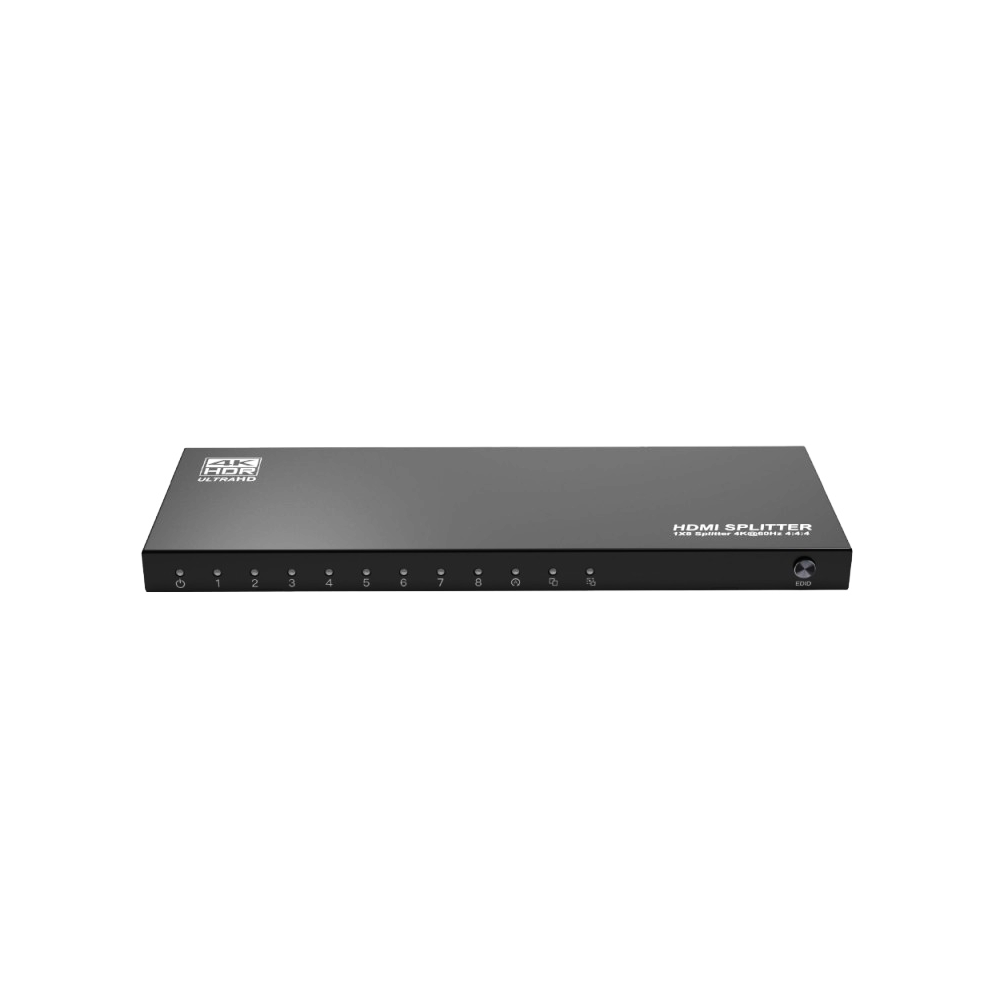

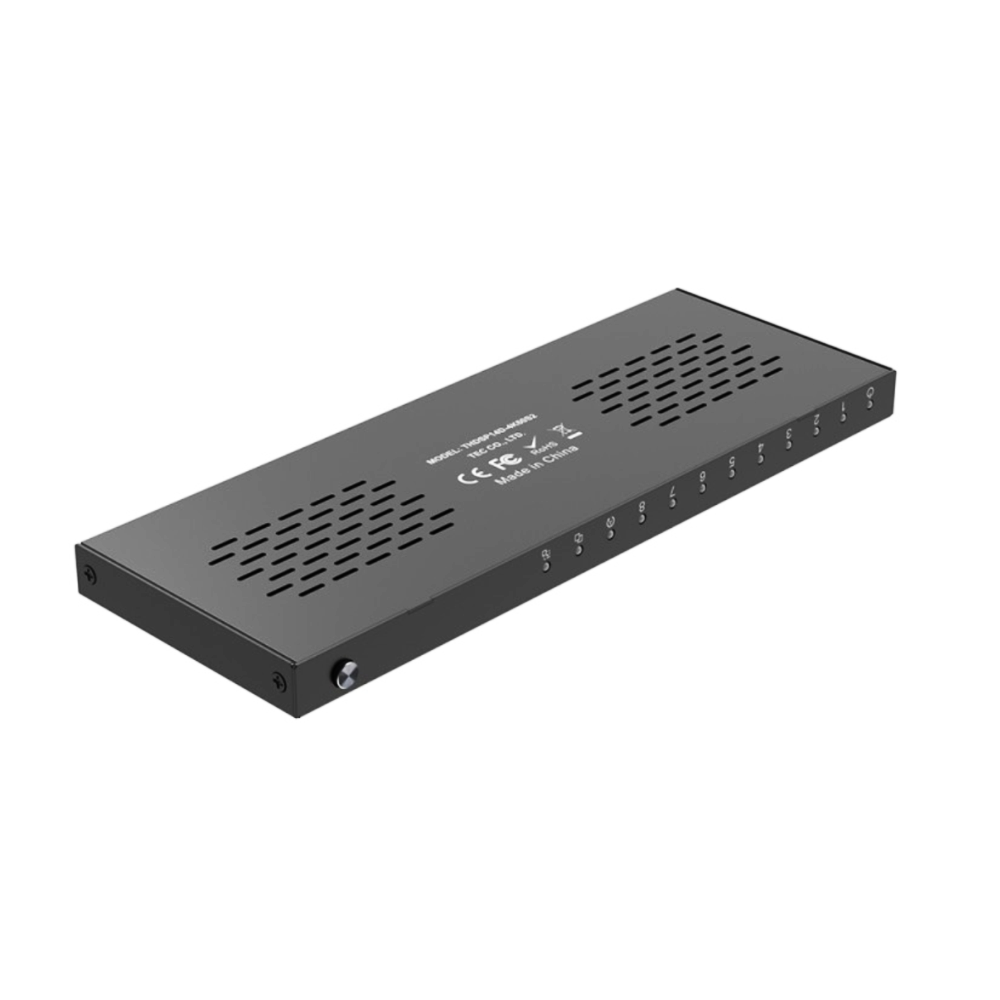

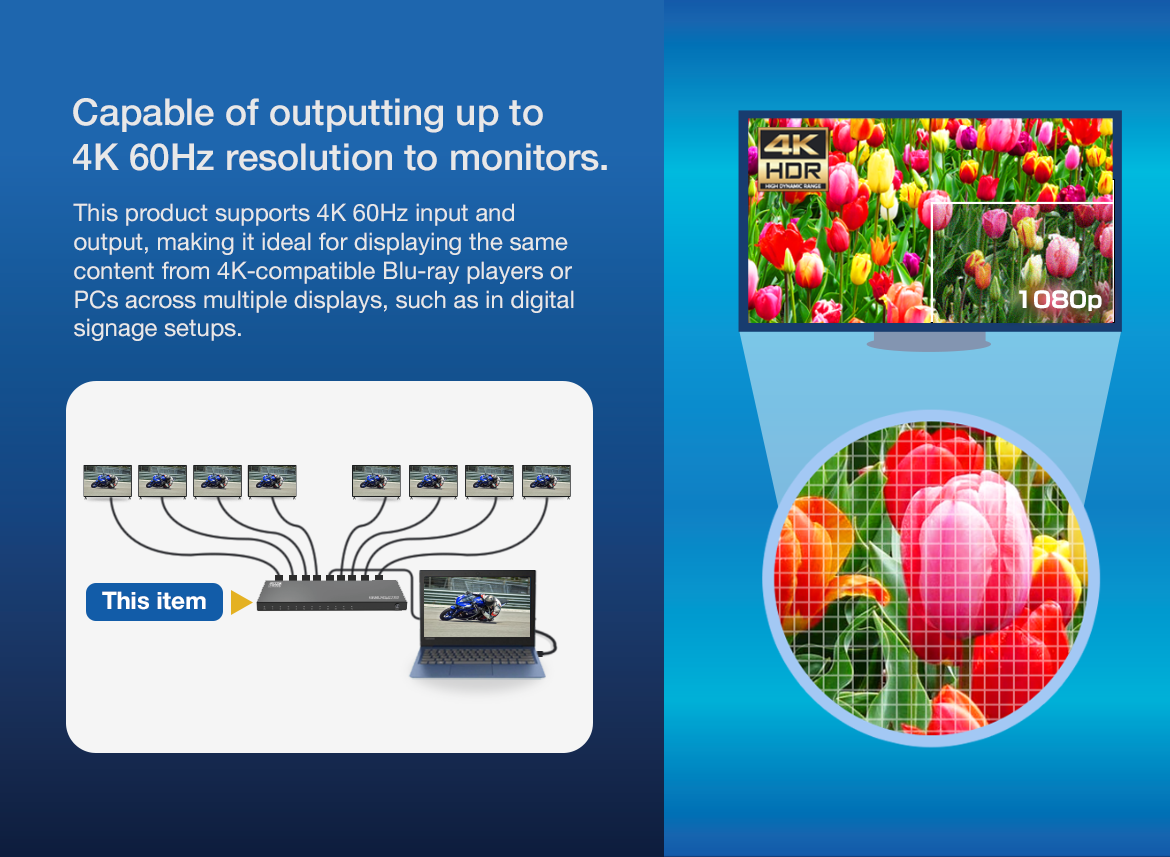

THDSP18-4K60S2 4K60Hz compatible HDMI splitter capable of simultaneous output to 8 monitors
Model No.:
THDSP18-4K60S2
JAN:
4533239033915










| Model No. | THDSP18-4K60S2 |
| JAN | 4533239033915 |
| HDMI Standard | HDMI 2.0 |

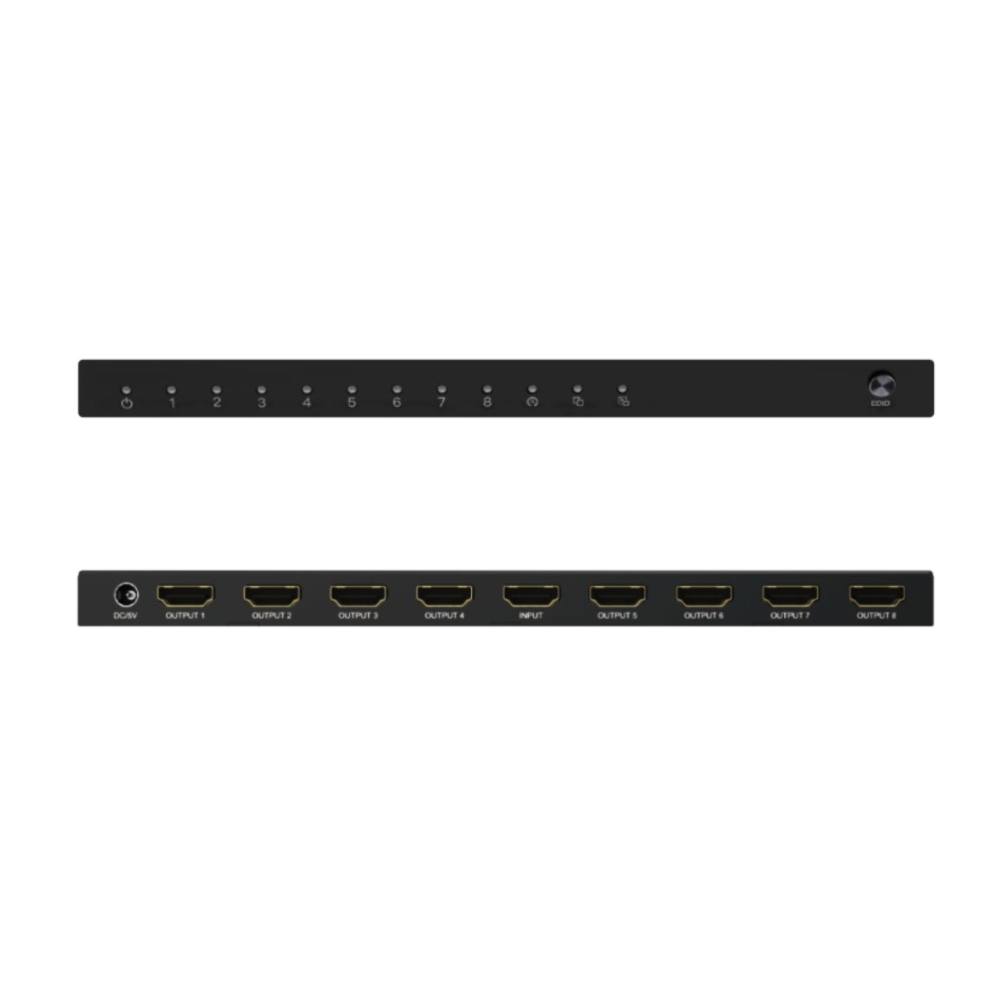

| Input Port | HDMI x1 |
| Output Port | HDMI ×8 (カスケード接続非推奨) |
| HDCP Standard | HDCP 2.2 / HDCP 1.4 |
| Supported HDMI Cable Length | Less than 10 meters |
| Supported Signal Frequency | 50/60Hz |
| Video Signal Transmission Speed | Maximum 18Gbps |

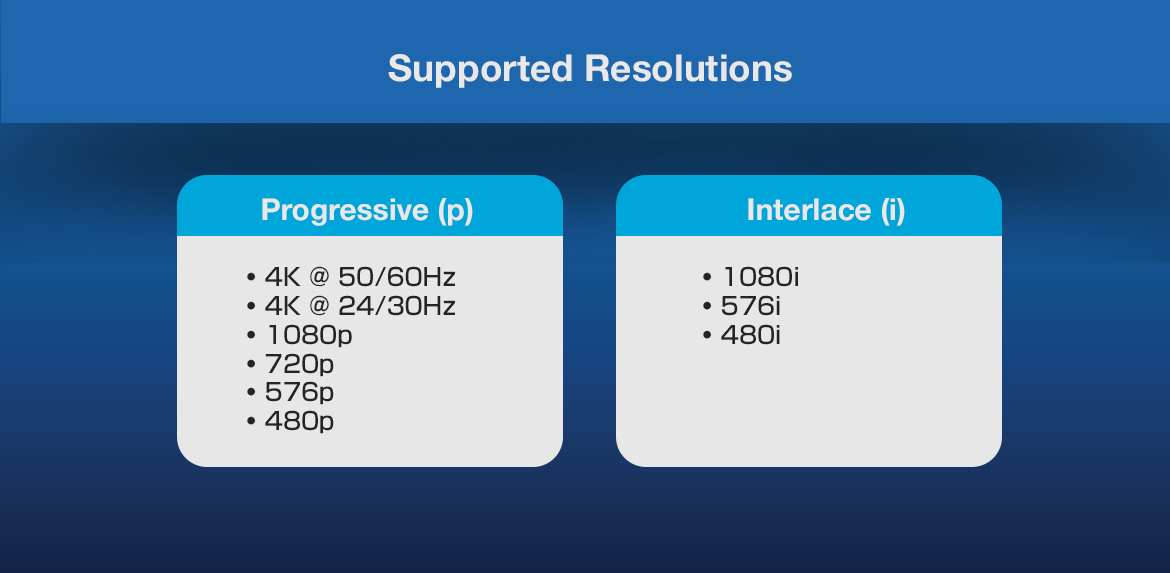

| Supports Interlace(50 & 60Hz) | 480i、576i、1080i |
| Supports Progressive(50 / 60Hz) | 480p、576p、720p、1080p、4K@24/30Hz、 4k@50/60Hz |
| Power Supply | 5V DC |
| Operating Power | 10W |

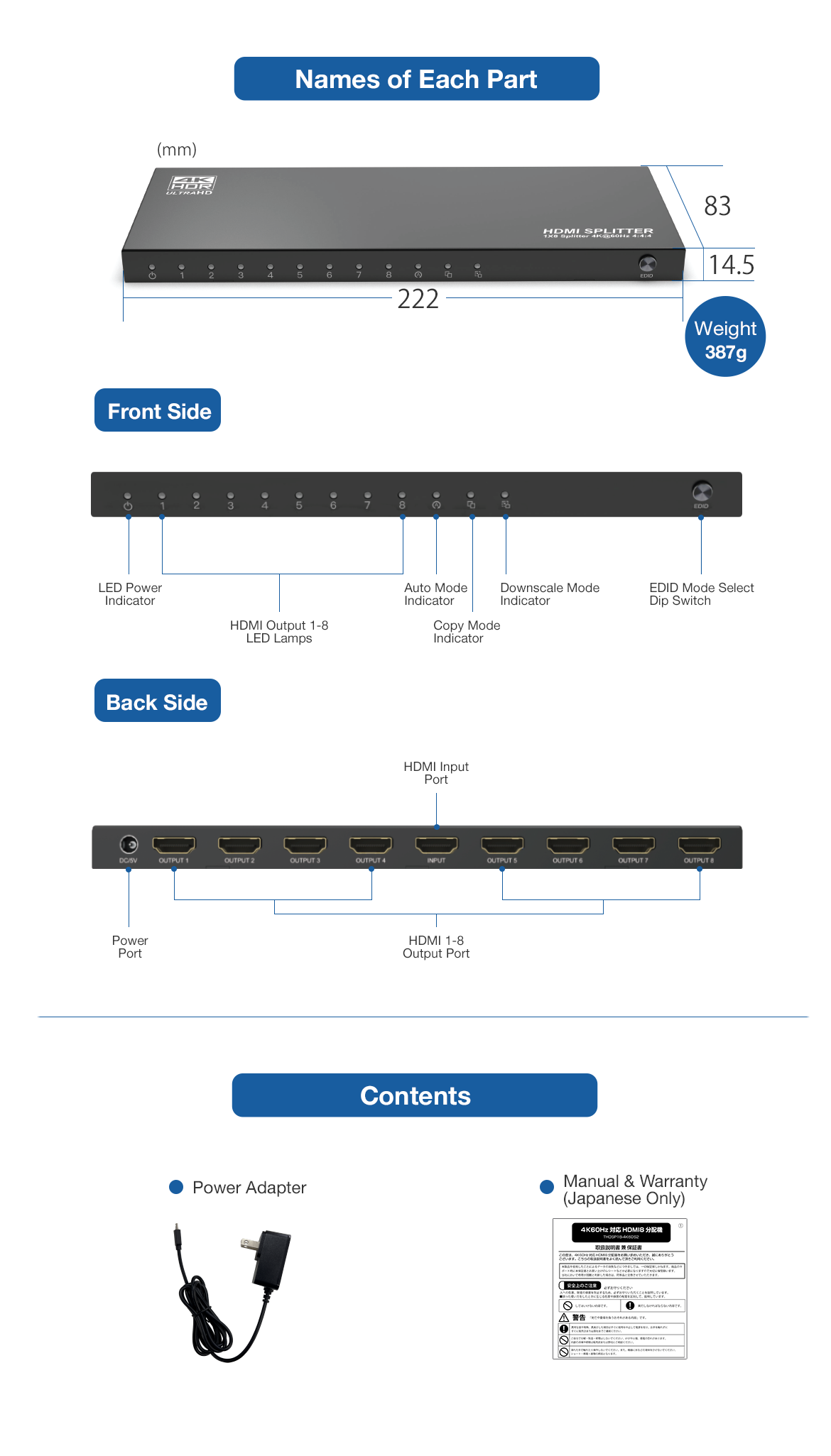

| Dimensions(L×W×H) | 222x83x14.5mm |
| Product Weight | 387g |
※HDMI cables are sold separately.
※To display 4K60Hz HDR standards, compatible devices, monitors, and HDMI cables are required separately.

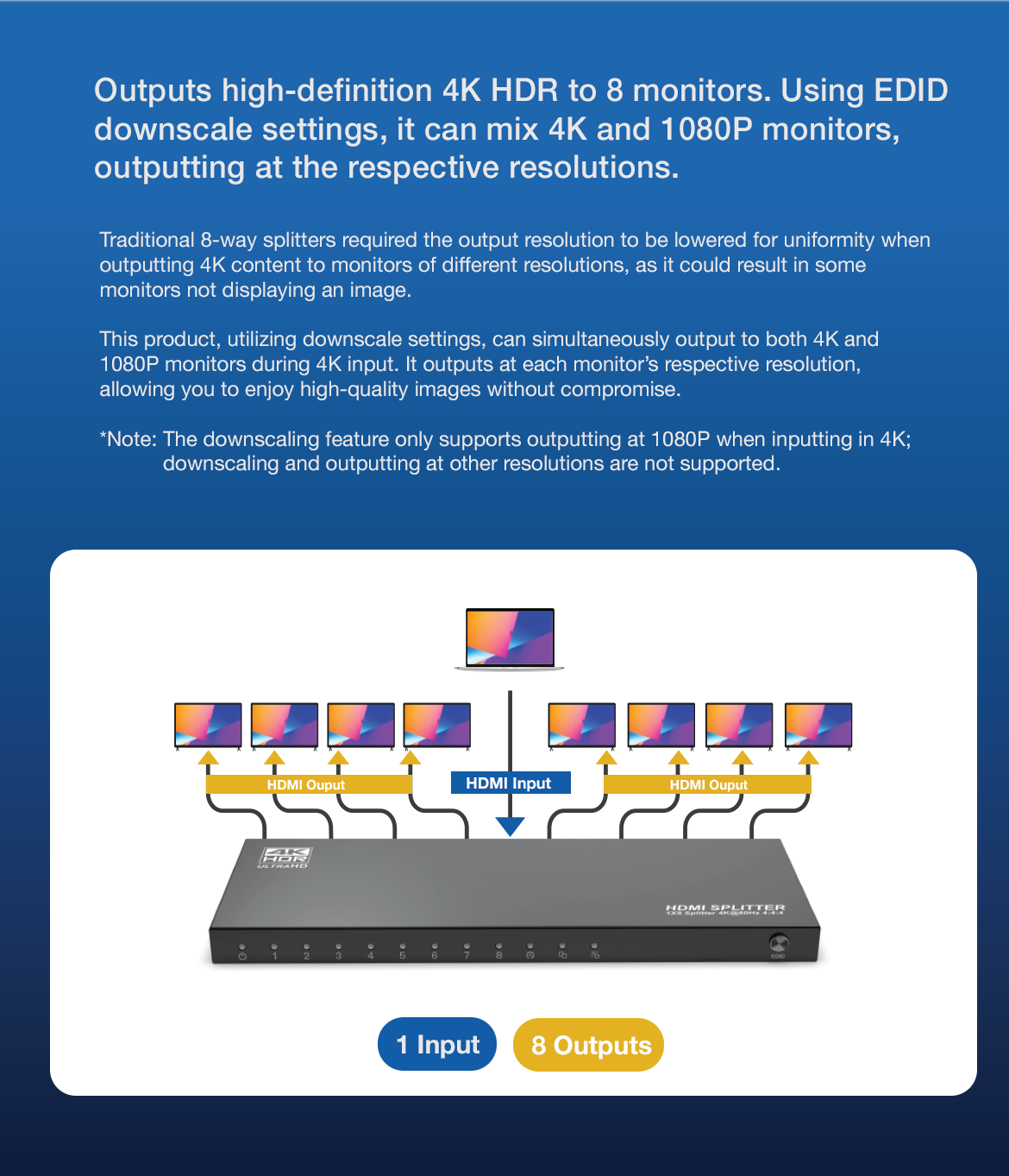

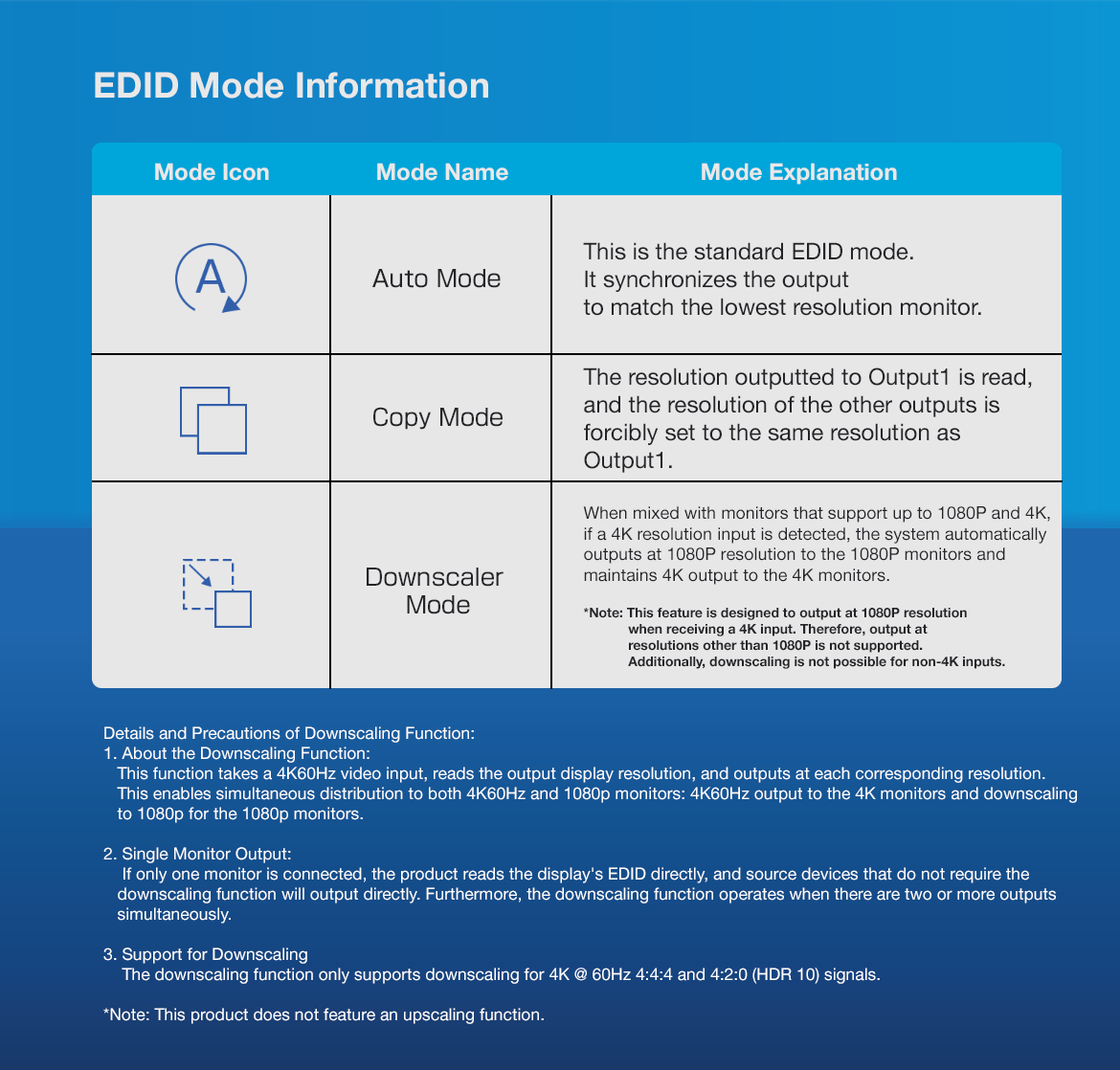

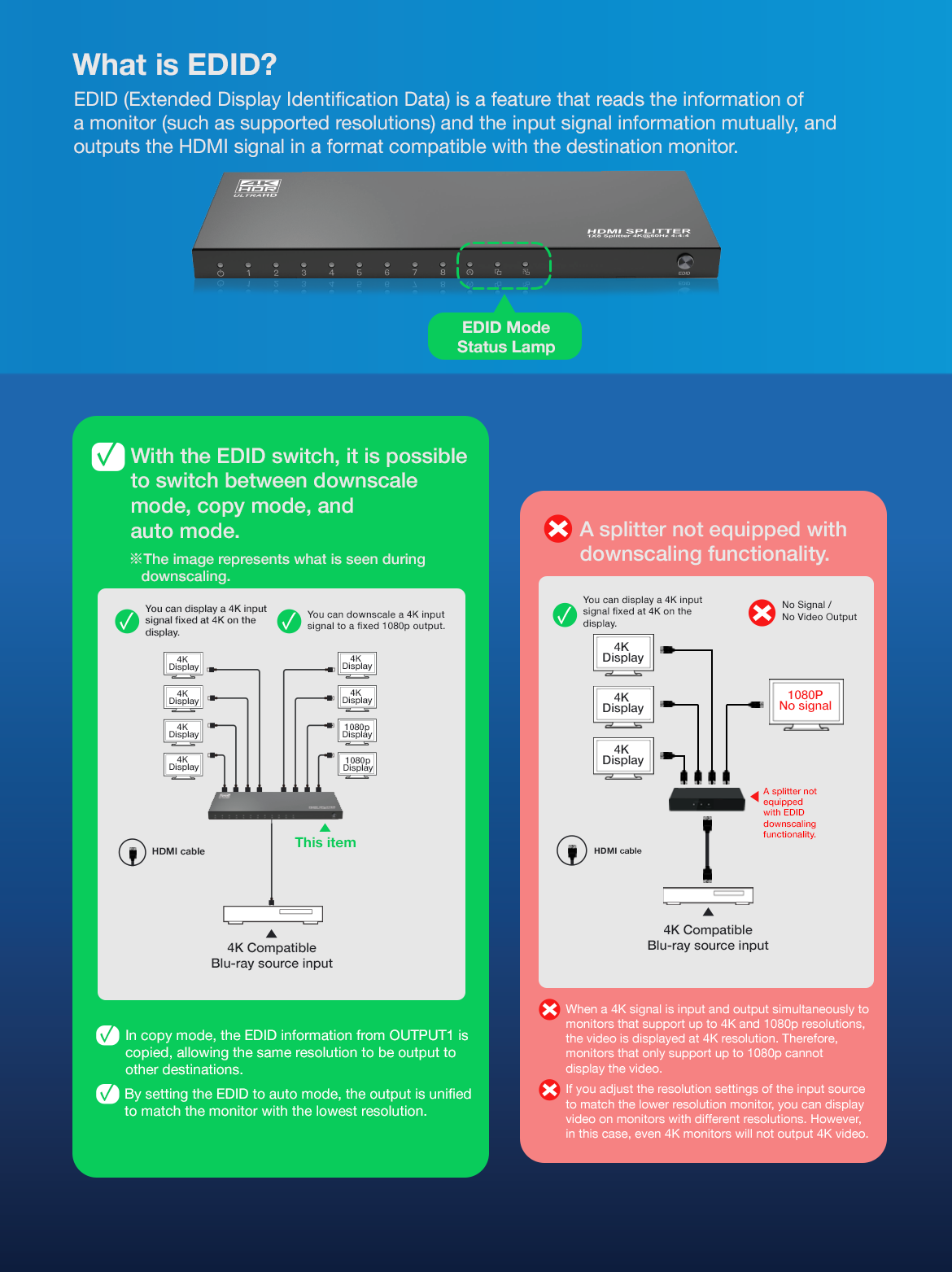

※This product has a downscaling feature, but does not support upscaling.
※The downscaling function only converts 4K signals to 1080p output.
※Cascade connections are not supported.
※This product does not guarantee connection performance with all devices.
※Screen extension on PCs is not supported.
※Supports HDMI cables up to 10m for 1080P and up to 5m for 4K60P.
※Does not support CEC, HEC, or ARC.
