DISCONTINUED
THDSP18 1x8 HDMI Distributor
Model No.:
THDSP18
JAN:
4533239023954
DISCONTINUED

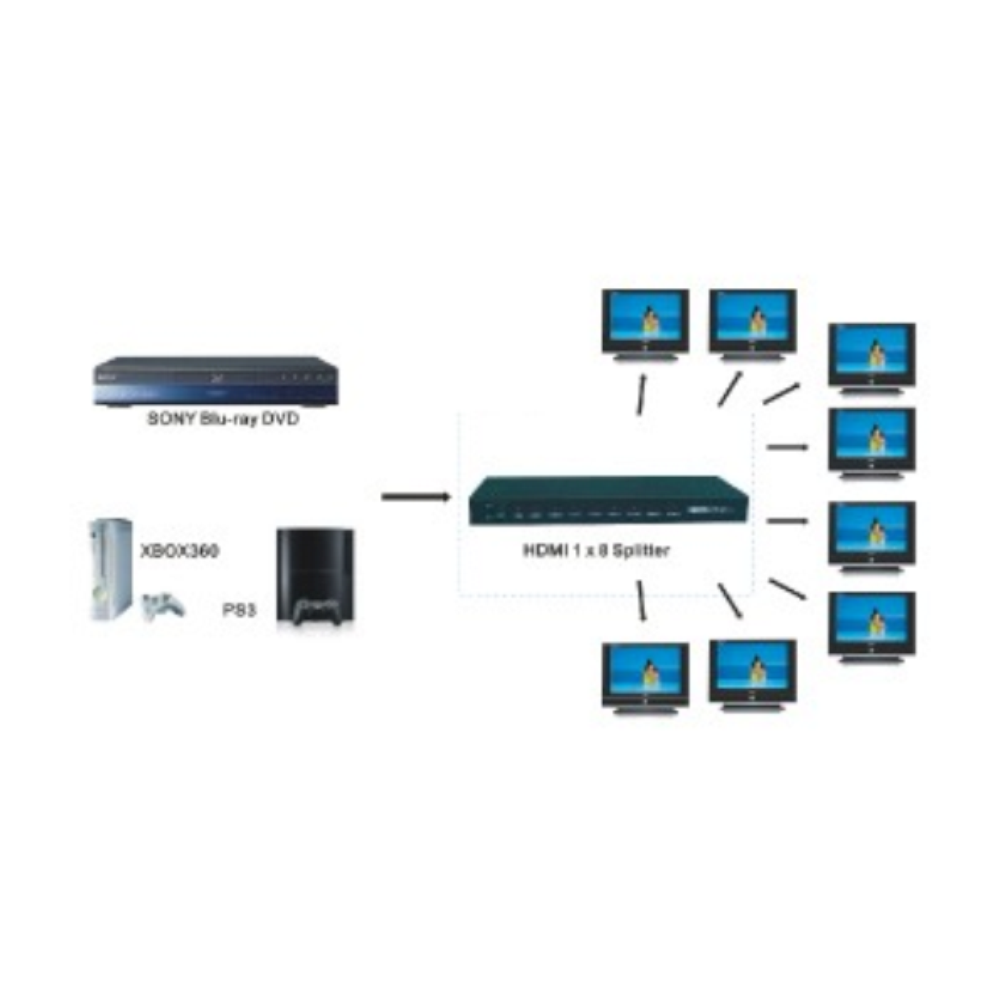

This is an HDMI distributor capable of simultaneously outputting one input source to up to 8 displays.
It can simultaneously distribute the signal from an HDMI source device to up to 8 displays.
It supports resolution distribution up to 1080P.
Please use HDMI cables within 10m.
| Model number | THDSP18 | JAN | 4533239023954 |
| Maximum resolution | 1920×1200,1080P | ||
| Supported resolutions | 480i/576/480p/576p/720p/1080i/1080p | ||
| HDMI version | HDMI 1.3 3D compatible | ||
| EDID delay | Up to 12 seconds ※Varies depending on usage environment | ||
| Input terminal | HDMI 19-pin type | ||
| Output terminal | HDMI 19-pin type | ||
| Power supply | 5V AC adapter | ||
| Body size | Approximately 30*258*111mm | ||
| Weight | Approximately 720g | ||
| Accessories | AC adapter, Japanese manual | ||
| Warranty period | 6 months | ||
