DISCONTINUED
THDSP14D 1x4 HDMI Distributor Full HD 3D
Model No.:
THDSP14D
JAN:
4533239026054
DISCONTINUED
This HDMI distributor supports distribution of 1080p Full HD and 3D video, and can simultaneously output to up to four displays.
Because it uses a digital HDMI connection, the input image is displayed as a clean digital image without any degradation in picture quality, even when distributed.
Each port supports HDMI cables up to 10 meters, making it suitable for video distribution in exhibitions, conference rooms, and similar environments.
It supports HDMI version 1.3b and HDCP 1.1, and is compatible with Full HD / 3D video display.

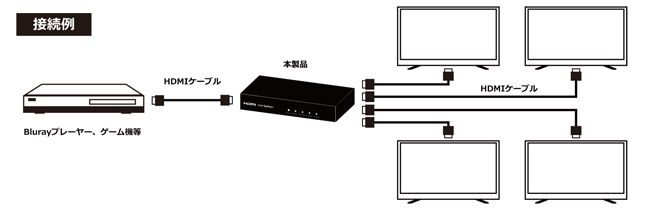

Simultaneously outputs HDMI video and audio to up to four TVs with HDMI input, supporting up to 1080p, 3D video, and HDCP.
| Model number | THDSP14D | JAN | 4533239026054 |
| Input terminal | HDMI | ||
| Output terminal | HDMI | ||
| Input resolution | 480i/576i/480p/576p/720p/1080i/1080P/1920x1200 | ||
| Output resolution | 480i/576i/480p/576p/720p/1080i/1080P/1920x1200 | ||
| HDMI version | 1.3b HDCP1.1 | ||
| Supported audio format | LPCM/Dolby Digital Plus/Dolby TrueHD/DTS-HD Hight Resolution Audio/DTS-HD Master Audio | ||
| Data transfer speed | 2.25Gbps | ||
| Power supply | Included AC adapter | ||
| Body size | 155 x 69 x 23mm (excluding protrusions) | ||
| Weight | Approximately 270g | ||
| Accessories | AC adapter, instruction manual and warranty card | ||
| Warranty period | 12 months | ||
