THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function

Model No.:

THDSP12X2-4K60S2

JAN:

4533239033830
<span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span>
<span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span> thumbnail 1 <span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span> thumbnail 2 <span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span> thumbnail 3 <span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span> thumbnail 4 <span>THDSP12X2-4K60S2 4K60Hz HDR Compatible HDMI Splitter with Downscaling Function</span> thumbnail 5
THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



THDSP12X2-4K60S2



Model No.THDSP12X2-4K60S2
JAN4533239033830
HDMI VersionHDMI 2.0

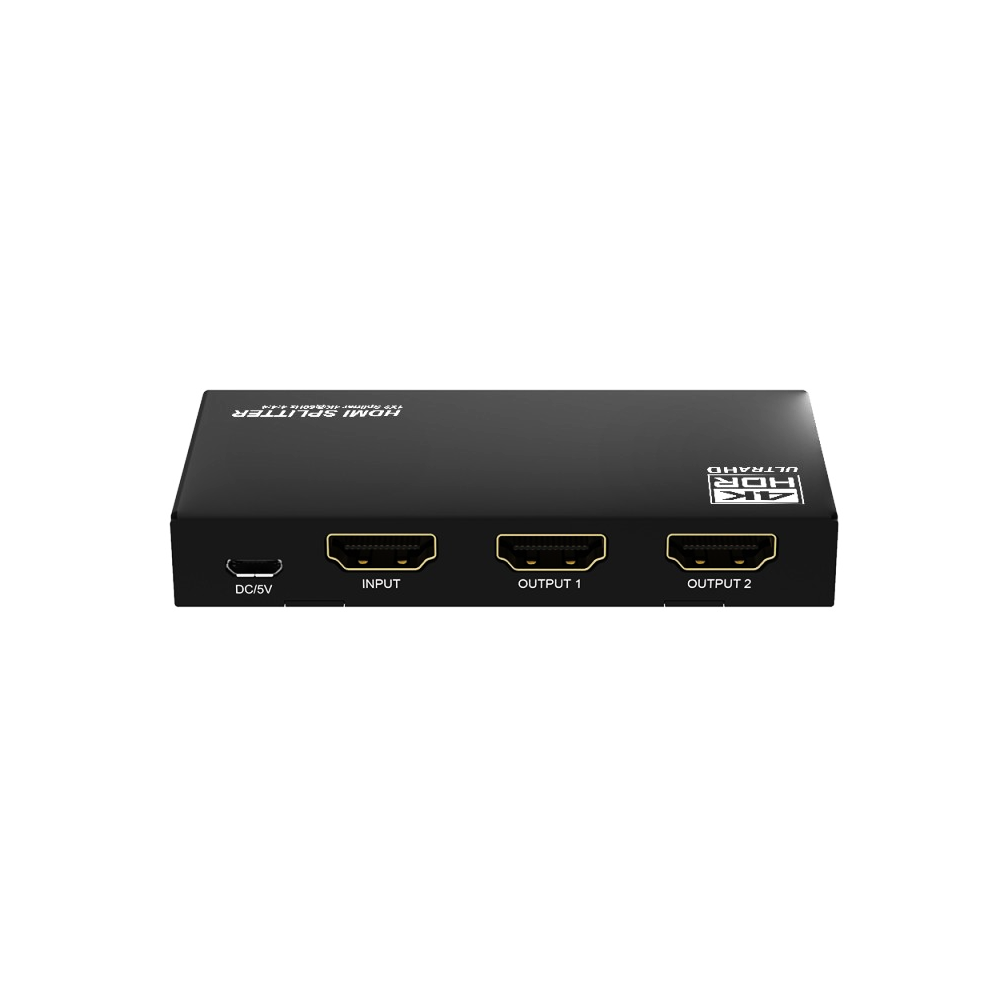

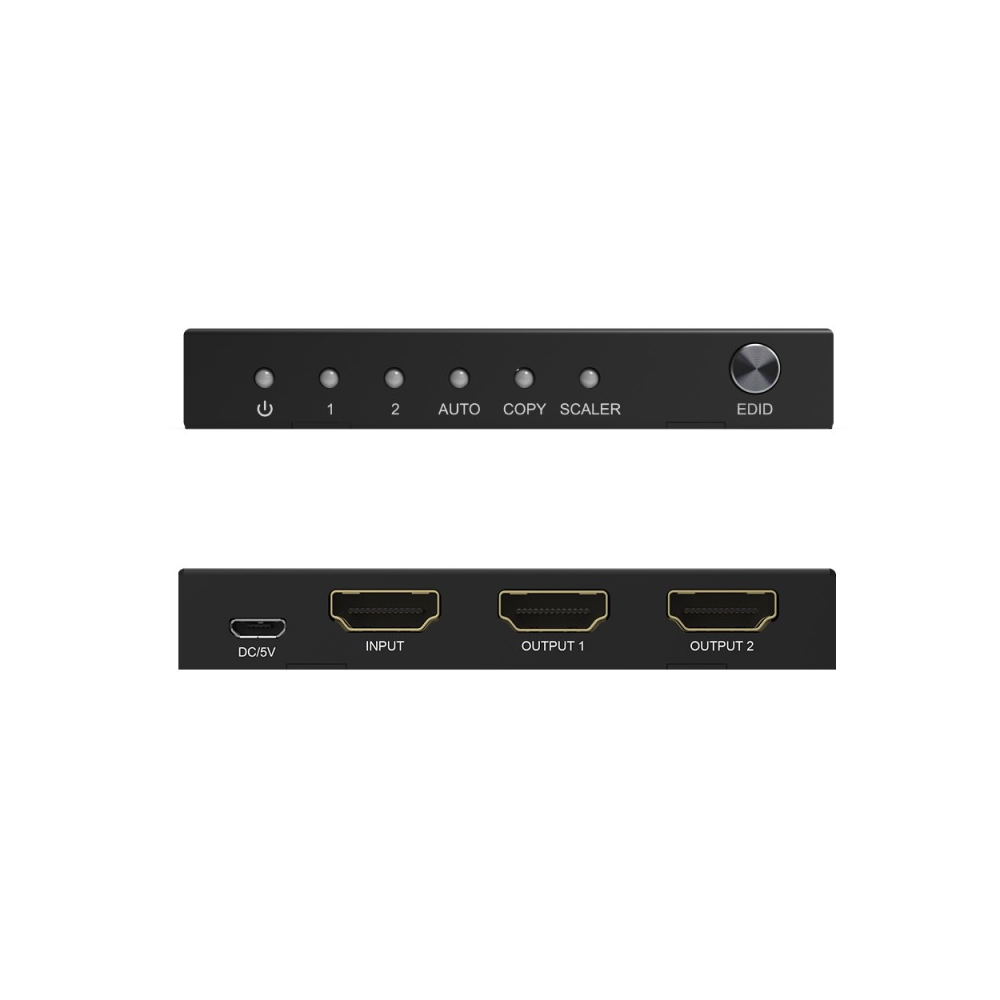

Input PortHDMI x1
Output PortsHDMI x2
HDCP VersionHDCP 2.2 / HDCP 1.4
Supported Signal Frequency50/60Hz
Video Signal Transmission SpeedMaximum 18Gbps

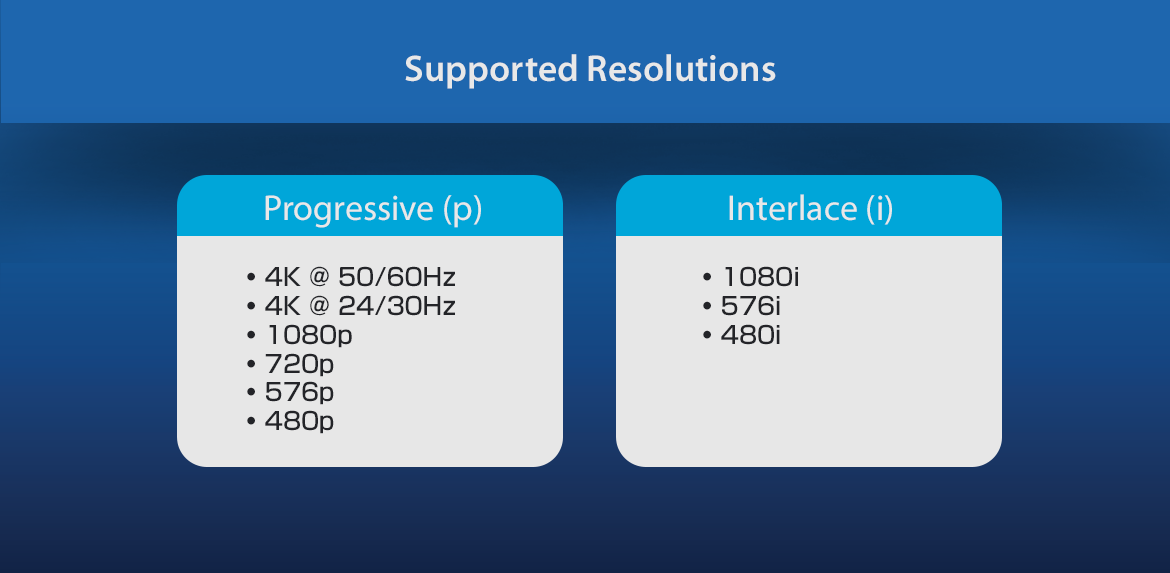

Interlace Scan Compatible（50 & 60Hz）480i、576i、1080i
Progressive Scan Compatible（50 / 60Hz）480p、576p、720p、1080p、4K@24/30Hz、 4k@50/60Hz
Power Supply5V DC
Operating Power5W

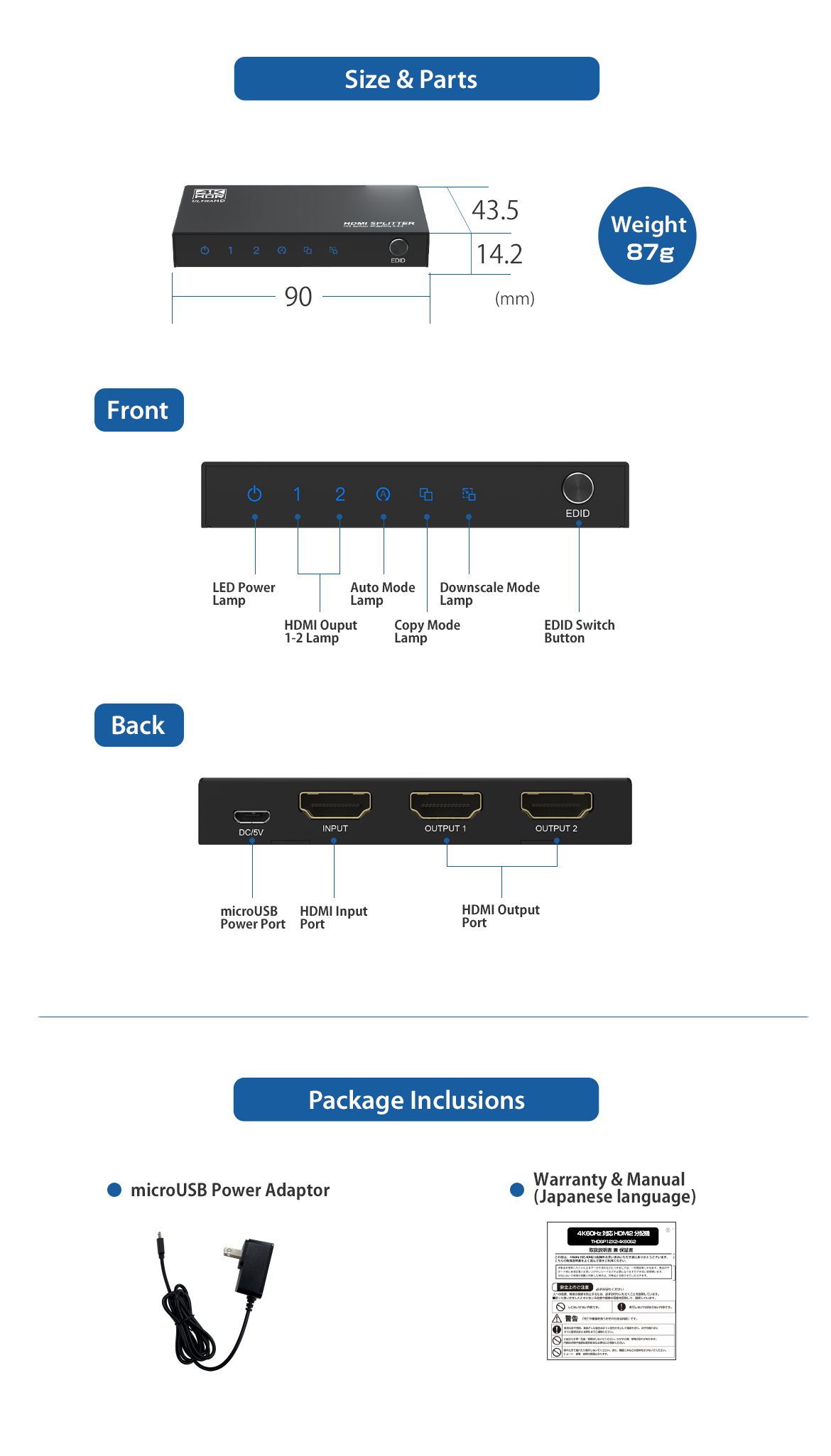

Product Size Dimension（L×W×H）90x44x14 (mm)
Product Weight87g
*HDMI cables are sold separately.

*When displaying the 4K60Hz HDR standard, compatible devices, monitors, and HDMI cables are required separately.

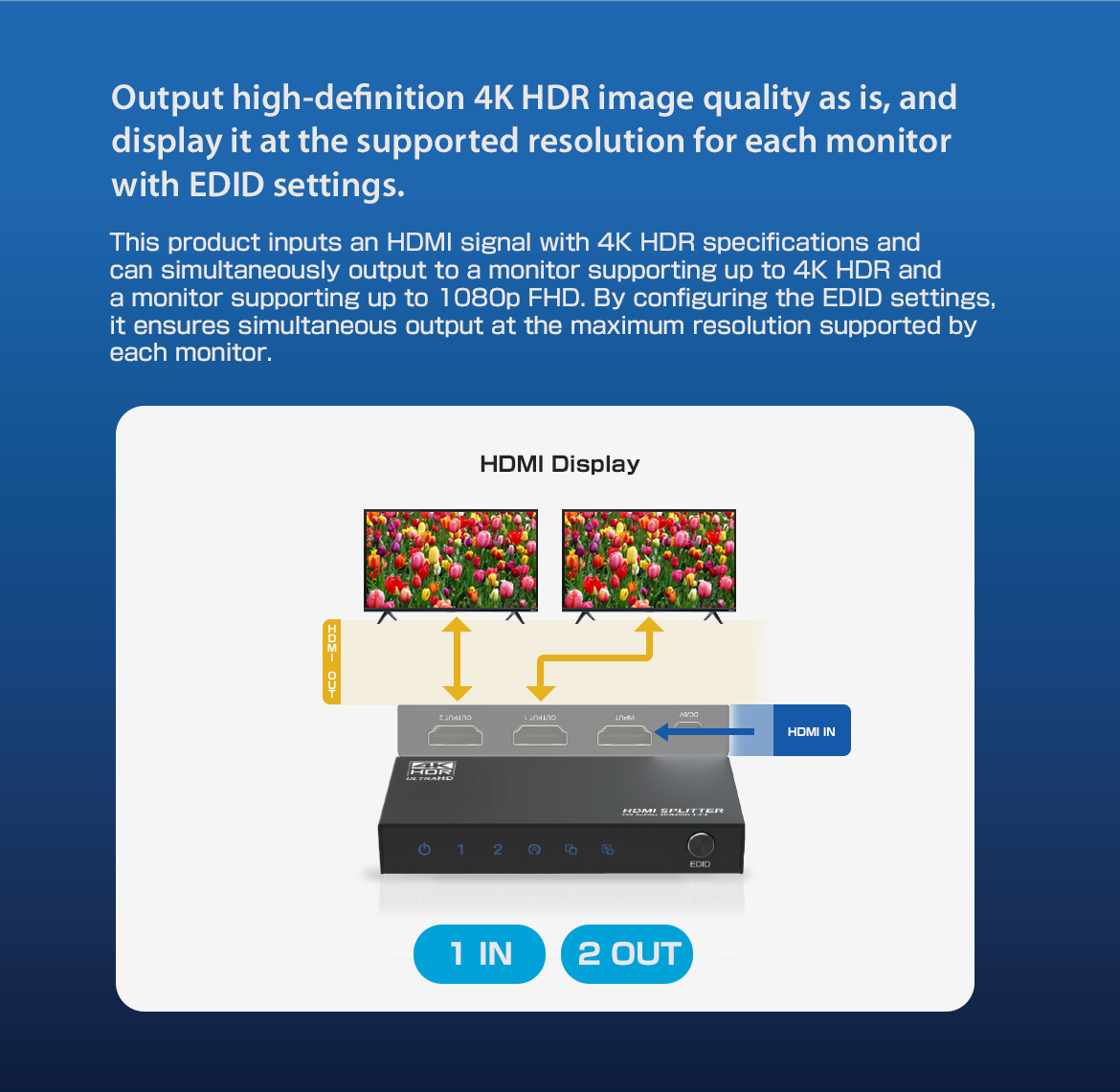

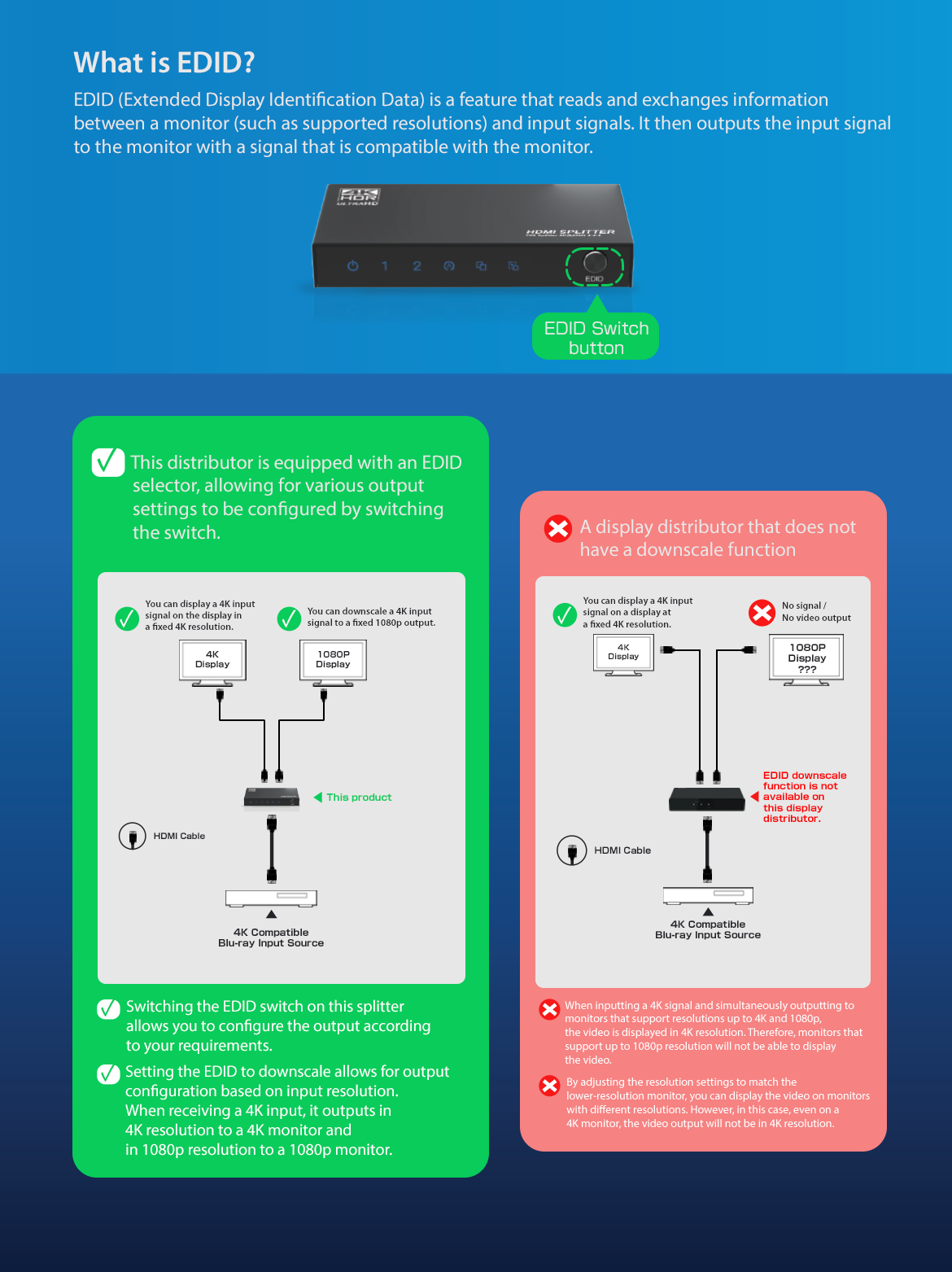

*This product has a downscale function, but does not have an upscale function.

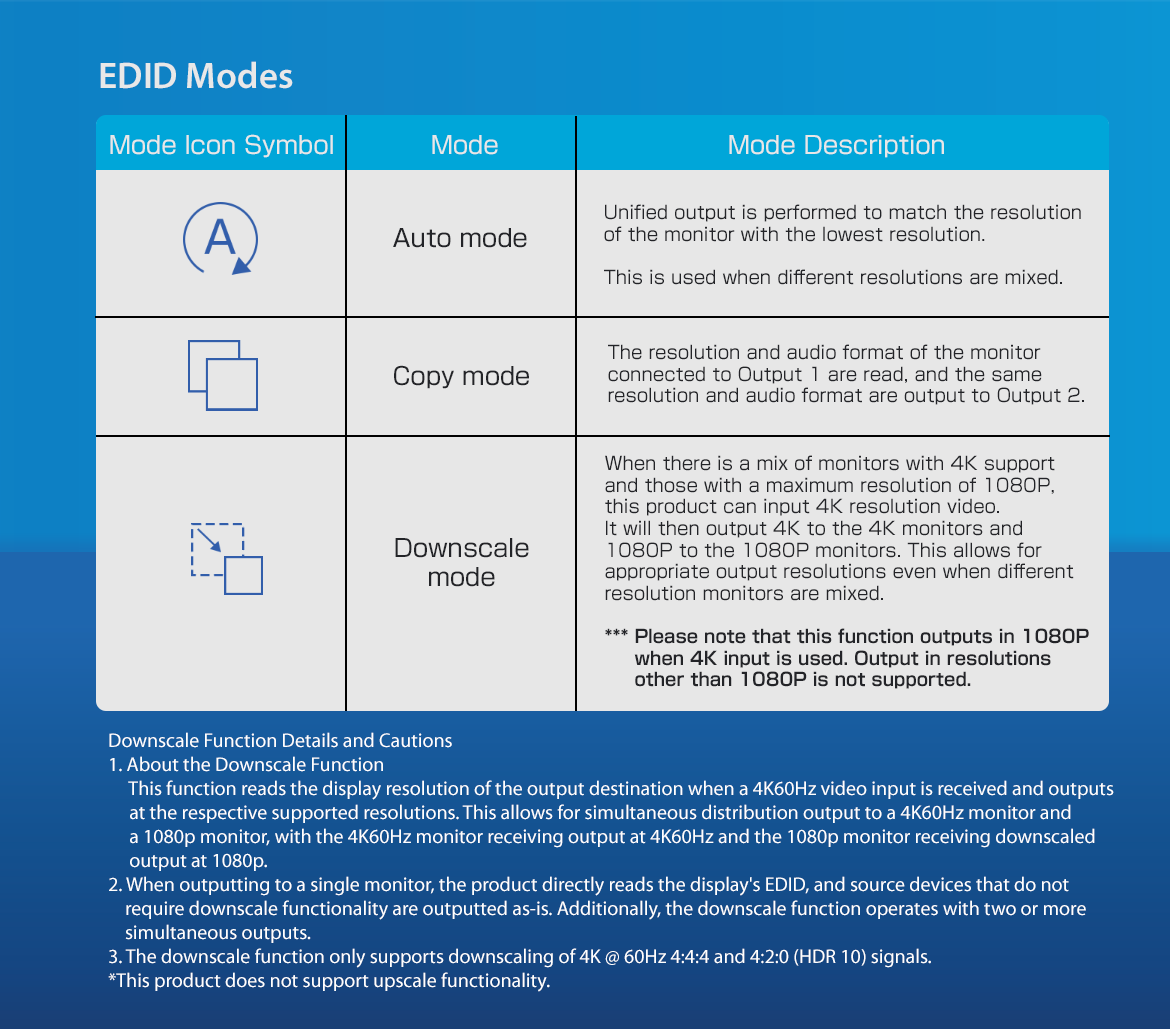

*Downscaling is a function that outputs only 1080p when the input signal is 4K.

*Cascade connection is not supported.

*This product does not guarantee operation with all devices.

*Screen extension from PC is not supported.

*Supports HDMI cables up to 10m for 1080P and up to 5m for 4K60P.

*CEC, HEC, and ARC are not supported.
