DISCONTINUED

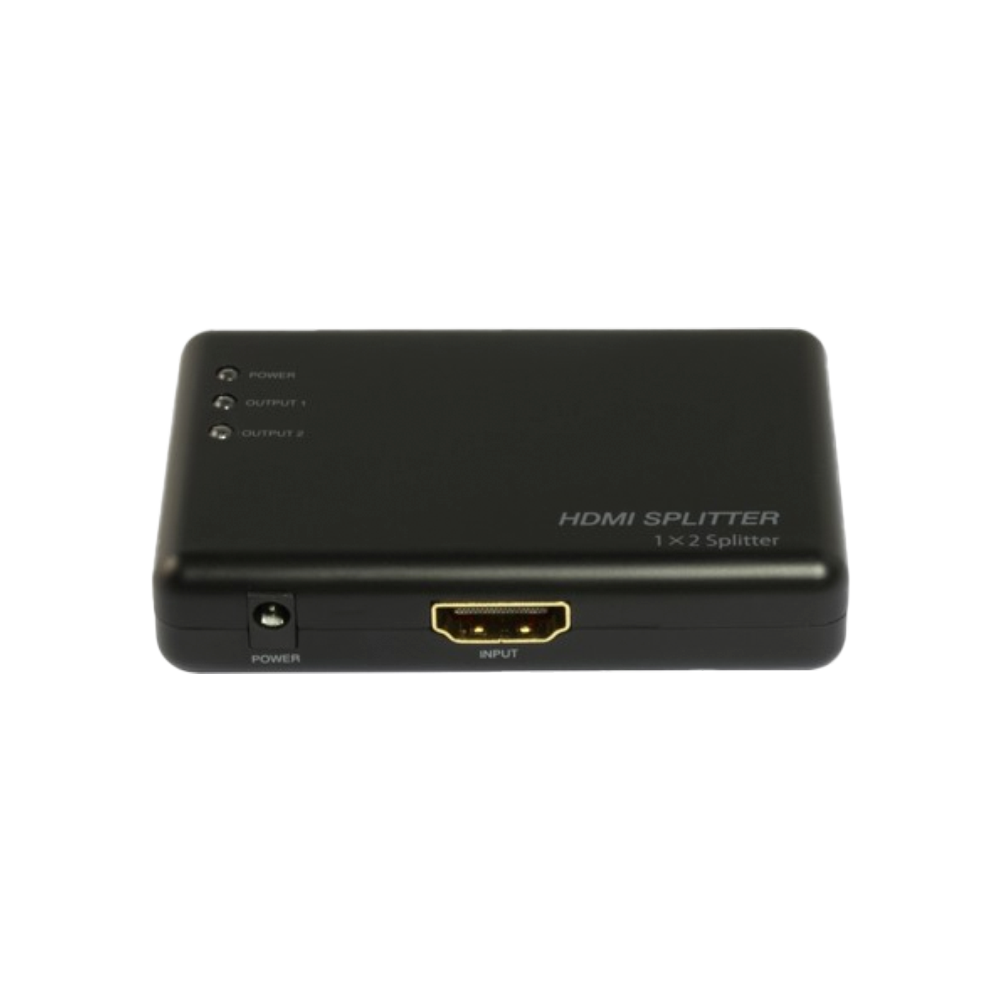

THDSP12X2 HDMI Distributor
Model No.:
THDSP12X2
JAN:
4533239027259
DISCONTINUED
It can simultaneously output one HDMI input to two HDMI displays, such as high-definition TVs and projectors equipped with HDMI input.
It supports resolutions up to 1080P and is also compatible with HDCP. It supports uncompressed audio as well as audio formats such as DTS Digital and Dolby Digital.
It allows simultaneous HDMI output from a single DVD player, game console, or other HDMI source device to two display devices, and also supports the distribution and display of 3D video.
| Model number | THDSP12X2 | JAN | 4533239027259 |
| Frequency bandwidth | 2.25Gbps/225MHz | ||
| HDMI version | 1.3b HDCP1.1 | ||
| Input terminal | HDMI19-pin type X 1 | ||
| Output terminal | HDMI19-pin type X 2 | ||
| Supported resolutions | 480i/576i/1080i/480p/576p/720p/1080p | ||
| Supported audio format | LPCM/DTS Digital/DTS-HD and Dolby True HD | ||
| Applicable cable length | Up to each port 10m (depends on cable quality) | ||
| Operating temperature | 0˚C ~ 70˚C | ||
| Storage humidity | 5％~90% RH | ||
| Power supply | 5V AC adapter | ||
| Body size | Approximately 75 x 50 x 15mm (excluding protrusions) | ||
| Body weight | Approximately 45g | ||
| Accessories | AC adapter, instruction manual and warranty card | ||
※ Not compatible with HDMI CEC.
