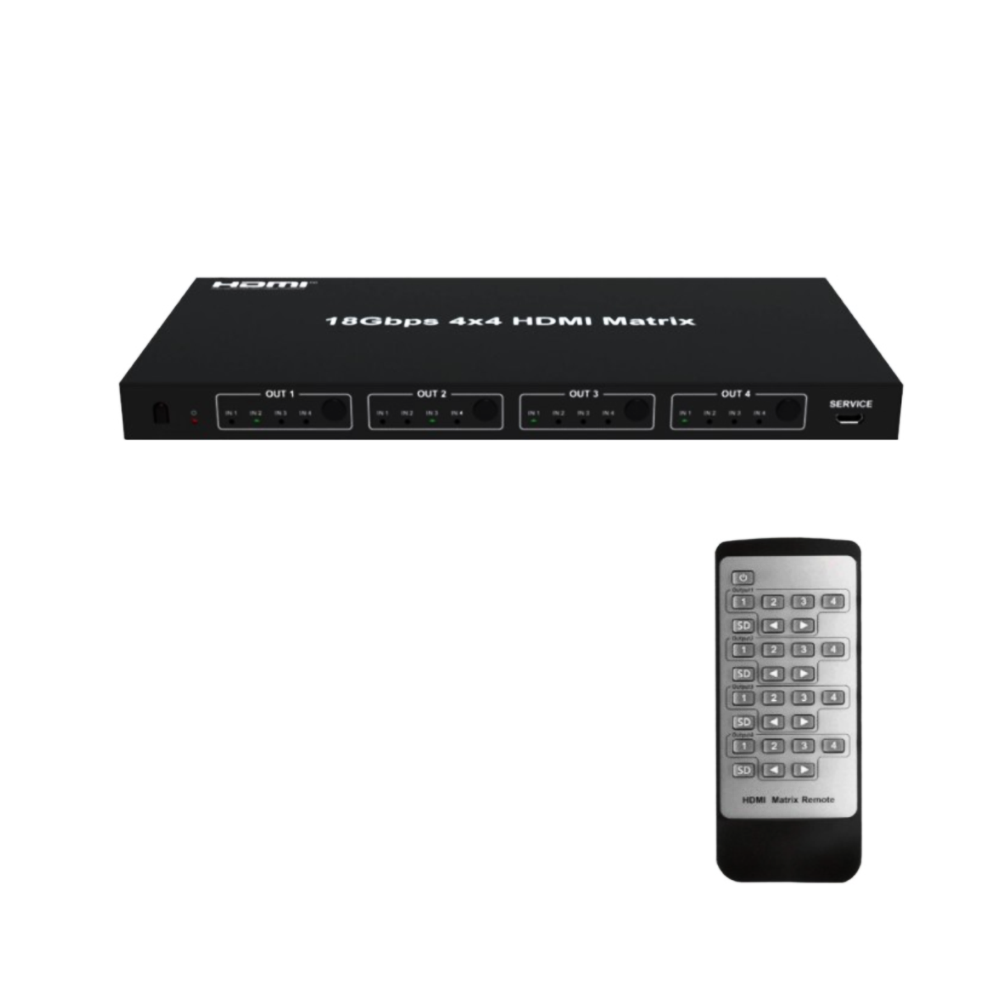

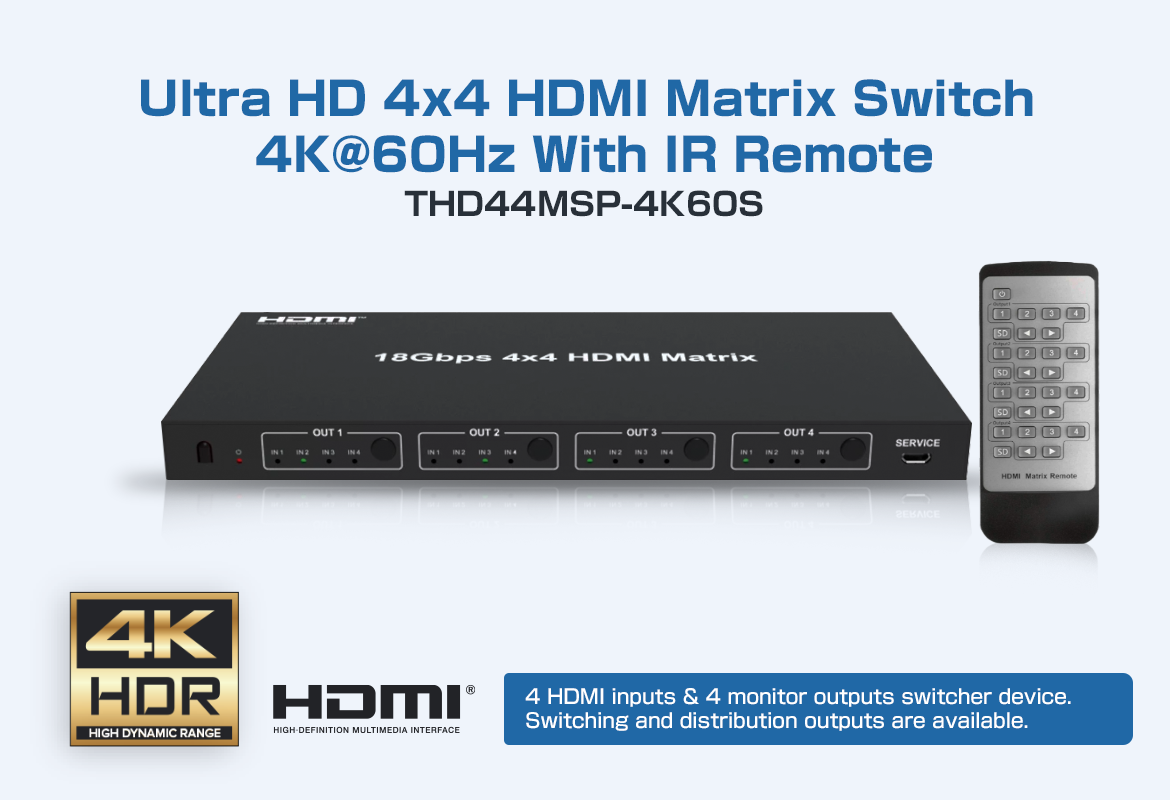

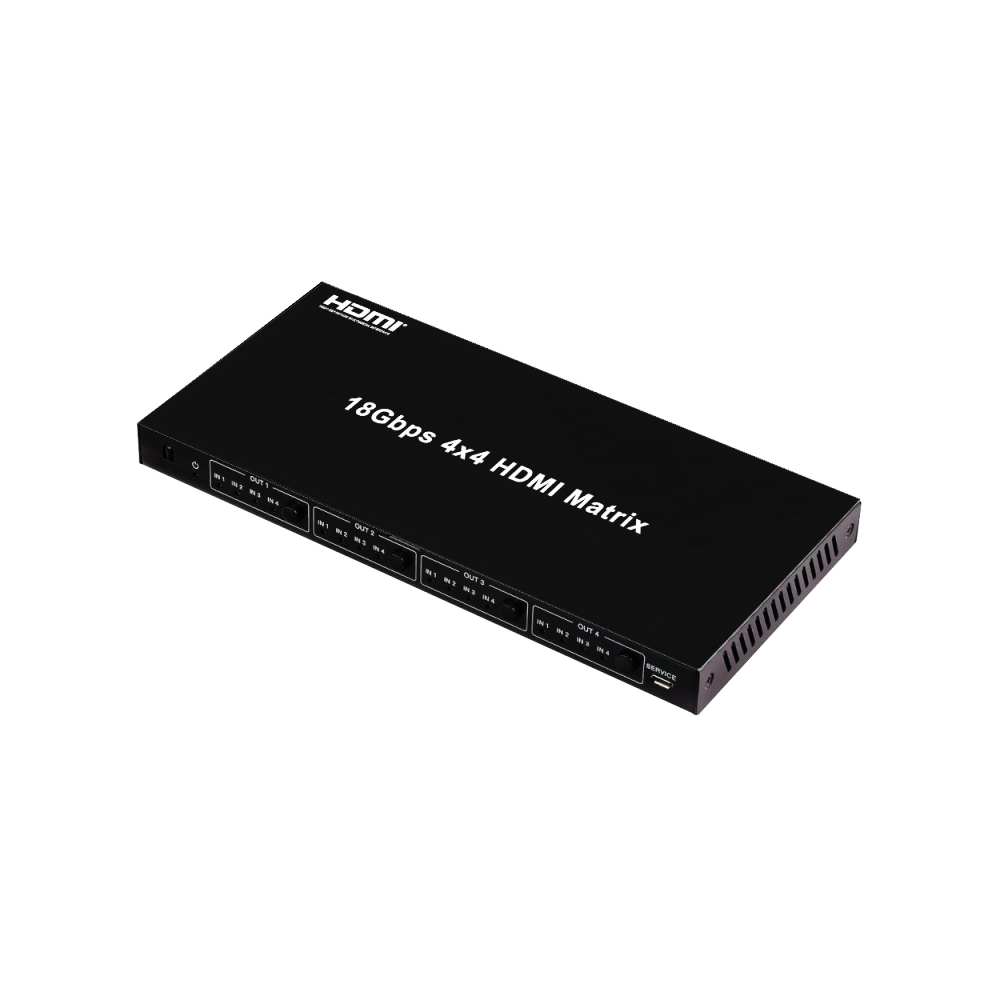

THD44MSP-4K60S Ultra HD 4x4 HDMI Matrix Switch 4K @60Hz With IR Remote
Model No.:
THD44MSP-4K60S
JAN:
4533239033328
| Model No. | THD44MSP-4K60S |
| JAN | 4533239033328 |
| HDCP | HDCP2.2 / 1.x |
| Transmission speed | 594MHz each / 18Gbps max. combined |
| Supported resolutions | 480i〜1080p 50 / 60Hz、4K2K@24 / 30Hz、4K2K@60Hz |
| Color space | RGB、YCbCr 4:4:4 / 4:2:2、YUV 4:2:0 |
| Color depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| Supported HDMI audio formats | LPCM 7.1ch、Dolby TrueHD、DTS-HD Master Audio |

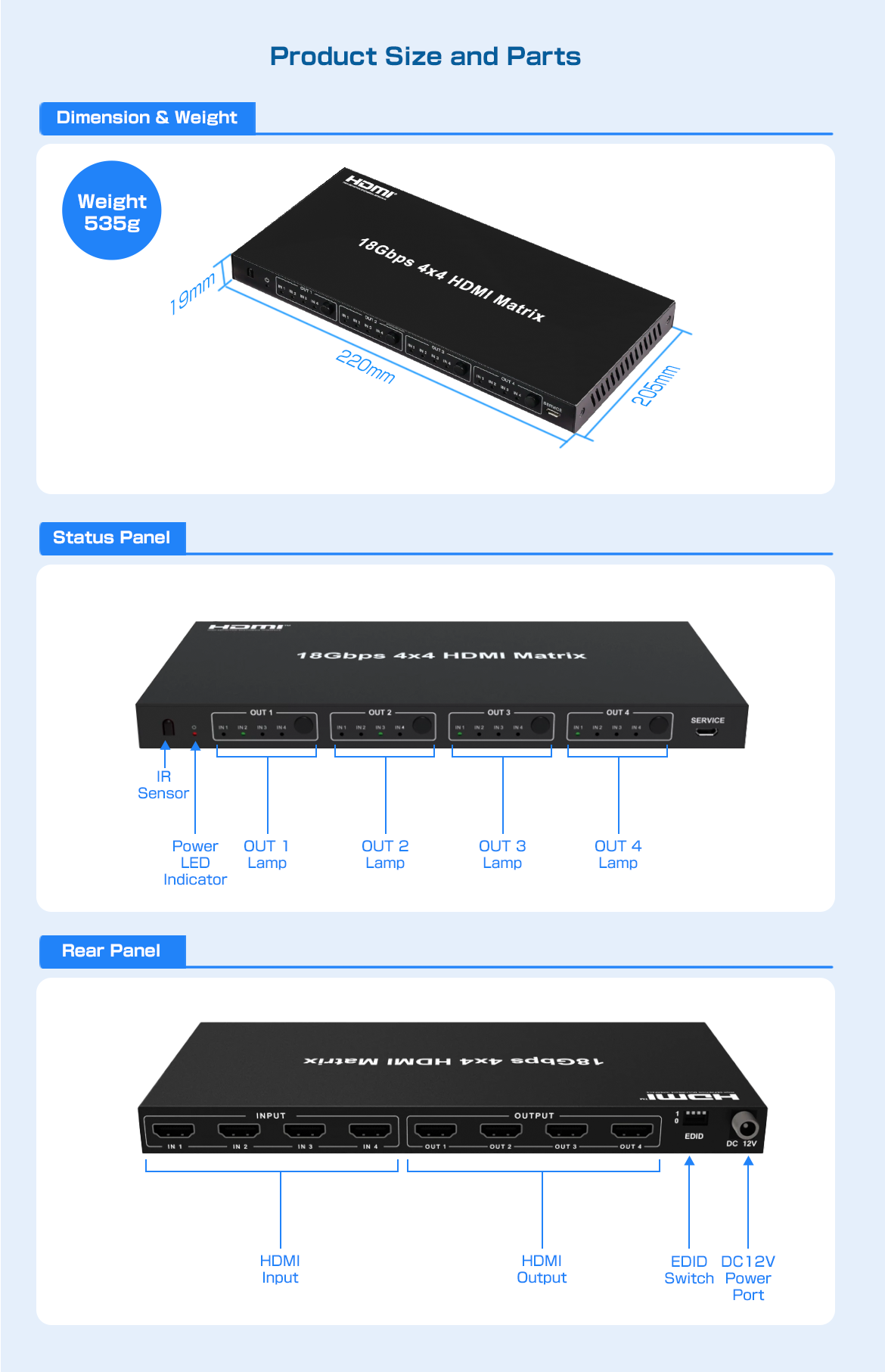

| Dimension size | 220mm(W) × 205mm(D) × 19mm(H) |
| Weight | Approx. 535g |
| Power Supply | Input: AC100-240V 50 / 60Hz Output: DC12V / 2.5A |

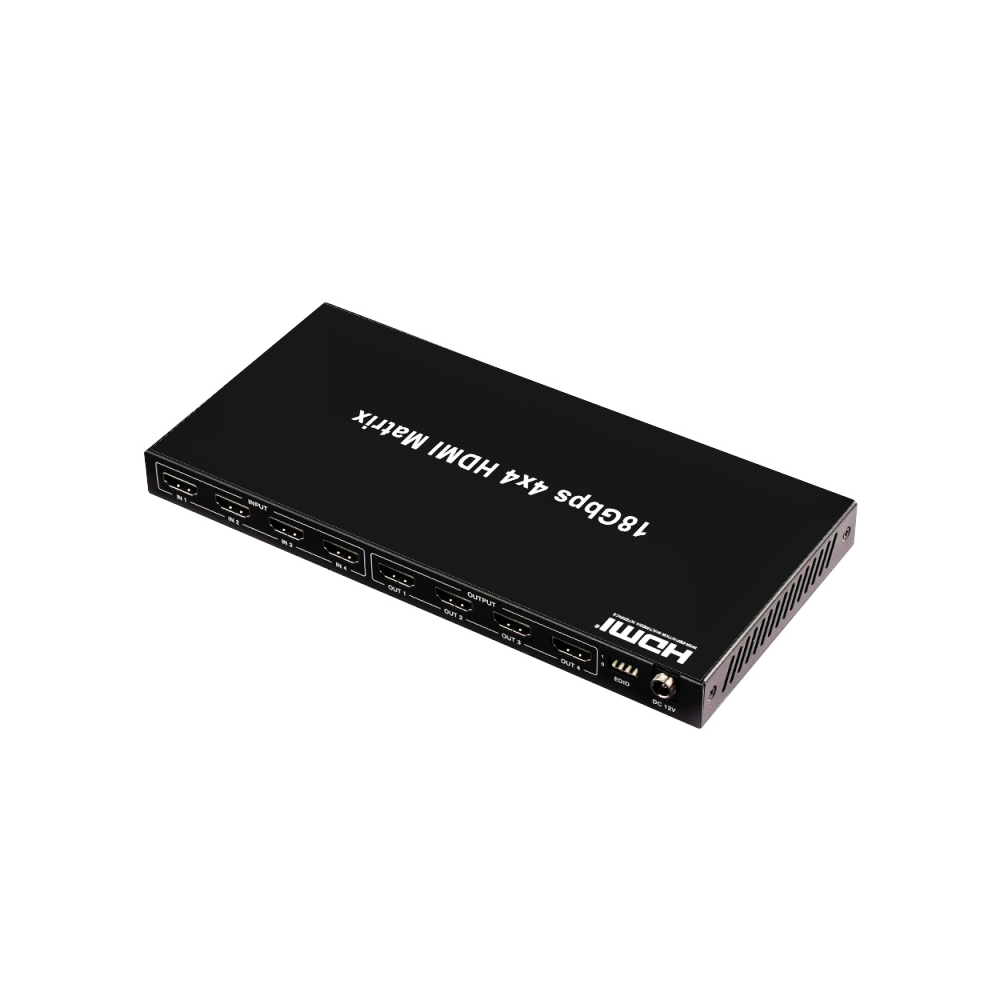

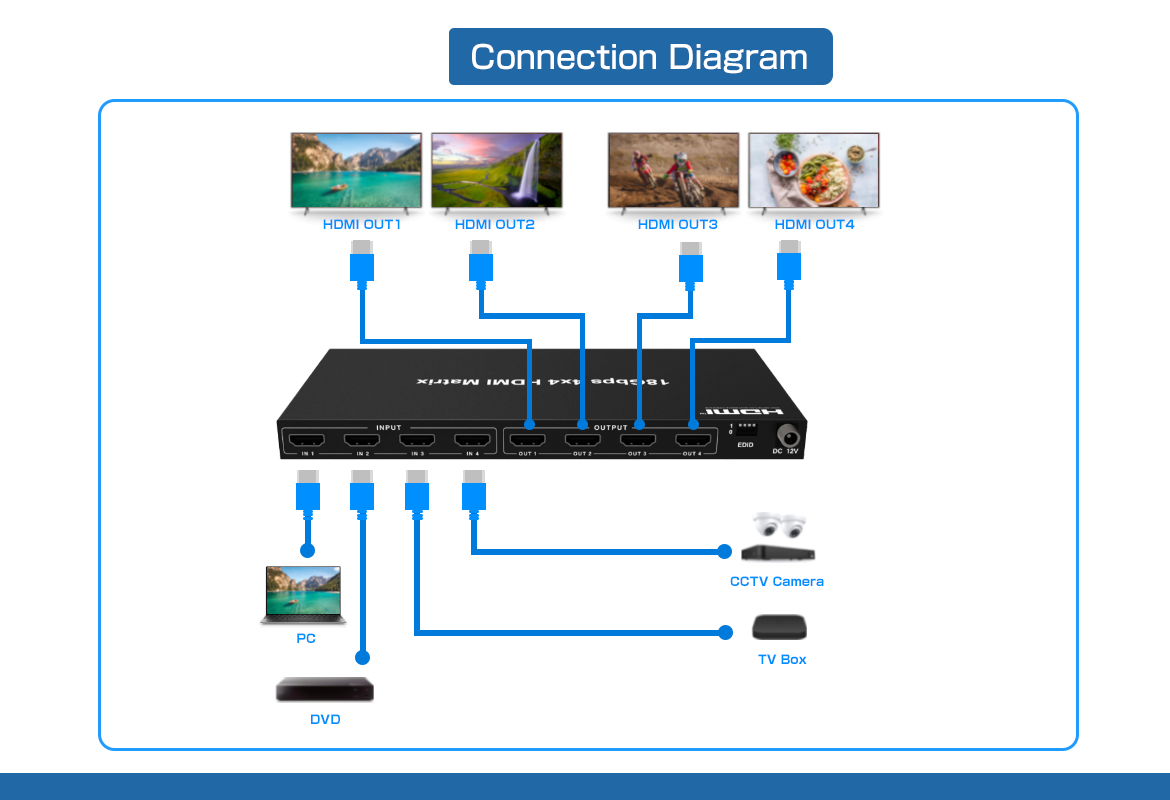

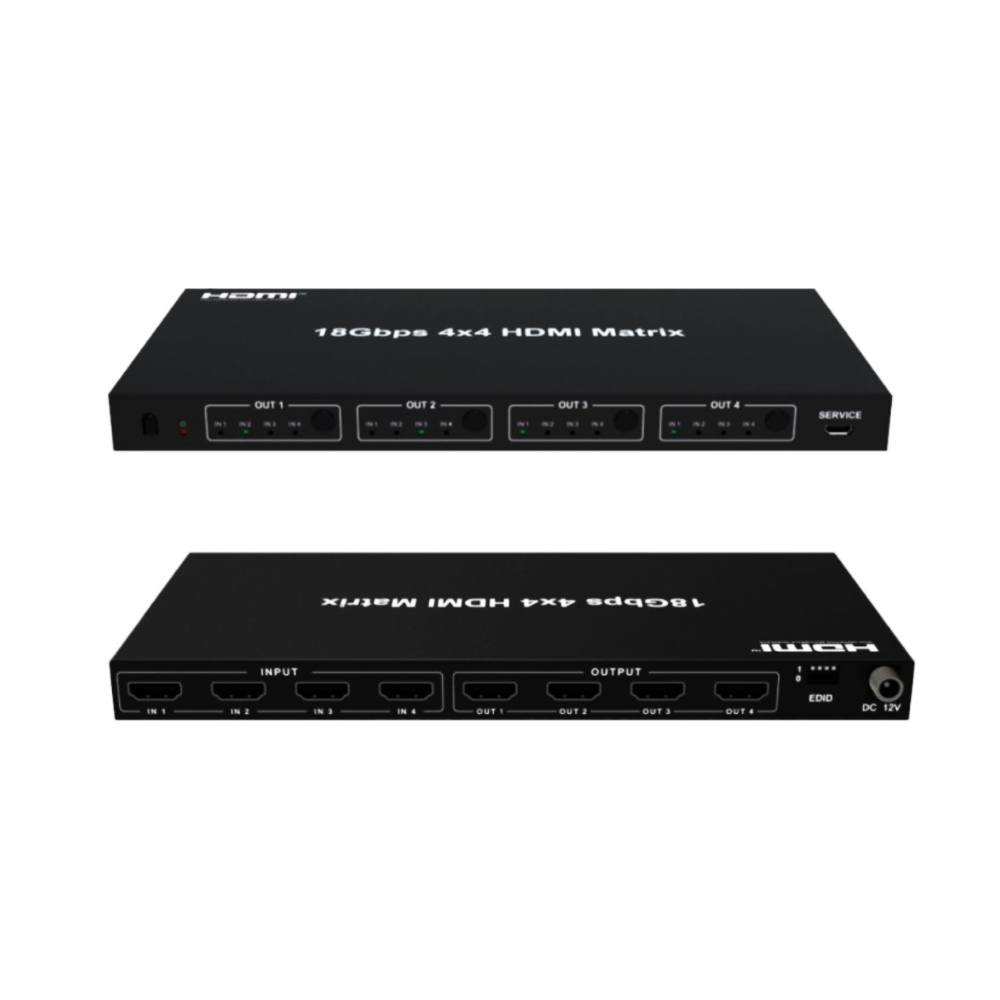

Connection ports
| Input | HDMI TypeA 【19 Pin Female】× 4 IR Receiver × 1 microUSB × 1（This port is unuseable） |
| Output | HDMI TypeA 【19 Pin Female】× 4 |
