DISCONTINUED

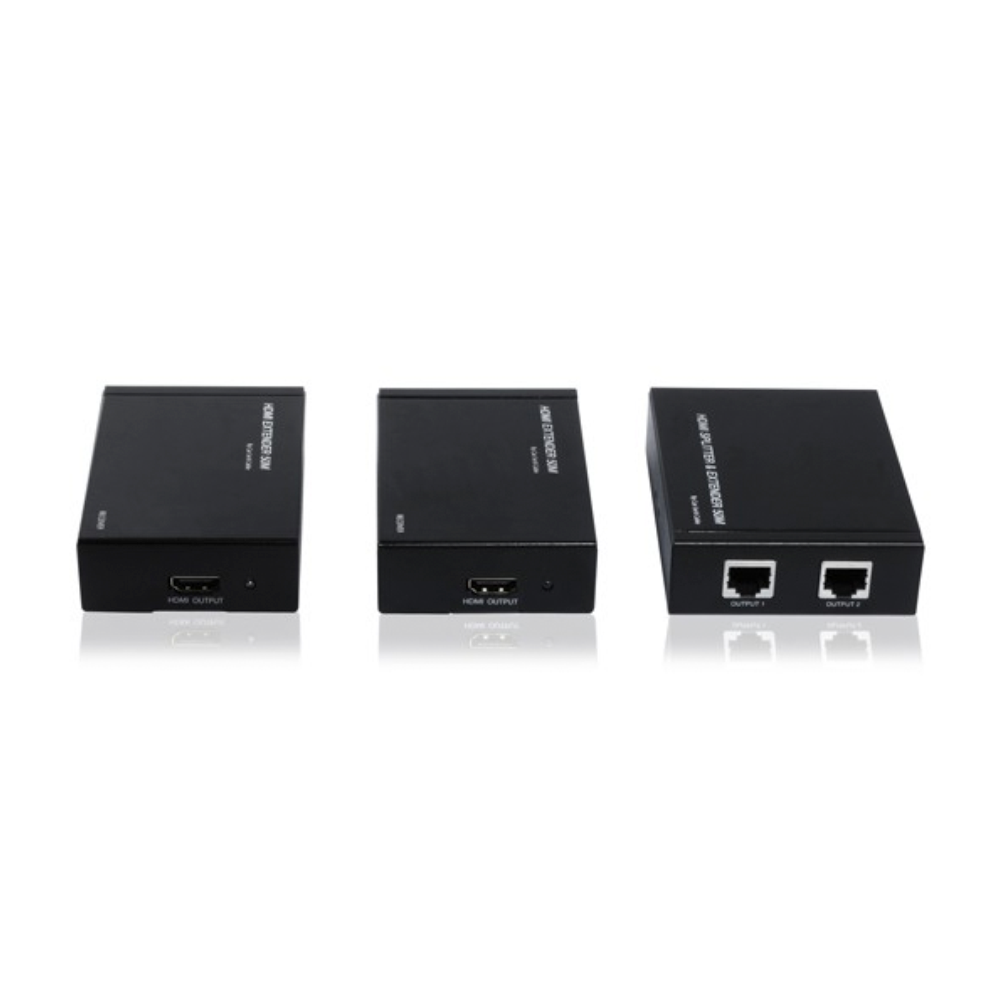

TEHDSPEX60 HDMI 1x2 Splitter Extender 60m
Model No.:
TEHDSPEX60
JAN:
4533239031805
DISCONTINUED
This model can extend HDMI signals up to 60m over LAN cable, which is 10m longer than our conventional TEHDSPEX 50.

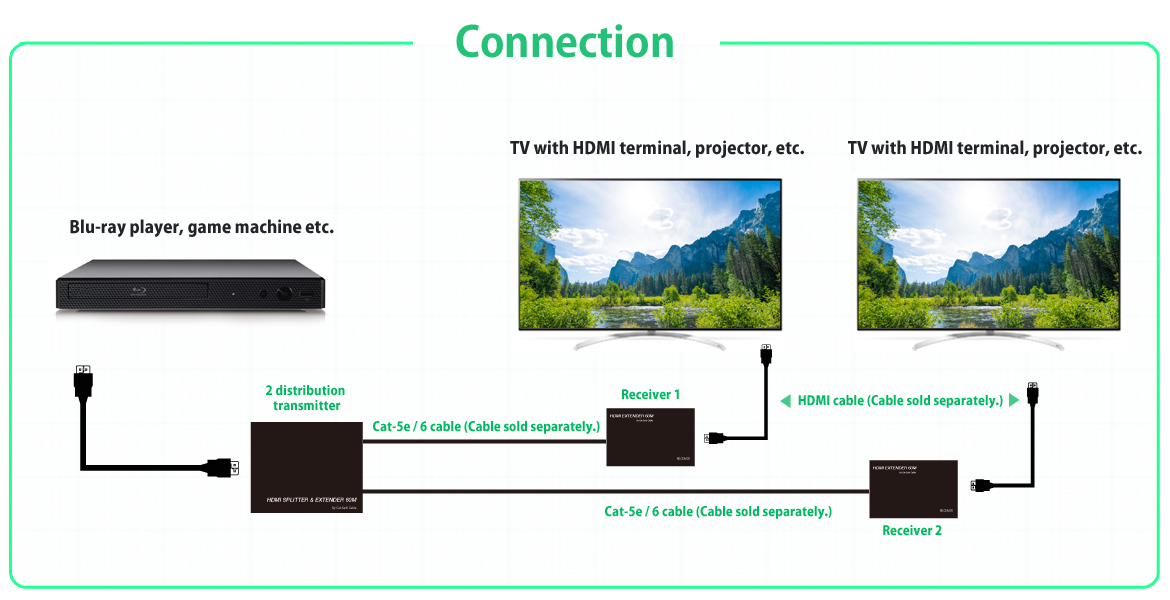

A 2-way HDMI distribution function is built into the transmitter, allowing the same screen to be displayed on two TVs at the same time.
With other extenders that do not have a distribution function, you would need to prepare a separate HDMI splitter. This product simplifies installation because it can extend and distribute at the same time.
It also supports 3D.

| Model Number | TEHDSPEX60 | JAN | 4533239031805 |
| Frequency Band | Each port 1.65 Gbps / 165 MHz | ||
| HDMI Transmitter: Input / Output Port | HDMI female x 1 / LAN port (RJ 45) x 2 2 distribution function (cable sold separately) | ||
| HDMI Receiver: Input / Output Port | LAN port (RJ 45) / HDMI female x 1 (cable sold separately) | ||
| Supported Resolutions | 480i / 576i / 1080i / 480p / 576p / 720p / 1080p | ||
| Supported Audio Format | LPCM | ||
| HDCP | Supported (pass through) | ||
| Transmitter Size / Weight | 100 x 76 x 26 mm / 196 g | ||
| Receiver Size / Weight | 81 x 48 x 26 mm / 120 g | ||
| Material | Steel | ||
| Operating Temperature | 0 ° C to 70 ° C | ||
| Storage Humidity | 5 to 90% RH | ||
| Power Supply | 5V AC adapter | ||
| Accessories | AC adapter x 3 Japanese instruction manual and warranty card | ||
※HDMI cable and LAN cable is not provided with. Sold separately.
※It does not correspond to HDMI-CEC.
※Please use Cat6 cable when you extend equal to or longer than 30m.
※It does not correspond to HDMI-CEC.
※Please use Cat6 cable when you extend equal to or longer than 30m.
