DISCONTINUED

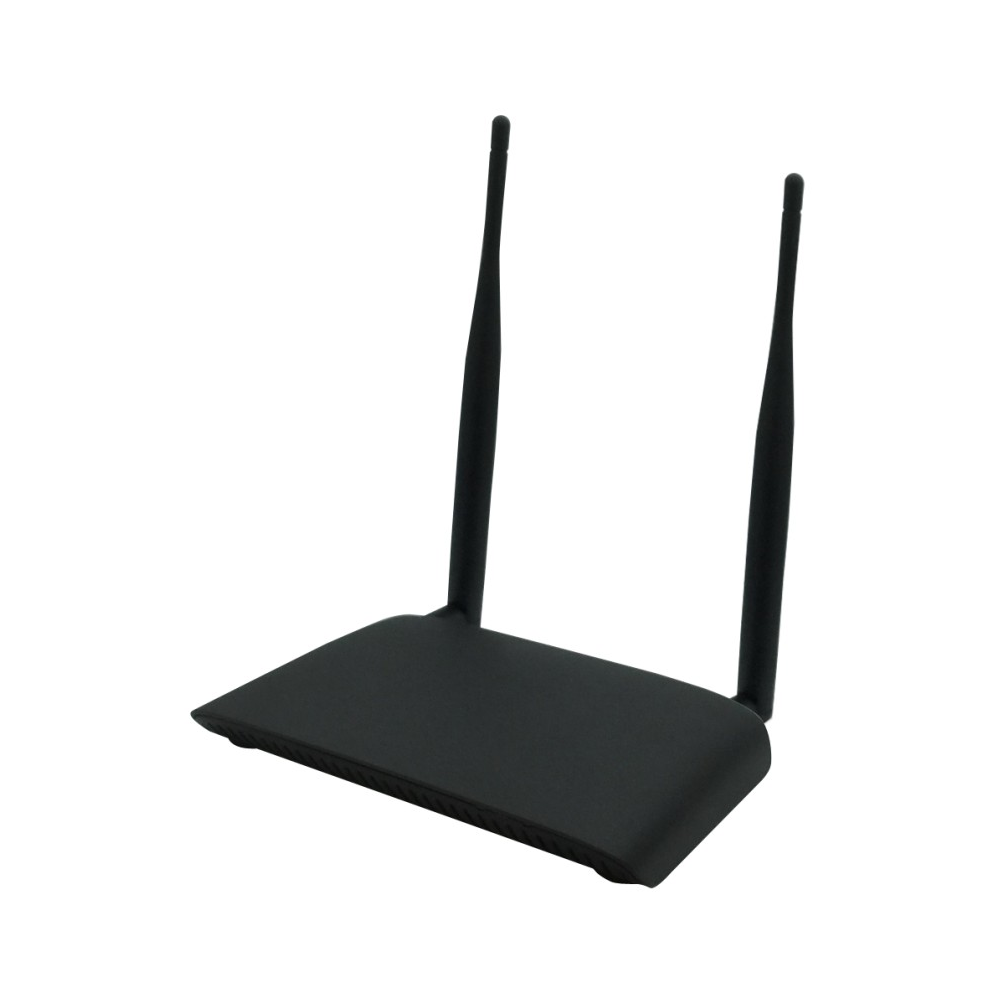

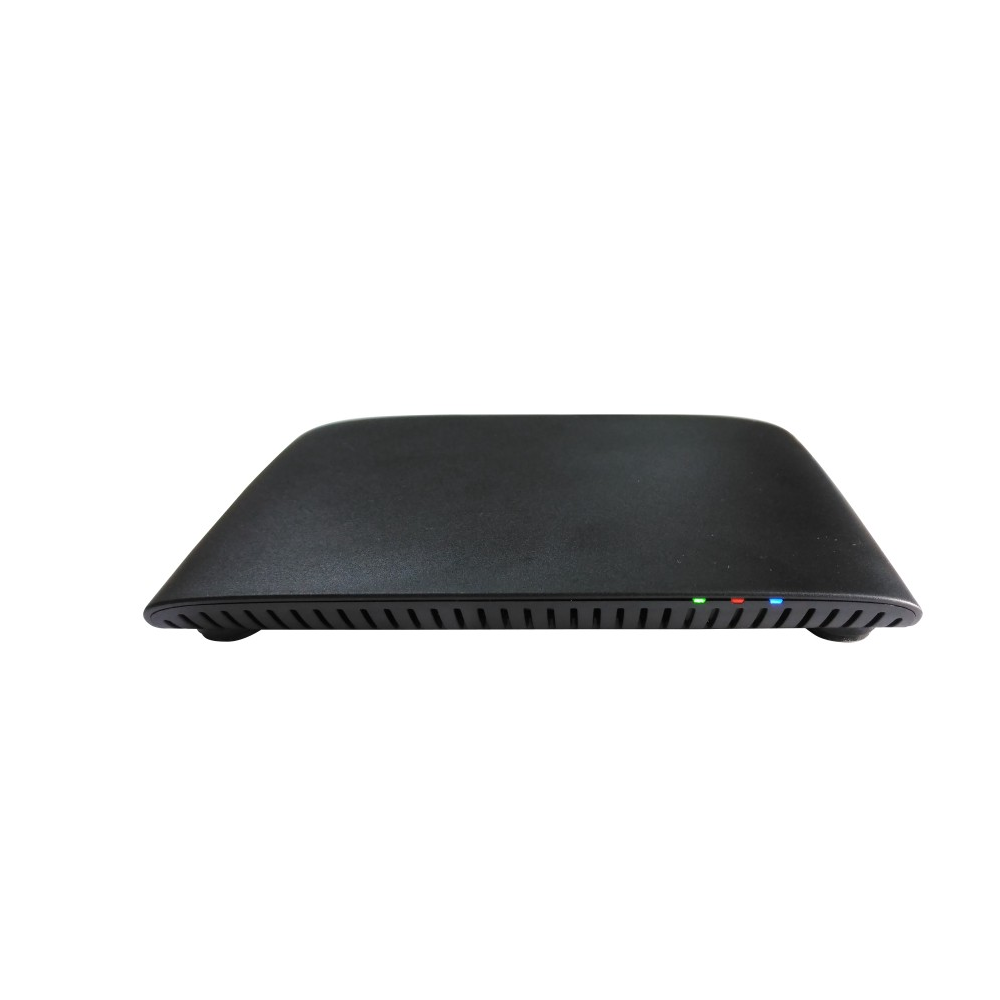

TEHDWLEX150-VR Wireless HDMI Extender
Model No.:
TEHDWLEX150-VR
JAN:
4533239031829
DISCONTINUED
Compatible devices: Video equipment with HDMI output terminal as standard equipment · Game Consoles · Personal computer
Supported output devices: PC display, TV, projector, standard equipped with HDMI input terminal, smartphone, VR goggles

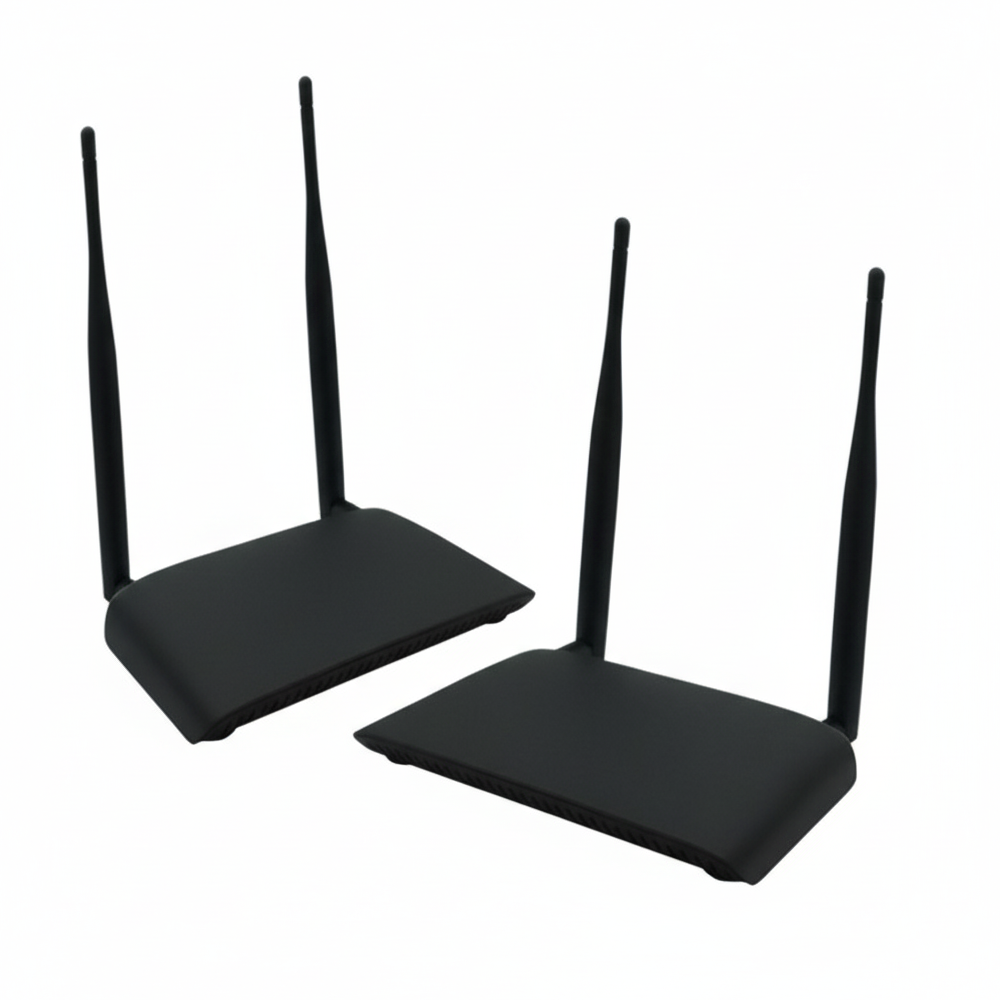

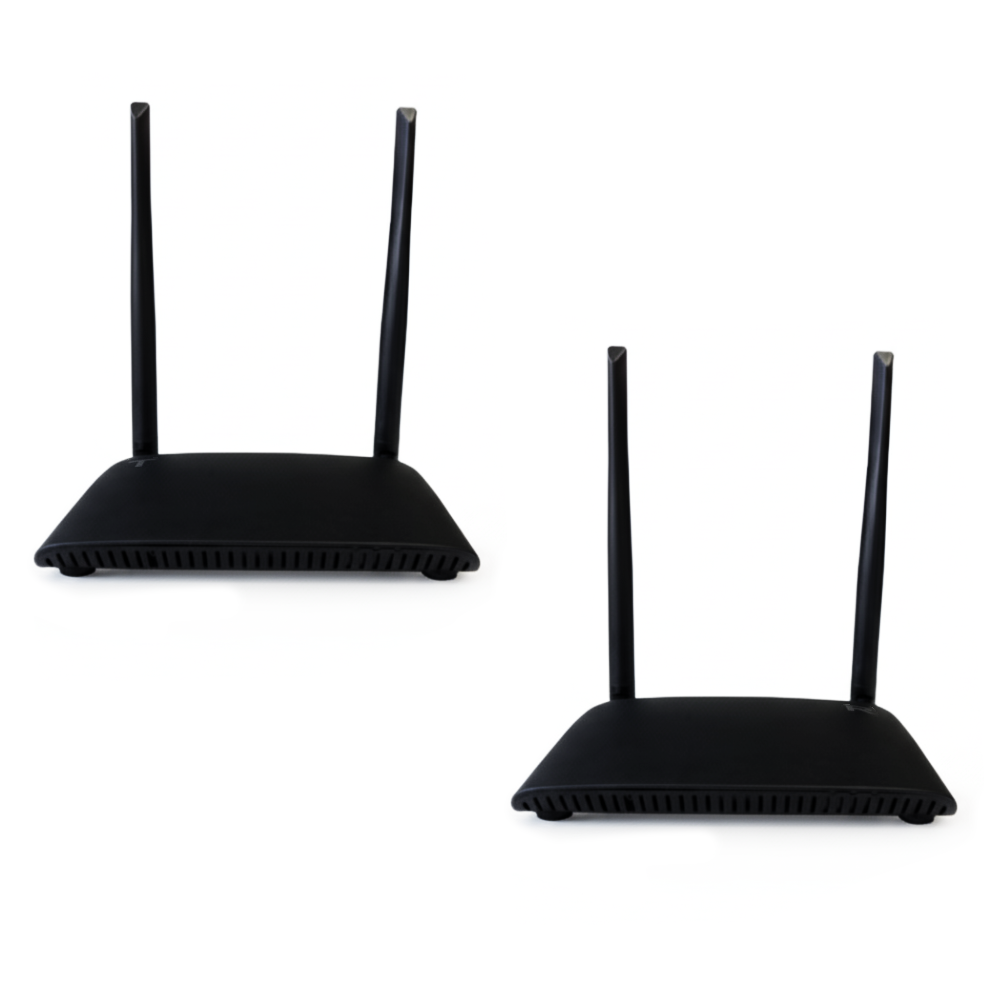

Package contents: Body (transmitter / TX), main body (receiver / RX), dedicated AC adapter × 2, HDMI cable × 2, IR (infrared cable) × 2, dedicated Wi - Fi antenna × 4, Written in Japanese instruction manual and warranty card
| Model No. | TEHDWLEX150-VR |
| JAN | 4533239031829 |

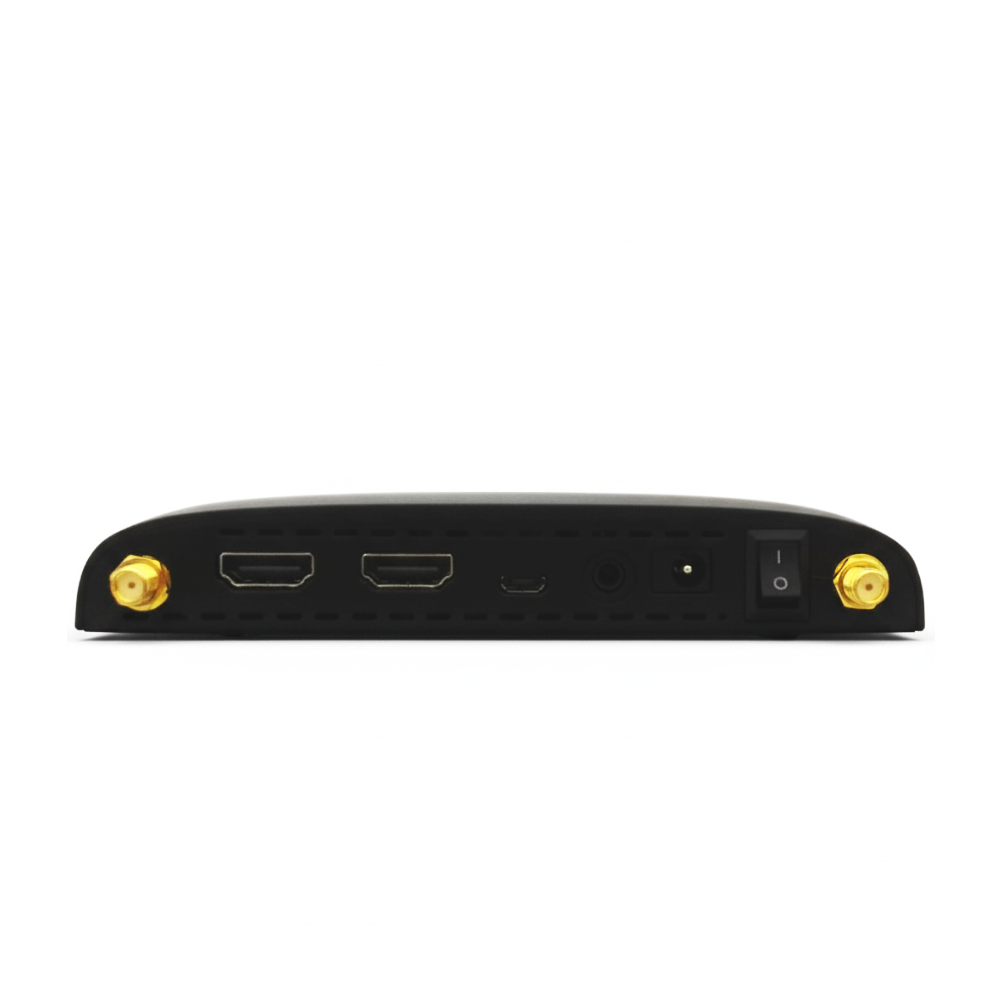

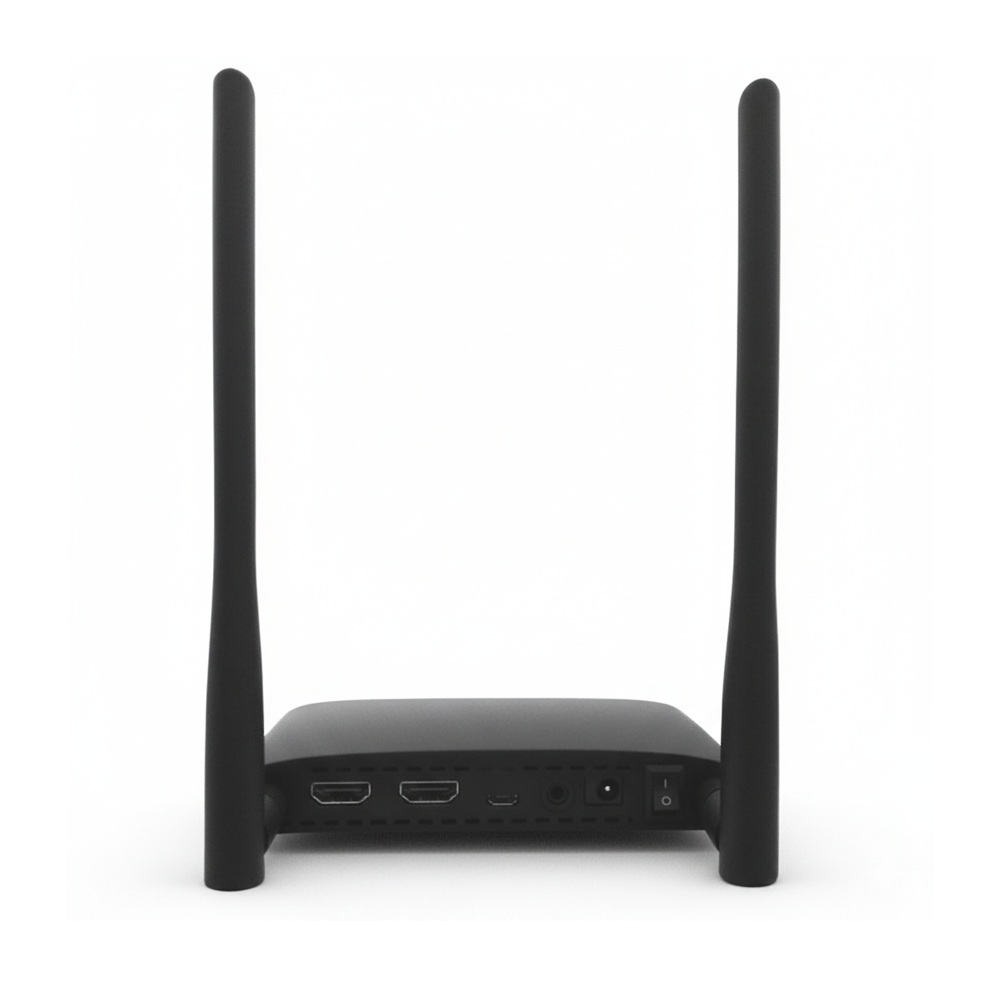

BODY (TRANSMITTER/TX) SPECIFICATIONS
| Supported Resolutions | 1080i/1080p/720p/576p/480p |
| Delay Rate | 16 ms (0.016 sec) |

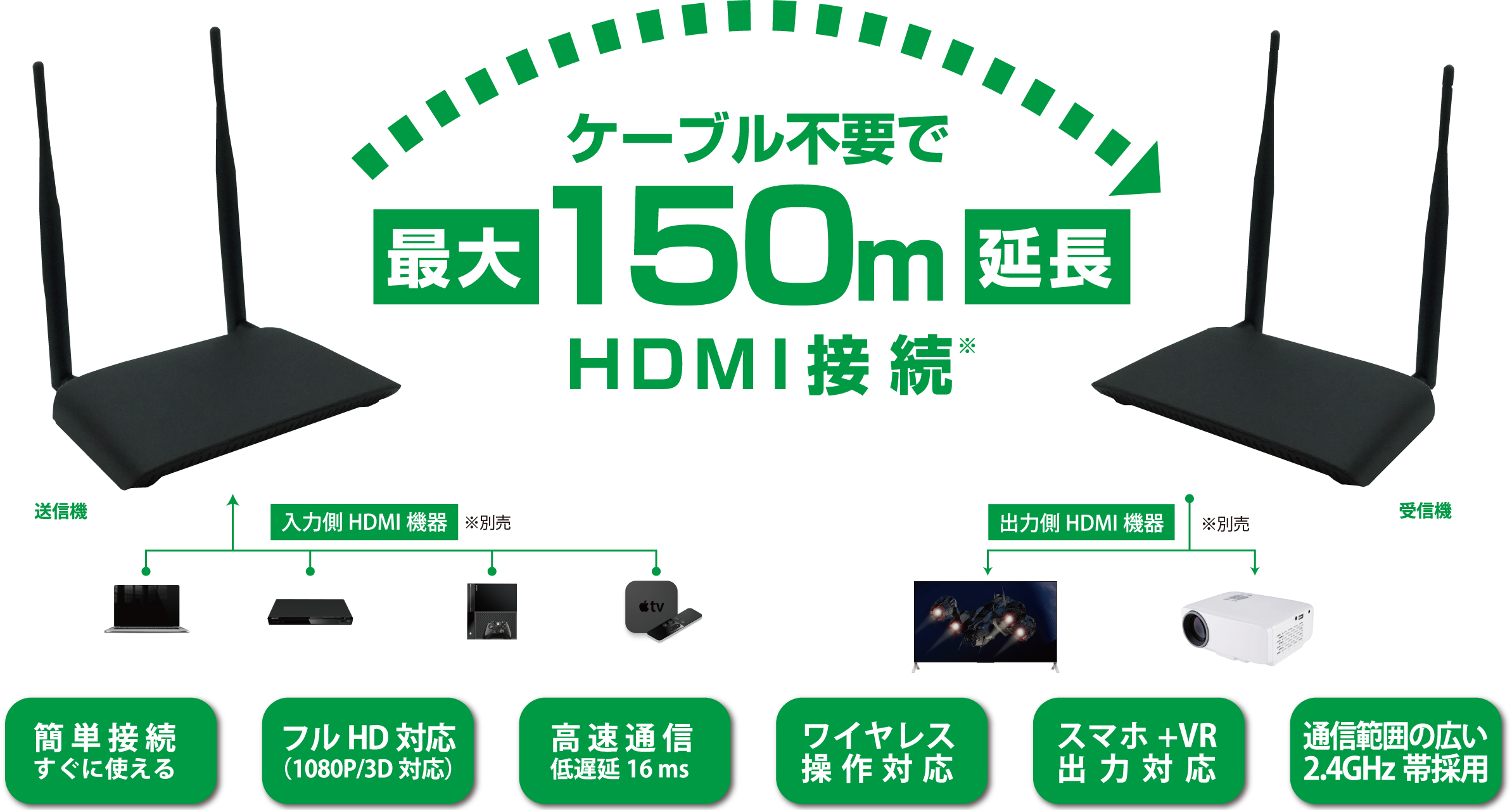

| Transmission Distance | Maximum 150m (when there is no obstacle) |
| Frequency | 2.4GHz (IEEE802.11 b/g/n) |
| Power Supply Input | 5V/2.5A |
| HDMI Input | × 1 |
| HDMI Output | × 1 |
| IR Connection Terminal | × 1 |
| USB Connection Terminal | × 1 ※ microUSB to Type-A conversion cable required separately |

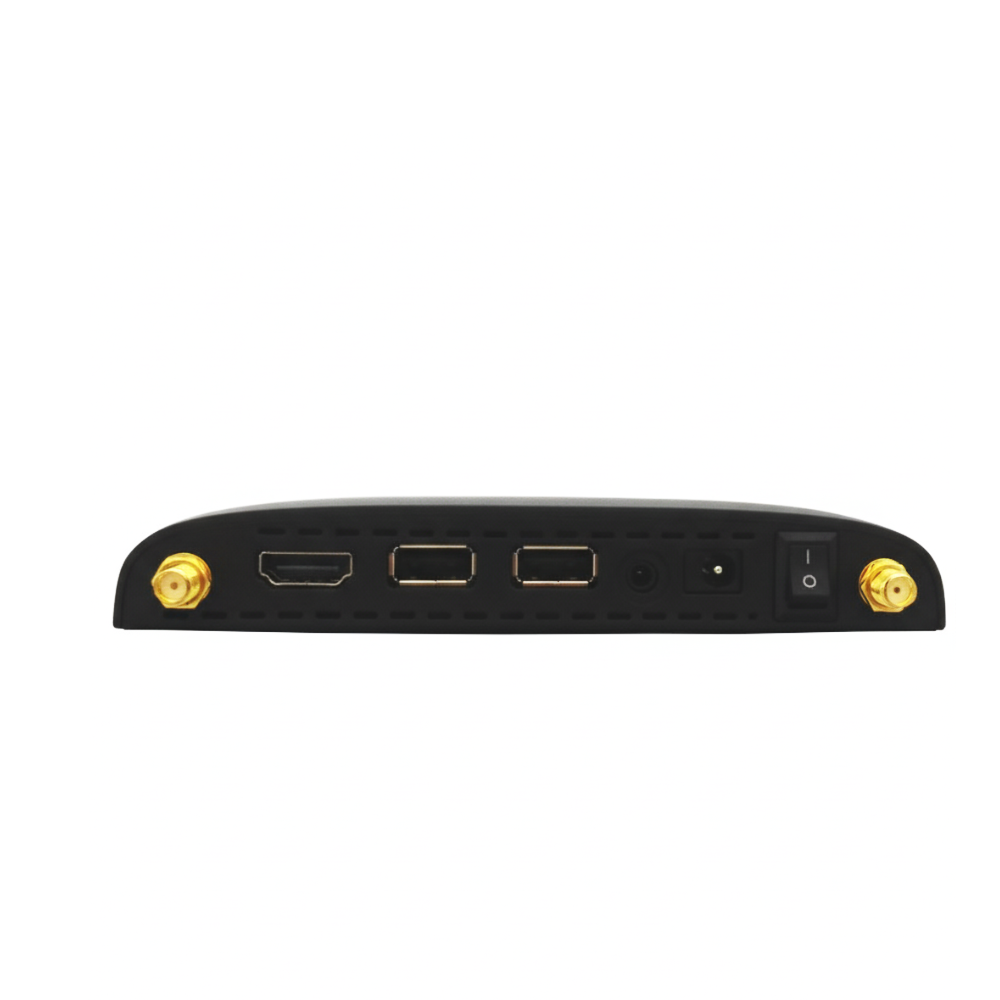

BODY (RECEIVER/RX) SPECIFICATIONS
| Supported Resolutions | Maximum 1080p at 30fps / 720p at 60fps |
| Delay Rate | 16 ms (0.016 sec) |
| Transmission Distance | Maximum 150m (when there is no obstacle) |
| Frequency | 2.4GHz (IEEE802.11 b/g/n) |
| Power Supply Input | 5V/2.5A |
| HDMI Output | × 1 |
| IR Connection Terminal | × 1 |
| USB Connection Terminal | × 1 |
※Operating condition and extended distance fluctuates depending on usage environment.
※The maximum extension distance is (150 m) , the distance when there is no obstacle or radio interference.
※If you place the same set in the same room, there is a possibility that the device will not be authenticated by it.
※When viewing images by connecting smartphones or tablets with TX (transmitter) in the state where images are being projected on the monitor from the RX (receiver) with HDMI output, the monitor output from the RX or smartphone / tablet (There is no problem with the HDMI output from the TX).

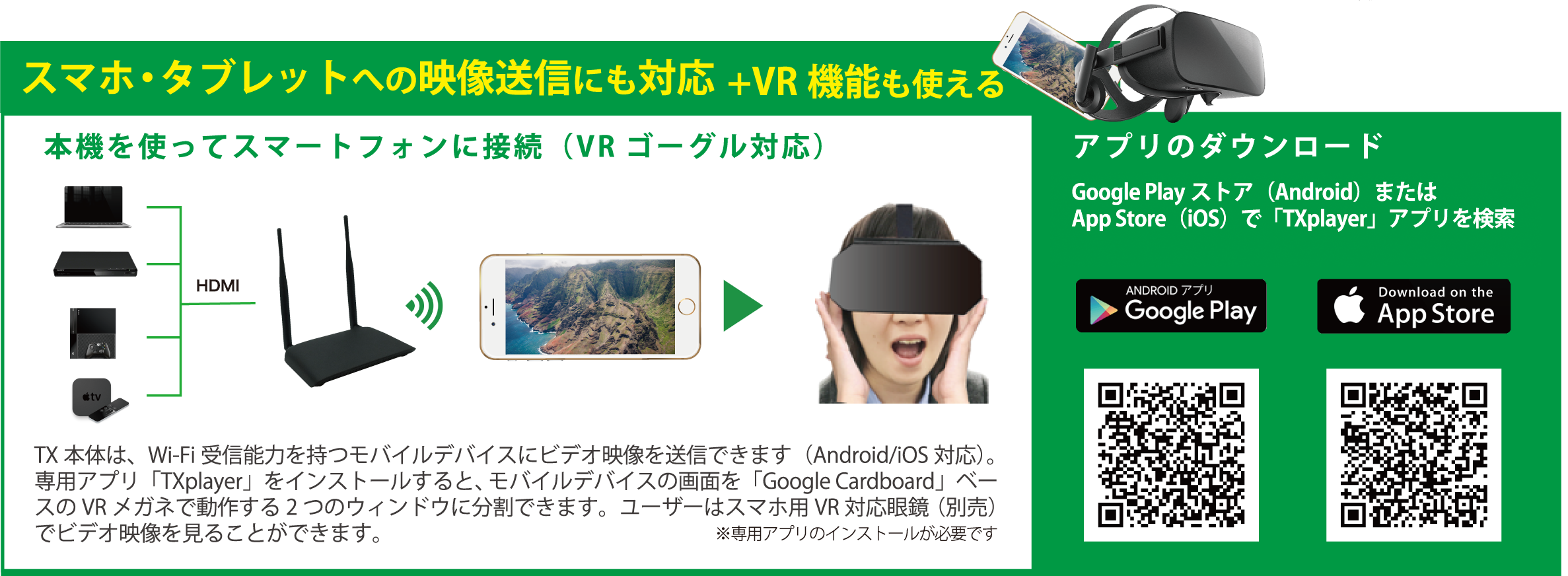

※The VR mode is not intended to convert video to VR. It is to make it possible to see with VR goggles.
Latest application update download URL for AndroidOS
We are currently reporting that there will be problems with the connection between the application and the wireless transmitter (TX) on Android devices.
Once you have uninstalled the application on your device, please install the application again from the URL below.
