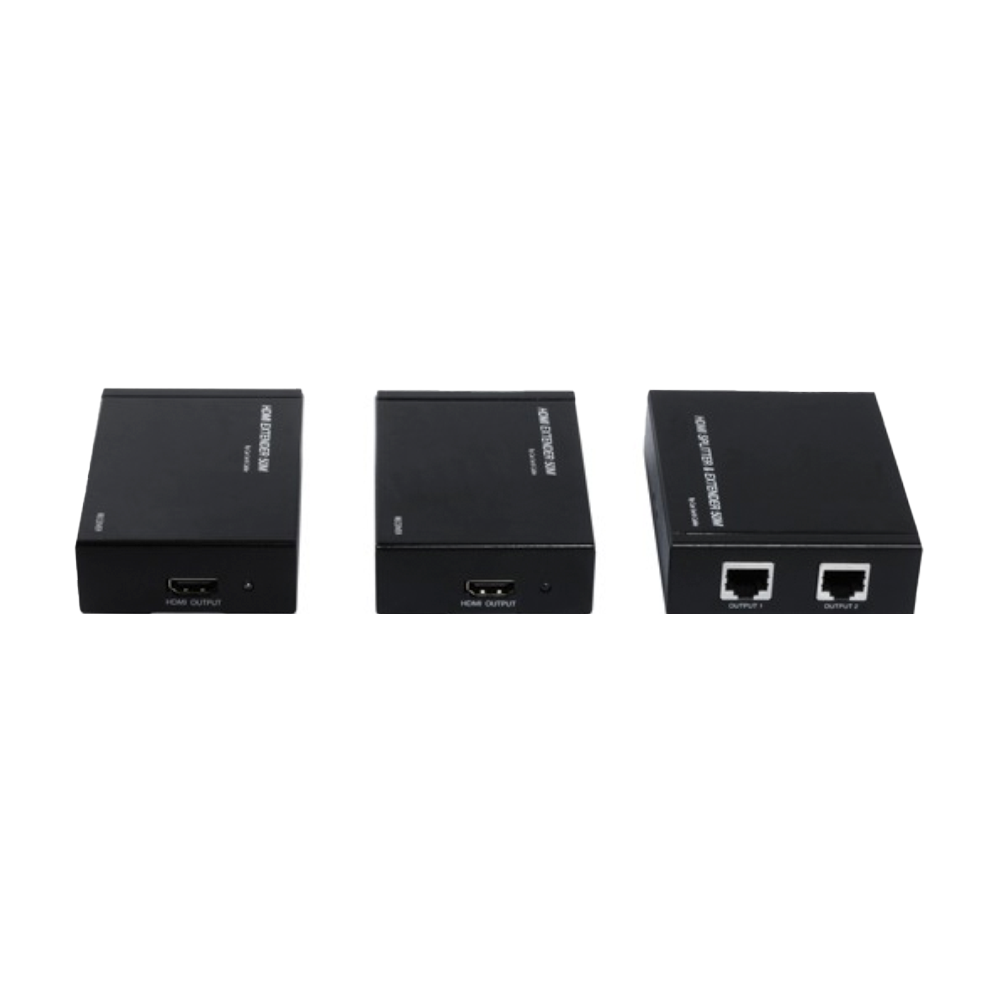

TEHDSPEX50 Distributor/Extender
Model No.:
TEHDSPEX50
JAN:
4533239026856
DISCONTINUED
By using a LAN cable, HDMI output can be extended up to 50m.
The transmitter has a built-in HDMI 1-to-2 distribution function, allowing the same screen to be displayed on two TVs.
With other extenders, a separate HDMI splitter is usually required to display the same image on two TVs. However, this product eliminates that need, enabling a simpler connection.
It also supports 3D.

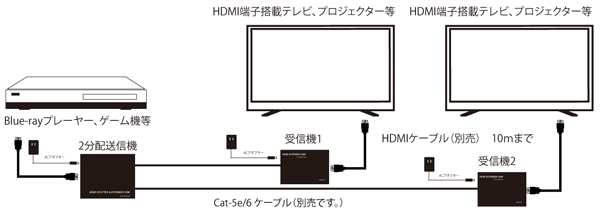

Connection Diagram
| Model number | TEHDSPEX50 | JAN | 4533239026856 |
| Frequency bandwidth | Each port 2.25Gbps/225MHz (all ports 6.75Gbps) | ||
| HDMI transmitter: input / output ports | HDMI female x1 / LAN port (RJ45) x2, built-in 1-to-2 distribution function (cables sold separately) | ||
| HDMI receiver: input / output ports | LAN port (RJ45) / HDMI female x1 (cables sold separately) | ||
| Supported resolutions | 480i/576i/1080i/480p/576p/720p/1080p | ||
| Supported audio format | LPCM | ||
| HDCP | Supported (pass-through) | ||
| Transmitter size / weight | 00 x 75 x 25mm / 210g | ||
| Receiver size / weight | 100 x 65 x 25mm / 176ｇ | ||
| Material | Steel | ||
| Operating temperature | 0℃ ~70℃ | ||
| Storage humidity | 20~90% RH | ||
| Power supply | 5V AC adapter | ||
| Accessories | AC adapter x3, Japanese instruction manual and warranty card | ||
※HDMI cable and LAN cable are not included. Please prepare them separately.
※Not compatible with HDMI-CEC.
※For 50m extension, Cat6 cable is recommended.
