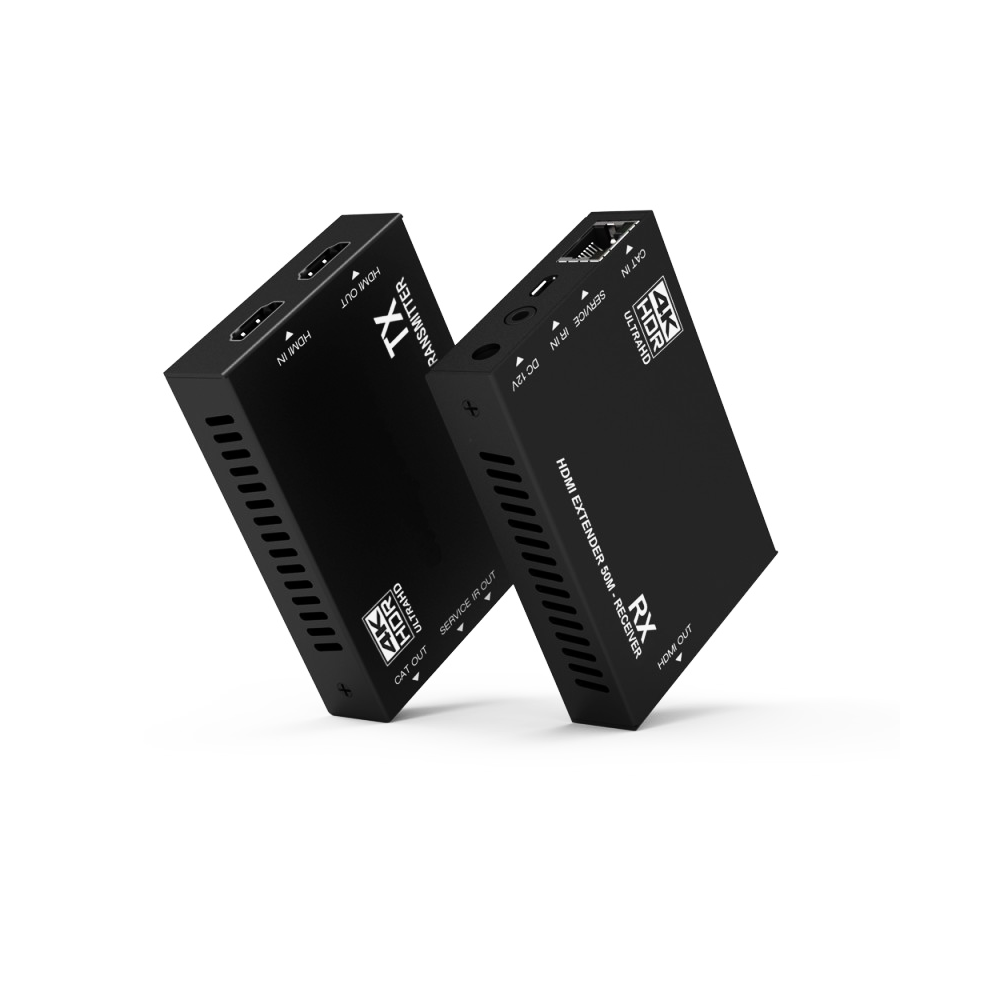

TEHDMIEX50-4K60 HDMI EXTENDER 50M Extend up to 50m with one LAN cable
Model No.:
TEHDMIEX50-4K60
JAN:
4533239032994
| Model Number | TEHDMIEX50-4K60 |
| JAN Code | 4533239032994 |
Video and Audio Specifications
| HDMI Standard | HDMI 2.0 |
| HDCP Standard | HDCP 2.2 / HDCP 1.4 |
| Transfer Speed Rate | 18Gbps |
| Supported Input/Output Resolution | Up to 4K 60Hz 4:4:4 |
| Color Space | RGB / YCbCr 4:4:4、YCbCr 4:2:2/4:2:0、YUV 4:4:4 |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) |
| Supported HDMI Audio Format | LPCM 2.0/2.1/5.1/6.1/7.1、Dolby Digital、Dolby TrueHD、Dolby Digital Plus(DD+)、DTS-ES、DTS HD Master、DTS HD-HRA、DTS-X |

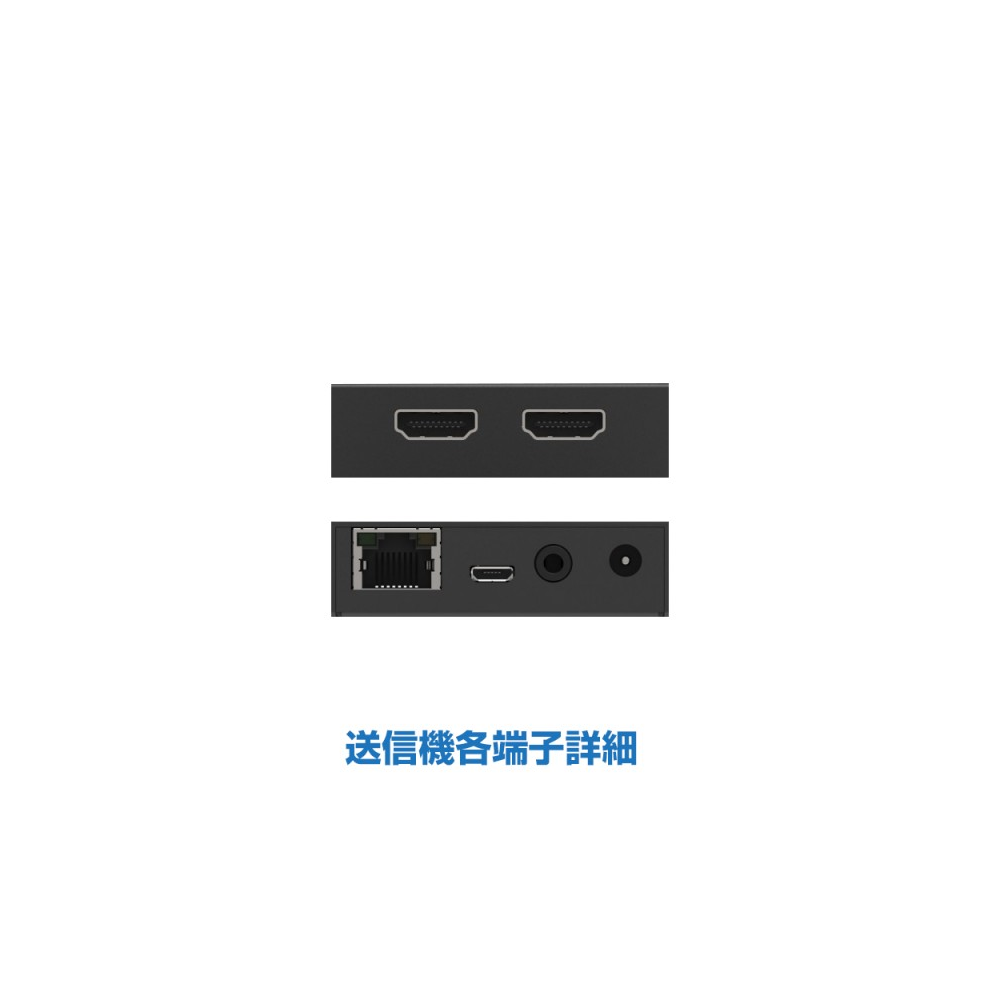

Connection Ports

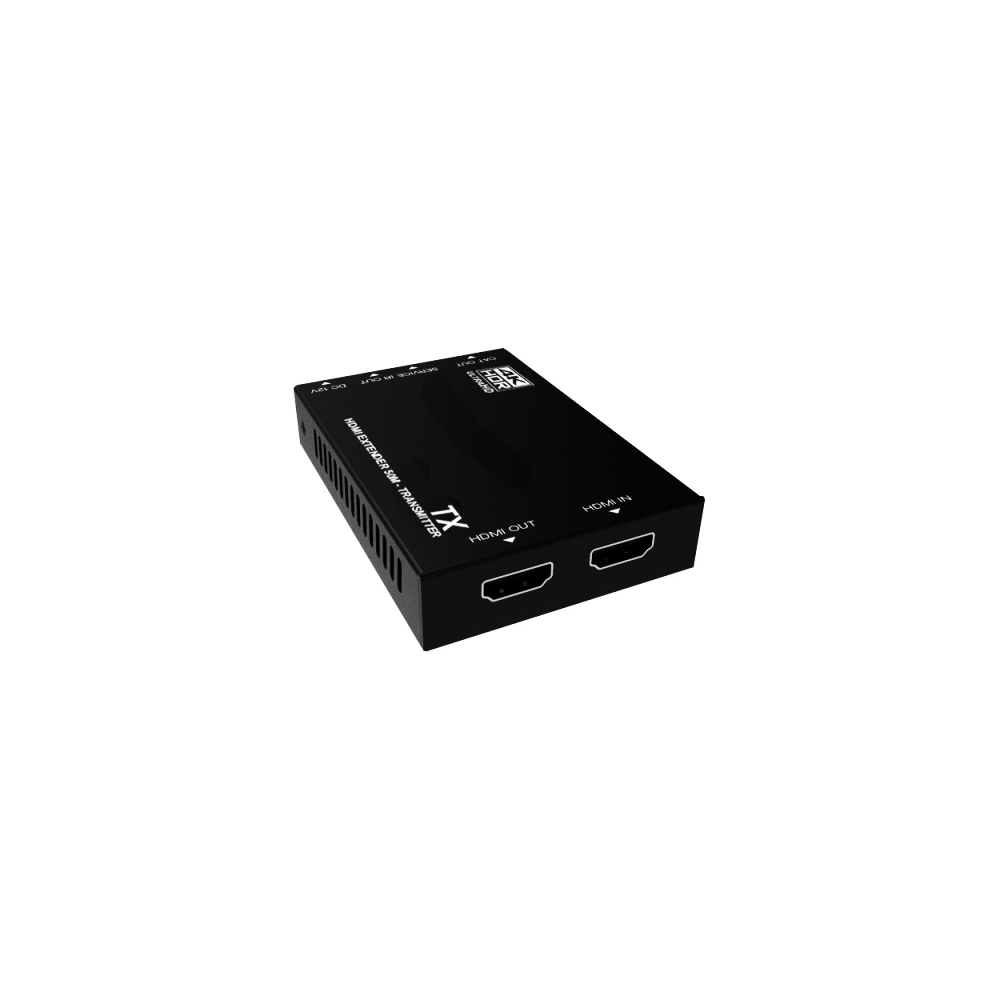

Transmitter (TX)
| HDMI Input | HDMI Type A (19-pin female) x 1 |
| HDMI Output (Loop Out) | HDMI Type A (19-pin female) x 1 |
| LAN Output | LAN OUT (RJ45, 8-pin female) x 1 |
| IR Output | IR OUT (3.5mm stereo mini jack) x 1 |
| SERVICE Port | x 1 (*This port is not used.) |

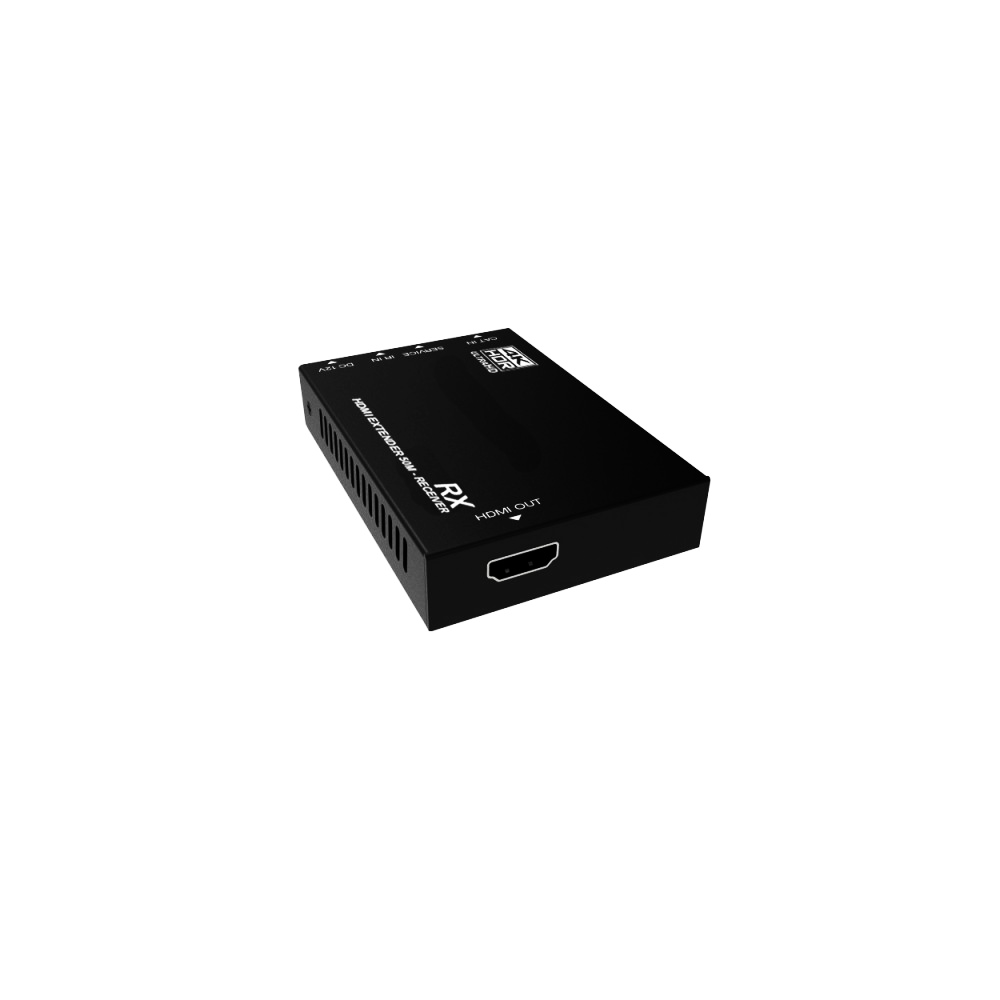

Receiver (RX)
| HDMI Output | HDMI Type A (19-pin female) x 1 |
| LAN Input | LAN input (RJ45, 8-pin female) x 1 |
| IR Input | IR input (3.5mm stereo mini jack) x 1 |
| SERVICE Port | x 1 (*This port is not used.) |
