DISCONTINUED

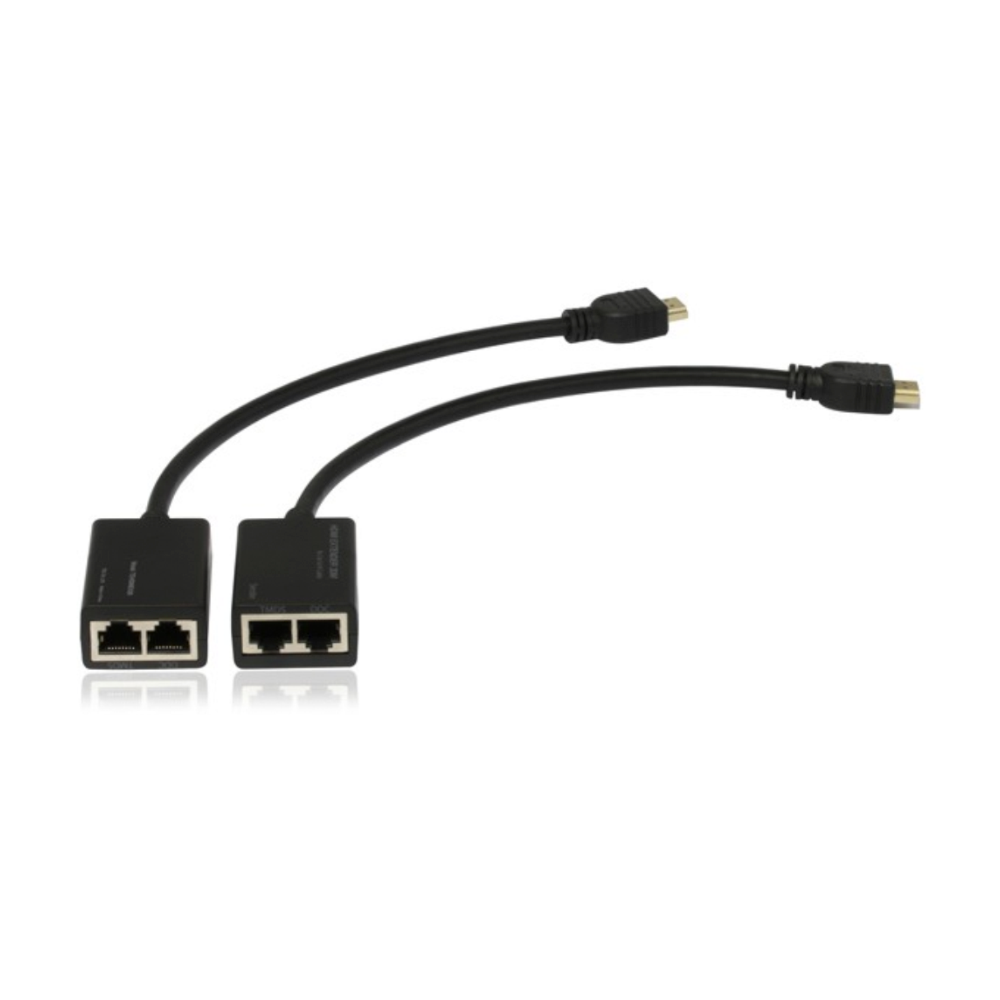

TEHDMIEX30 30m HDMI Extender Over CAT5e/CAT6
Model No.:
TEHDMIEX30
JAN:
4533239026849
DISCONTINUED

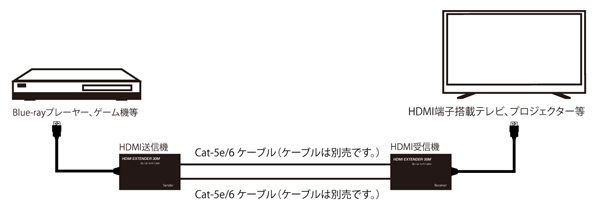

It is possible to extend HDMI output up to 30m by using two LAN cables without an AC adapter. The maximum supported resolution is 1080P, and it also supports the extension of various digital audio formats.
You can use it easily by simply connecting two straight LAN cables, since the HDMI cable is built in.
Because it uses straight LAN cables, it can be extended at a lower cost compared to using a long HDMI cable. In addition, no AC adapter is required, so installation is more flexible.
*Cross LAN cables cannot be used. Please use straight cables.
It also supports 3D.
| Item Code | TEHDMIEX30 | JAN | 4533239026849 |
| Frequency Band | 1.65Gbps/165MHz | ||
| HDMI Transmitter：Input／Output Port | HDMI Male x 1／LAN port Female CAT-5E/CAT-6 (straight) x 2 (Cable is sold separately) | ||
| HDMI Receiver：Input／Output Port | HDMI Male x 1 / LAN port Female CAT-5E/CAT-6(straight) x 2 (Cable is sold separately) | ||
| Supported Resolutions | 480i/576i/1080i/480p/576p/720p/1080p | ||
| Supported Audio Format | LPCM/DTS Digital/DTS-HD and Dolby True HD | ||
| HDCP | Supported | ||
| Body Size (Transmitter / Receiver) | 54 x 35 x 21 mm (excluding cable) Cable length 210 mm | ||
| Body Weight (Transmitter / Receiver) | 55ｇ | ||
| Operating Temperature | 0℃ ~70℃ | ||
| Storage Humidity | 5% ~ 95 % RH | ||
| Power Supply | HDMI (power supply from connected equipment) | ||
| Accessories | Japanese manual and warranty | ||
※LAN cable is not attached. Please prepare straight LAN cable separately.
※Cross LAN cable can not be used.
※This product does not support HDMI-CEC.
※Cross LAN cable can not be used.
※This product does not support HDMI-CEC.
