THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator

Model No.:

THDTOA-4K60

JAN:

4533239033199
<span>THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator</span>
<span>THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator</span> thumbnail 1 <span>THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator</span> thumbnail 2 <span>THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator</span> thumbnail 3 <span>THDTOA-4K60 HDR 4K60Hz Standard Pass-Through Compatible HDMI Audio Separator</span> thumbnail 4
THDTOA-4K60



THDTOA-4K60



THDTOA-4K60



THDTOA-4K60



THDTOA-4K60



Model no.THDTOA-4K60
JAN4533239033199
HDMI standardHDMI 2.0b
HDCP standardHDCP 2.2 and HDCP 1.4
Corresponding speedUp to 18Gbps
HDMI compatible audio outputMaximum 4K2K @ 50 / 60Hz (YUV 4: 4: 4 8bit, YUV4: 2: 0 10bit), 4K2K @ 30Hz, 1080P @ 120Hz,
1080P 3D @ 60Hz HDR, HDR 10+, HLG, DOLBY VISION
HDMI compatible audio outputDolby Digital 2 / 5.1ch, Dolby Digital Plus2 / 5.1 / 7.1ch, Dolby TrueHD 2 / 5.1 / 7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2 / 5.1 / 7.1ch, Dolby Atmos
Optical digital compatible outputDolby Digital 2ch / 5.1ch, DTS 2 / 5.1ch, LPCM 2ch
L / R analog outputL / R analog output [3.5mm mini jack]

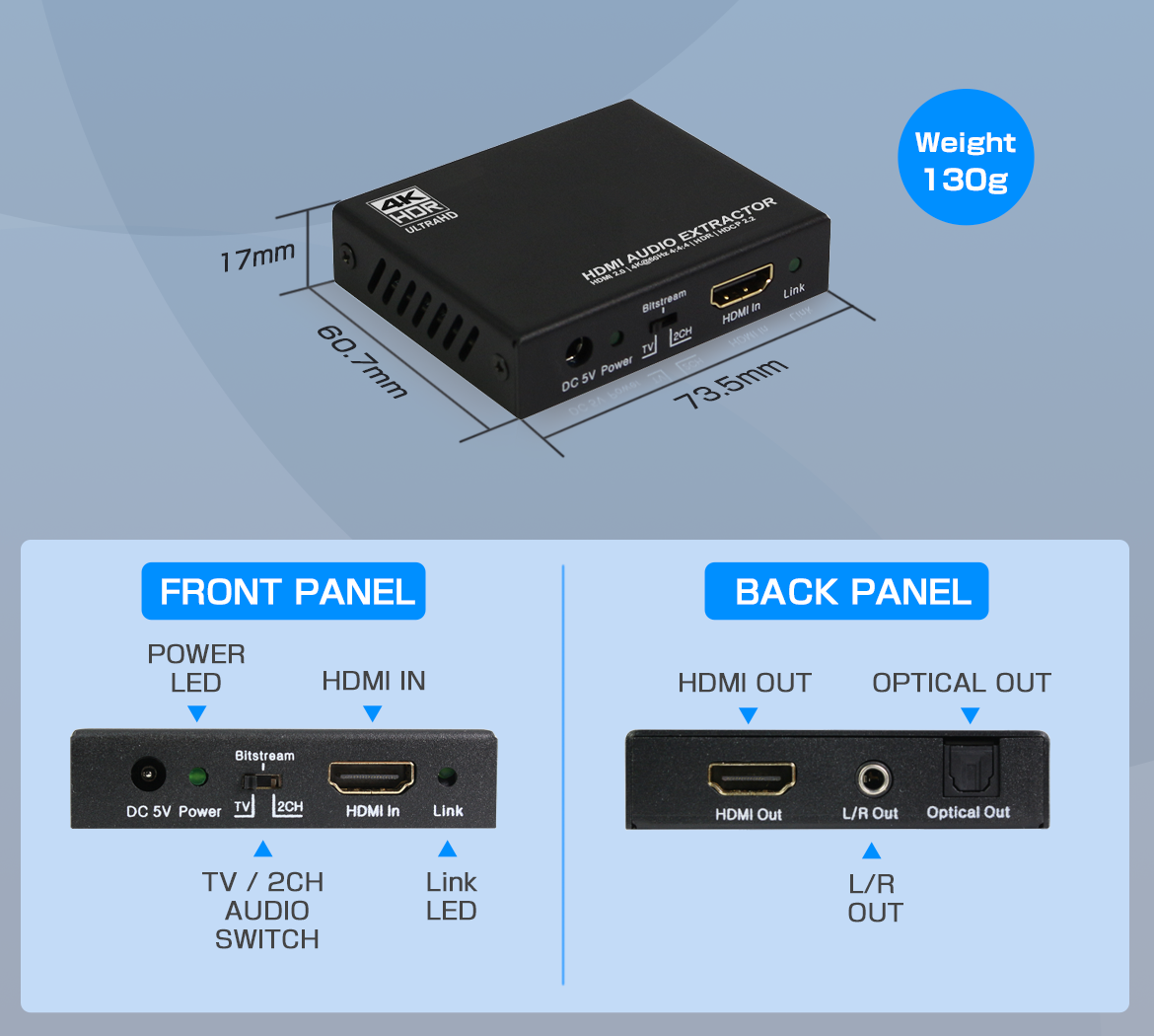

Product Dimension (mm)73.5 [W] x 60.7 [D] x 17 [H]
Product Weight130g

Connecting terminal

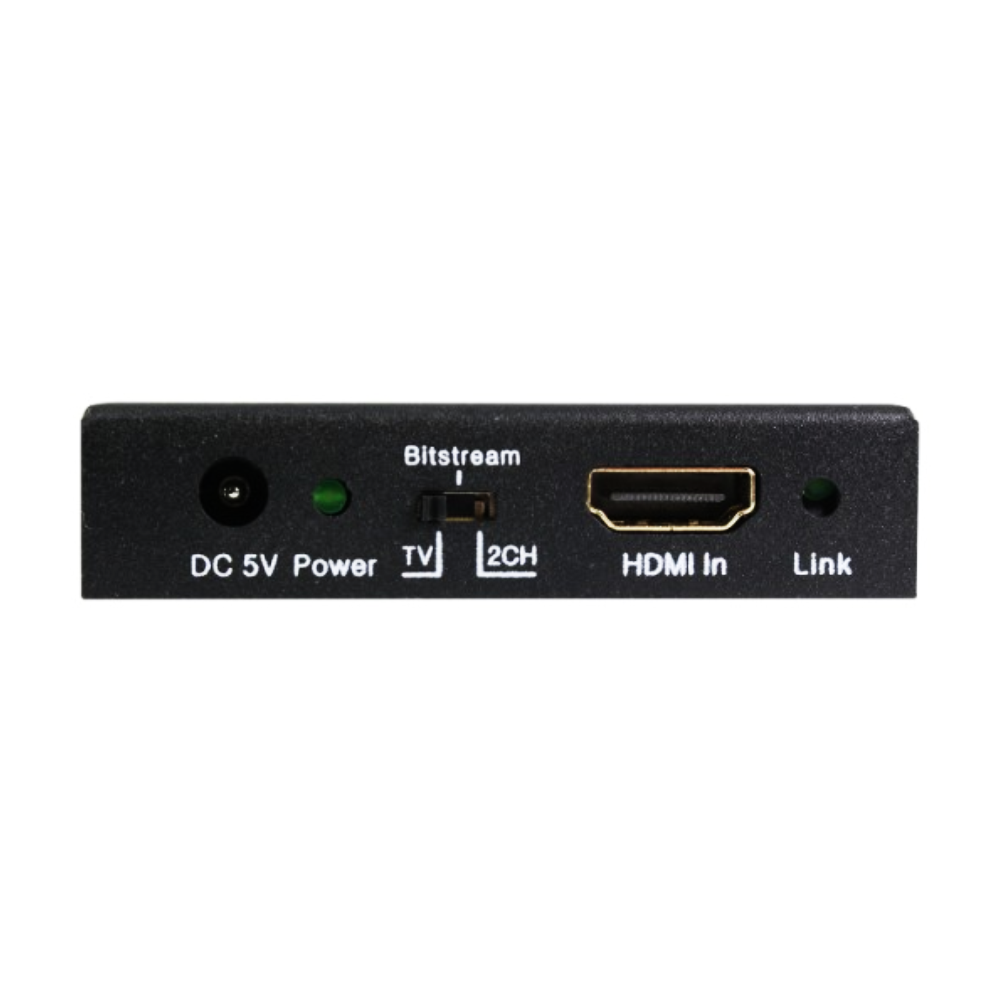

Input PortHDMI TYPE-A [19-PIN female] x 1

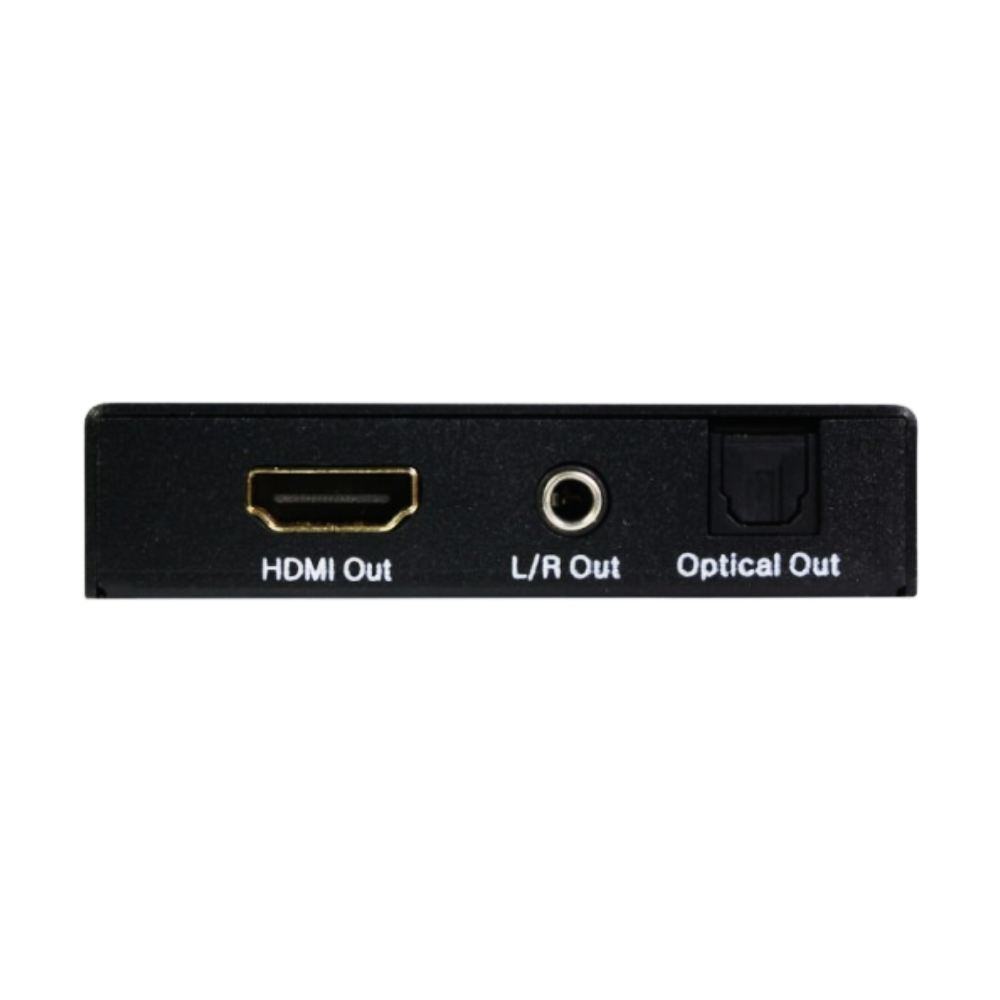

Output PortHDMI TYPE-A [19-PIN female] x 1
L / R analog audio output [3.5mm mini jack] x 1
optical digital output [S / PDIF] x 1
* This product does not support ARC.
* This product does not guarantee operation with all input / output devices.
* When inputting / outputting 4K60Hz video, please use the HDMI ver2.0 cable (sold separately).
