TALL2HDMI-4K 4K Multi Input Video Converter
Model No.:
JAN:
This HDMI converter converts composite, component, and VGA signals to HDMI output, combining multiple converters into one unit. It supports output resolutions up to 3840P Ultra Full HD 4K.
There are only a few 4K TVs that can upscale composite, component, or VGA signals directly to 4K, so replacing output devices such as DVD players or recorders was often necessary. With TALL2HDMI-4K, you can continue using your existing devices and still enjoy upscaled 4K output, even if your source devices or video content do not support 4K.
It can also be used as a switcher because it is equipped with two HDMI inputs that support up to 3840P Ultra Full HD 4K. It can be operated with the included remote control, allowing easy switching without unplugging and reconnecting cables.
In addition, you can use it as a simple media player by inserting a USB memory device containing videos or images. Supported formats: Video: MPEG, H.264, RM / RMVB / Audio: MPEG 1/2, MP3. 4K video playback is not supported in the simple media player function.
This product is useful when you want to keep using existing DVD players or recorders with a 4K TV, or when you need to switch and display output from multiple devices such as observation instruments, electron microscopes, video equipment, DVD players, game consoles, or recorders on an HDMI monitor or TV.
| Model Number | TALL2HDMI-4K | JAN | 4533239027402 |

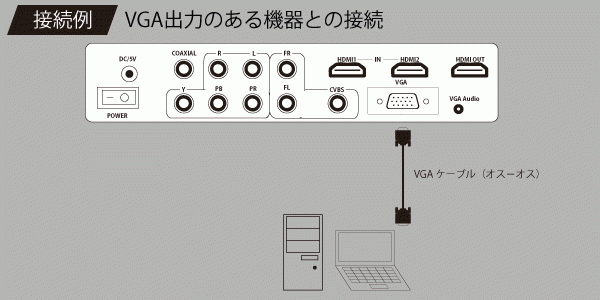

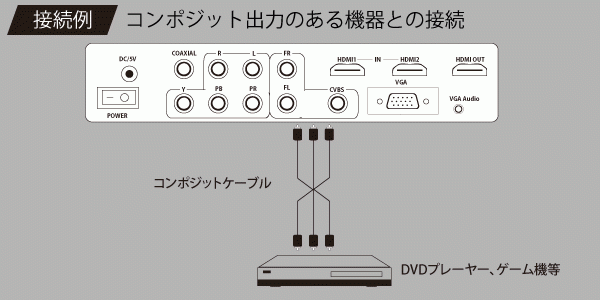

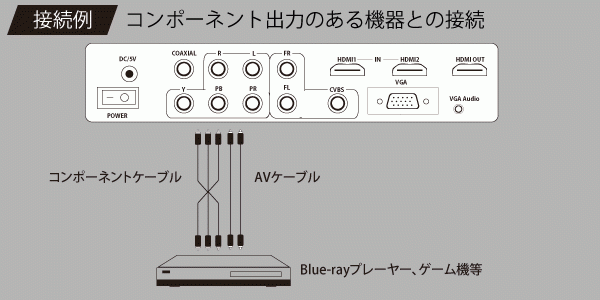

| Input Terminal | Composite x 1, component x 1, VGA x 1, HDMI x 2, 3.5 mm audio jack x 1, AV terminal (RCA), USB x 2 | ||
| Output Terminal | HDMI × 1, COAXIAL × 1 | ||
| Component Input Resolution | 1080 p @ 50/60 Hz, 1080 i @ 50/60 Hz, 720 p @ 50/60 Hz, 576 i / p, 480 i / p | ||
| Component Audio Input | RL (AV terminal) | ||
| Composite Input | PAL, NTSC | ||
| Composite Audio Input | FR, FL (AV terminal) | ||
| VGA Input | 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1024 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1360 x 768 @ 60 Hz, 1440 x 900 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz | ||
| VGA Audio Input | 3.5mm audio jack | ||
| HDMI1, HDMI2 Input Resolution | 1080i @ 50 / 60Hz, 780p @ 50 / 60Hz, 720p @ 50/60 Hz, 576i / p, 480i / p, 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1024 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1280 x 720 @ 60 Hz, 1360 x 768 @ 60 Hz, 1440 x 900 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz, 4 K (3840 x 2160) / 30 Hz HDI | ||
| Output Resolution | 720 P, 1080 P, 4 K (3840 × 2160) / 30 Hz **** | ||
| USB Media Display Function | Video: MPEG, H.264, RM / RMVB Still picture: JPEG, BMP, PNG Audio: MPEG 1/2, MP3 | ||
| Still Image | PEG, BMP, PNG | ||
| Audio | MPEG1/2, MP3 | ||
| Power Supply | AC Adapter **** | ||
| Body Size | 175 x 125 x 40 mm (excluding protrusions) | ||
| Body Weight | Approximately 730 g | ||
| Accessories | AC adapter, remote control, Japanese manual and warranty | ||
| Warranty Period | 12 months | ||
