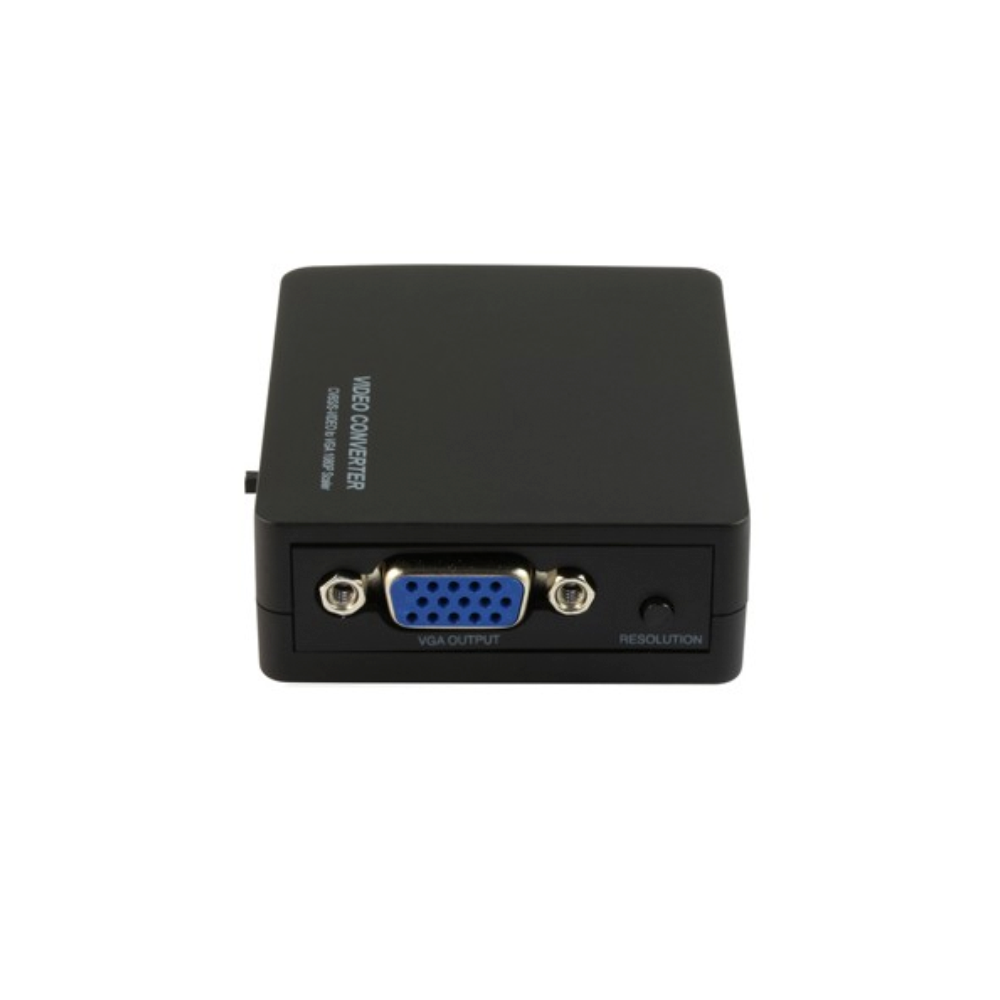

TSCVGA2 Composite/S-Video to VGA Converter
Model No.:
JAN:
This is an upscan converter that converts composite or S-Video input to VGA (D-sub 15 pin) output. It can output at various resolutions using the built-in resolution switch.
The input source can be switched between composite and S-Video using the switch on the main unit. Thanks to its compact design, the unit can be placed almost anywhere.
You can use it immediately after purchase since an AC adapter is included, so there is no need to prepare a USB charger separately.

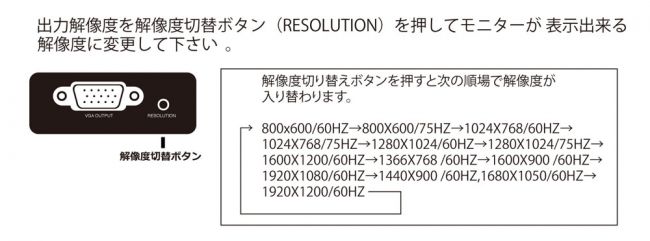

The output resolution changes sequentially each time the switch button is pressed: 800x600/60HZ → 800X600/75HZ → 1024X768/60HZ → 1024X768/75HZ → 1280X1024/60HZ → 1280X1024/75HZ → 1600X1200/60HZ → 1366X768/60HZ → 1600X900/60HZ → 1920X1080/60HZ → 1440X900/60HZ.

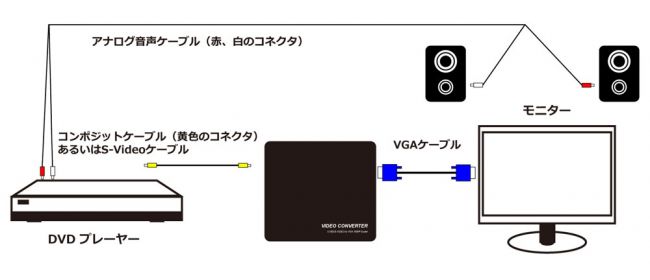

It allows devices with only composite output, such as security cameras, to be displayed on a VGA monitor or TV.
| Model Number | TSCVGA2 | JAN | 4533239027433 |
| VGA Compatible Resolution | 800X600 / 60HZ, 800X600 / 75HZ, 1024X768 / 60HZ, 1024X768 / 75HZ, 1280X1024 / 60HZ, 1280X1024 / 75HZ, 1600X1200 / 60HZ, 1366X768 / 60HZ, 1600X900 / 60HZ, 1920X1080 / 60HZ, 1440X900 / 60HZ, 1680X1050 / 60HZ, 1920X1200 / 60 HZ | ||
| Input Terminal | Composite (CVBS) / S-Video (S-video) | ||
| Output Terminal | VGA (D-sub 15 pin) | ||
| Operating Temperature | 0˚C to 50˚C | ||
| Storage Humidity | 5% to 90% RH | ||
| Power Supply | 5V AC Adapter | ||
| Body Size | Approximately 75 x 50 x 15 mm (excluding protrusions) | ||
| Body Weight | Approximately 45 g | ||
| Accessories | AC adapter, Japanese manual and warranty | ||
