This product has been discontinued

DISCONTINUED

TEzRecLN Capture Box

Model No.:

TEzRecLN

JAN:

4533239031676
DISCONTINUED

<span>TEzRecLN Capture Box</span>

<span>TEzRecLN Capture Box</span>
 thumbnail 1
<span>TEzRecLN Capture Box</span>
 thumbnail 2
<span>TEzRecLN Capture Box</span>
 thumbnail 3
<span>TEzRecLN Capture Box</span>
 thumbnail 4
<span>TEzRecLN Capture Box</span>
 thumbnail 5
<span>TEzRecLN Capture Box</span>
 thumbnail 6
TEzRecLN



TEzRecLN



TEzRecLN



TEzRecLN



TEzRecLN



TEzRecLN



TEzRecLN



Model NumberTEZRECLN
JAN Code4533239031676
Supported Input Resolutions4K (3840×2160 60p), 2K (2560×1440 60p)
1920×1080 (60p/50p/30p/25p/24p/60i/50i)
1360×768 (60p), 1280×1024 (60p), 1280×720 (60p)
1280×768 (60p), 1280×800 (60p), 1024×768 (60p)
720×480 (60p/60i/50i), 720×576 (50p), 640×480 (60p)
Output Resolution1920×1080 (60p), 1280×720 (60p)
Recorded Data Resolution1920×1080 (30p), 1280×720 (60p)
Bit RateMaximum 16 Mbps, Default 10 Mbps

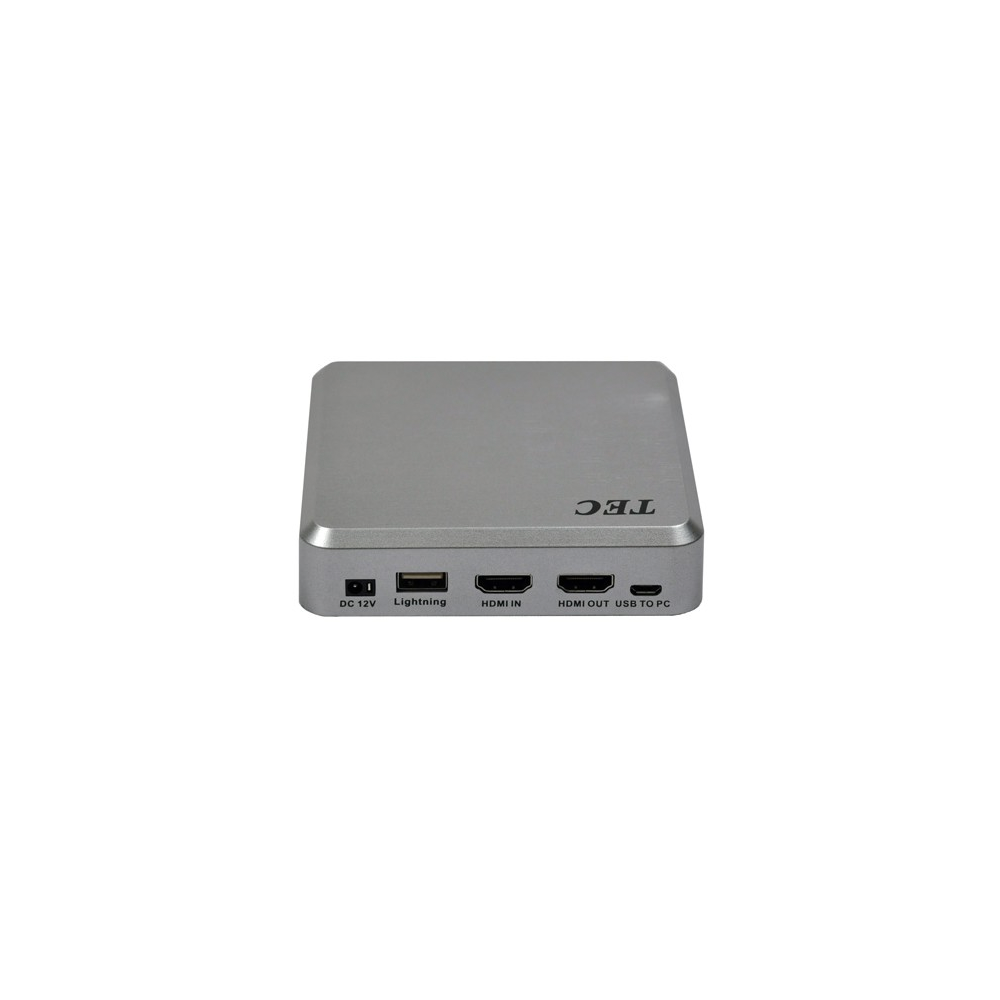

Input TerminalsHDMI, USB for Lightning cable (iPhone/iPad)
MIC (3.5mm), Audio L/R, AV, DC power supply
Output TerminalsHDMI, USB 2.0, microUSB for PC output
TF card (microSD card), Line output (3.5mm)
Output FormatMP4 (H.264)
Recording FormatFAT32, NTFS
Video Standard (Input)NTSC, PAL
Maximum Storage CapacityHDD 2TB, USB memory 32GB, microSD card 32GB
Power SupplyDC 12V 1A
Body SizeW109.6 × D109.6 × H25.15mm

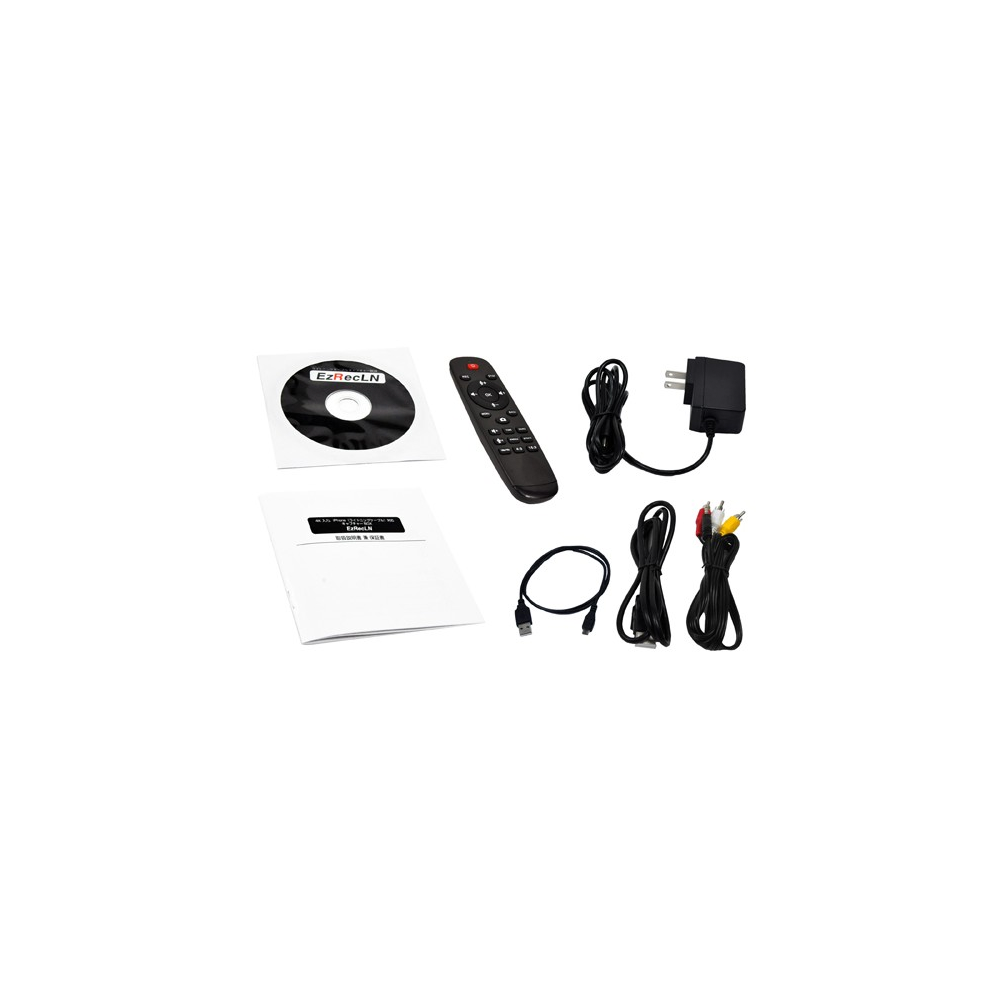

AccessoriesAC adapter, Japanese manual and warranty, Remote control
HDMI cable 1.2m, microUSB cable
3.5mm AV jack (composite cable)

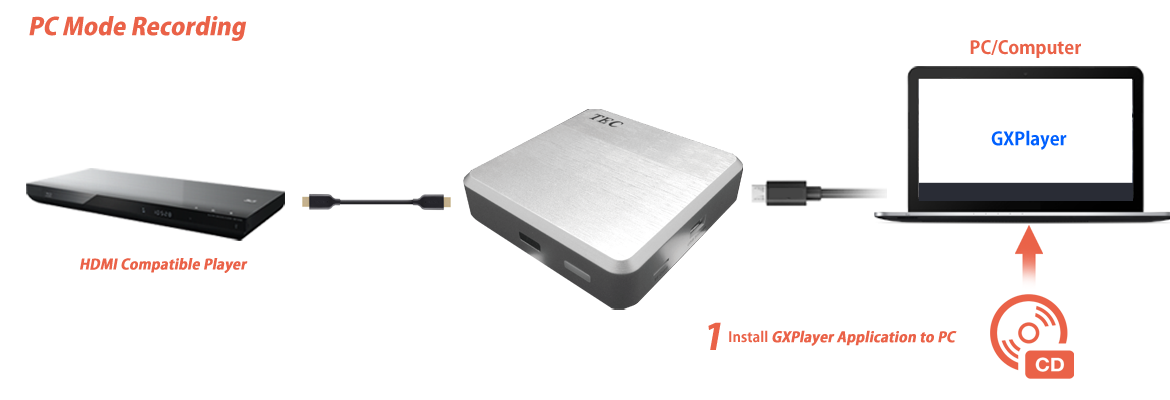

PC software installation CD (Windows only)
Warranty Period1 year

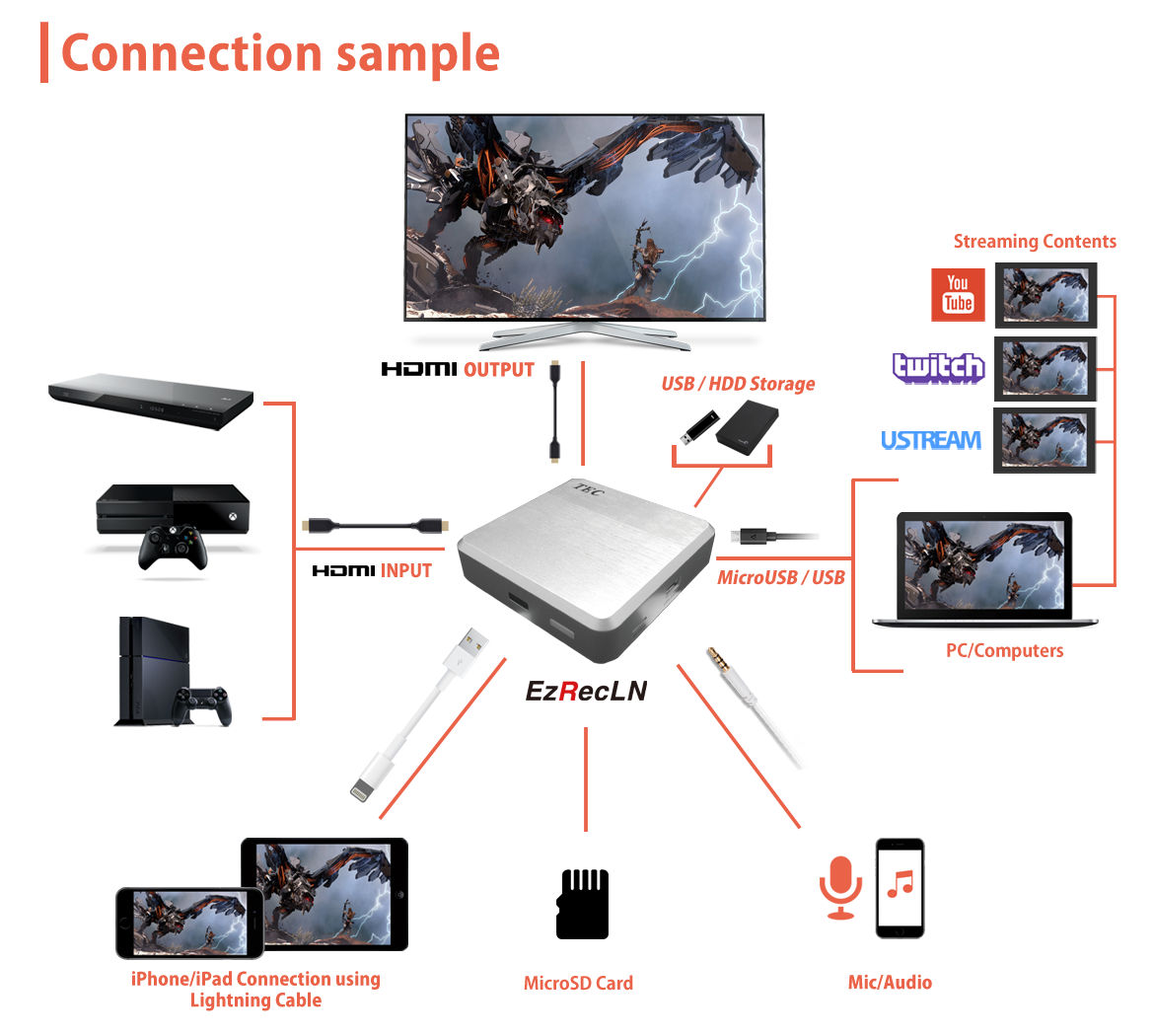

This product will be active in those scene:

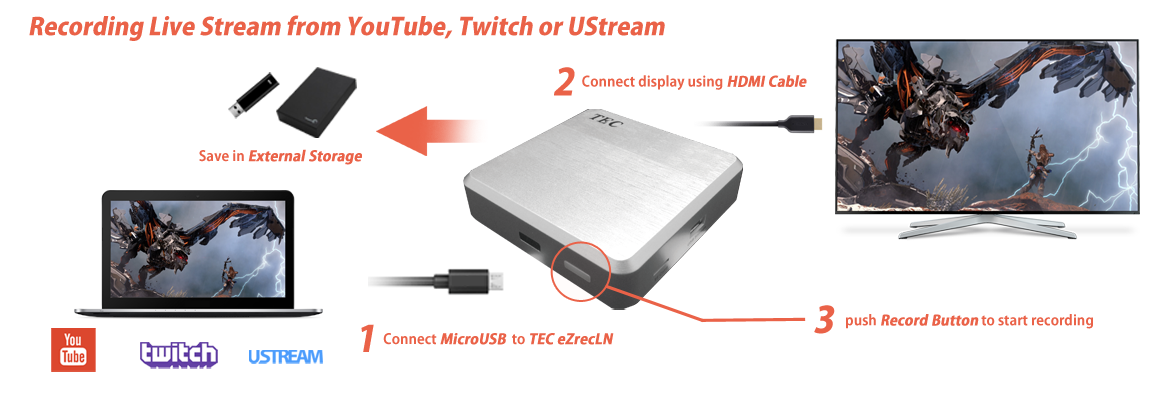

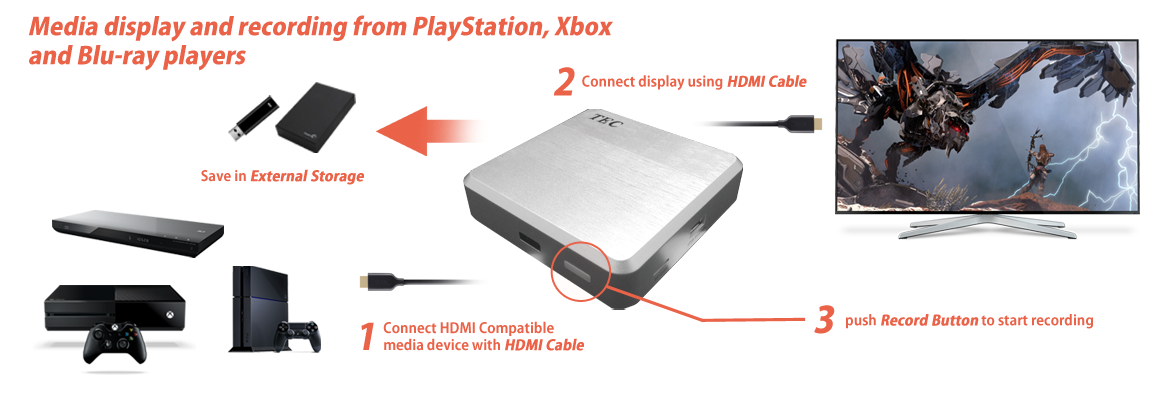

- For saving live broadcasting of game playing (this product corresponds to pass through output that not affected by delay. You can save presence of game playing since it supports mic input).

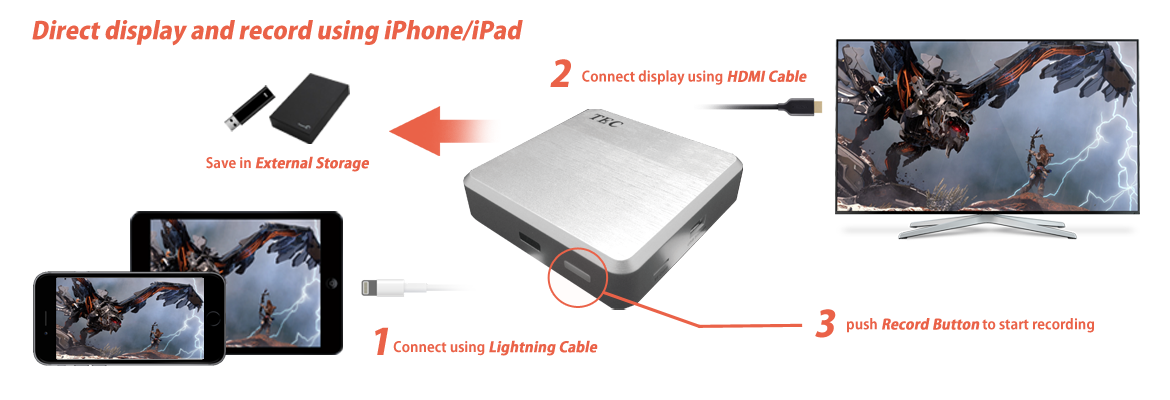

- For saving operation display (We recommend to use for business like video data for presentation since this product can save operating of smartphone, tablet, PC, or video equippment).
*HDMI output conversion cable or HDMI output port is required depending on products. Please confirm before using.
