TMREC-4KS HDMI Media Recorder with 4K60P Input Support
Model No.:
TMREC-4KS
JAN:
4533239033809
| Model Number | TMREC-4KS |
| JAN Code | 4533239033809 |

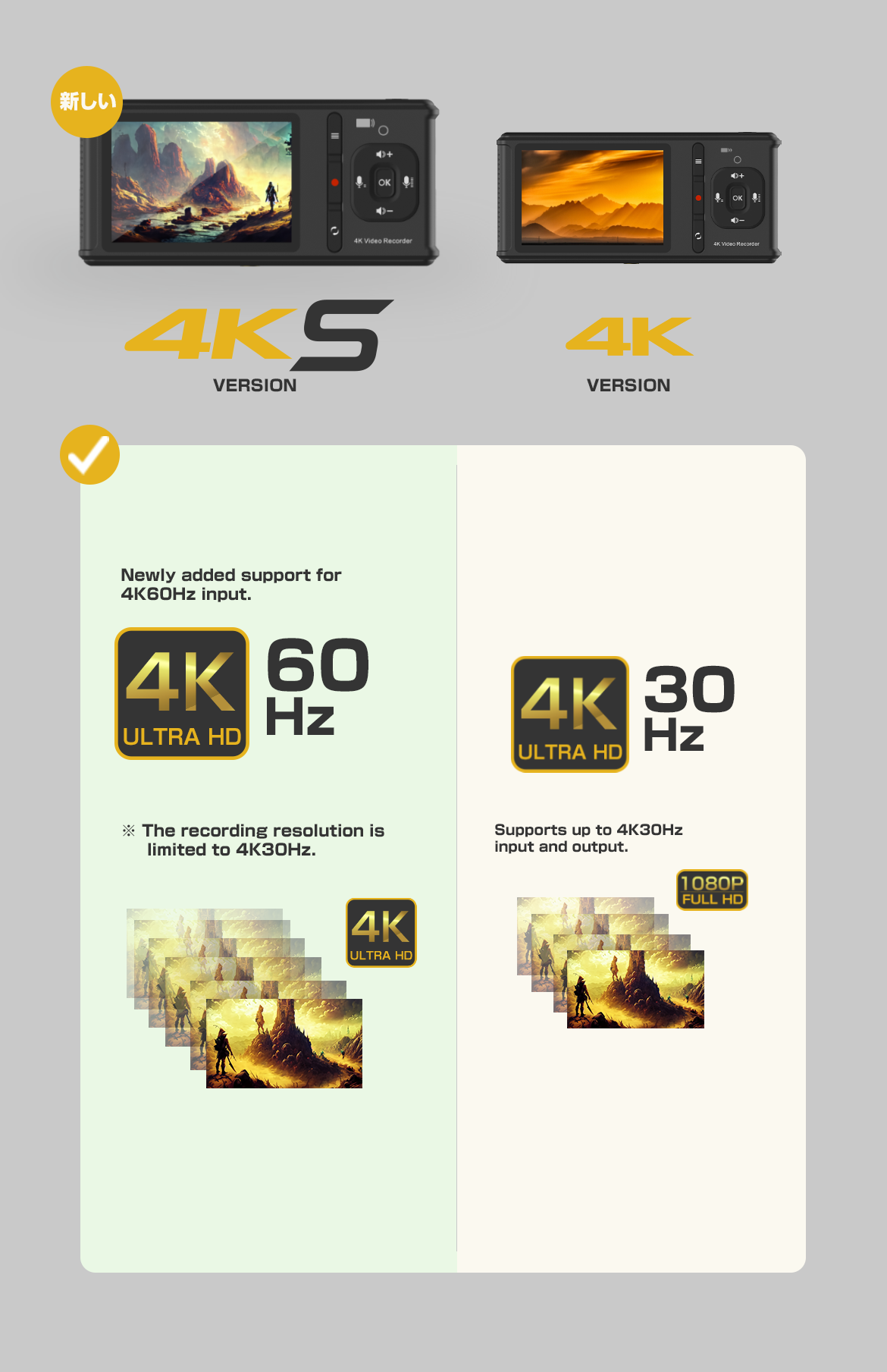

| Supported Input Resolutions | 3840×2160 (60p/30p), 1920×1080 (60p/50p/30p/25p/24p) 1280×720 (60p/50p), 720×576 (50p), 720×480 (60p) |
| HDMI Output Resolution | 1920×1080 (60p) |
| Recording Resolution | HDMI input: 3840×2160 (60p/30p), 1920×1080 (60p), 1280×720 (60p) Composite input: Auto-detect 720×480 (3:2) or 640×480 (4:3) Fixed at 640×480 (4:3) ※Recording bitrate for AV input is 5Mbps |
| Recording Format | MP4 (H.264) |
| Composite Input | NTSC, PAL compatible |

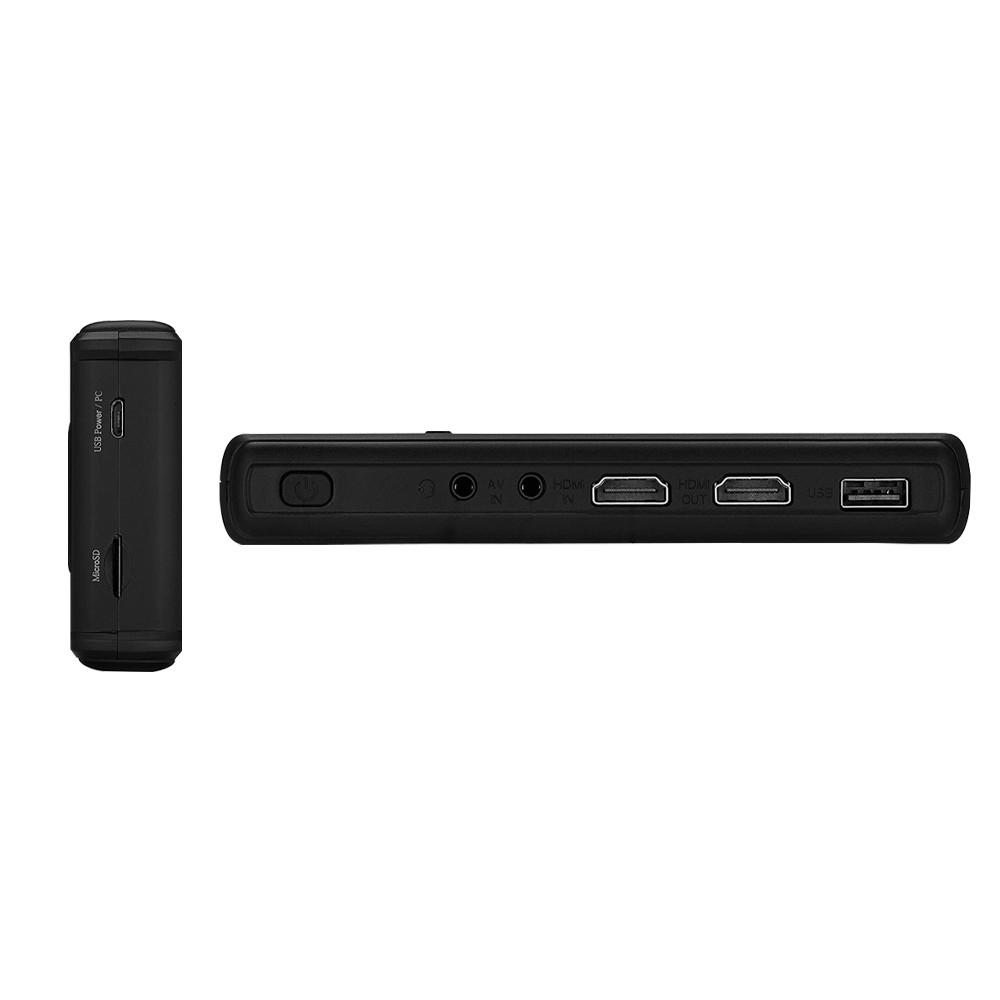

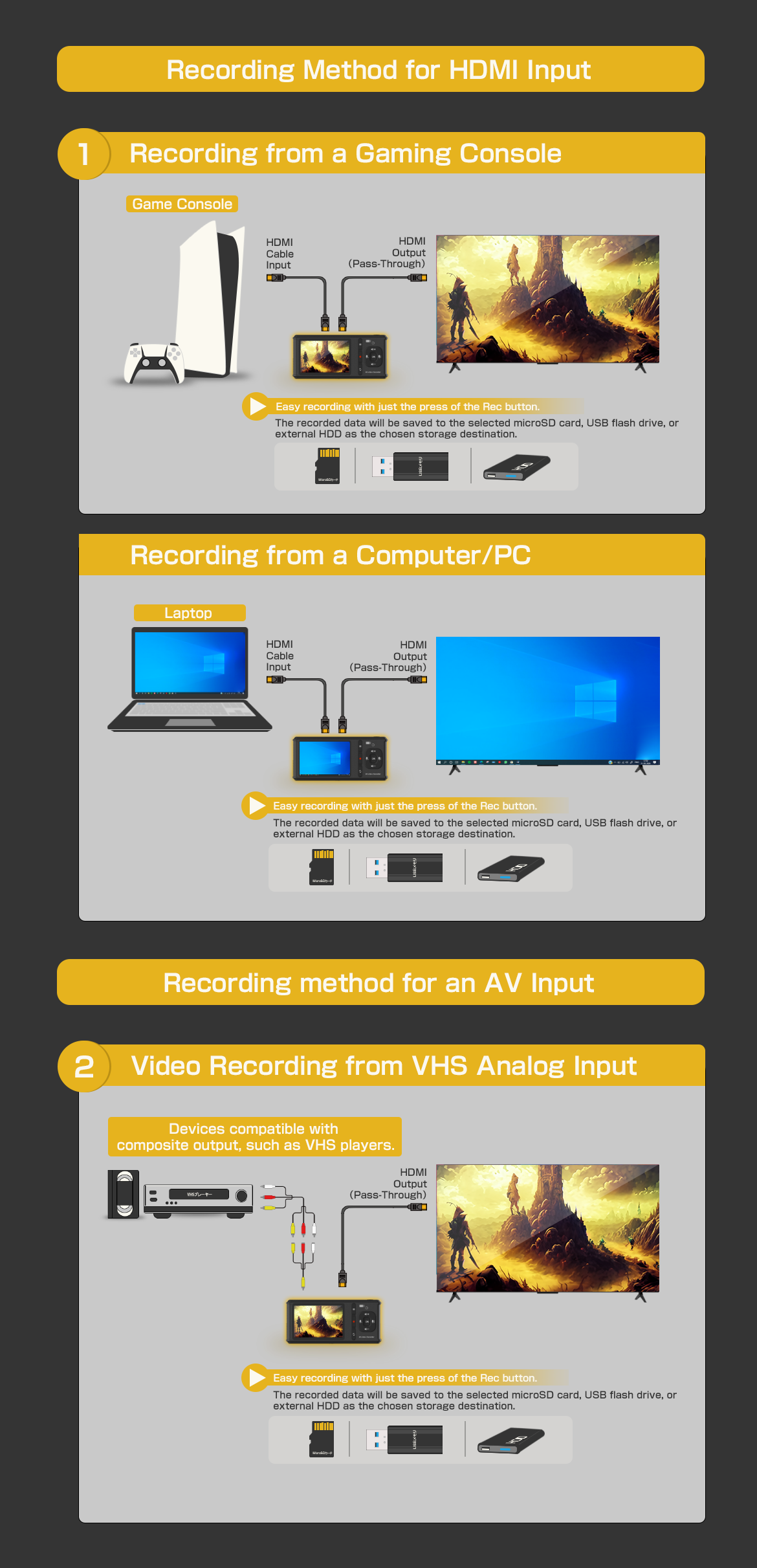

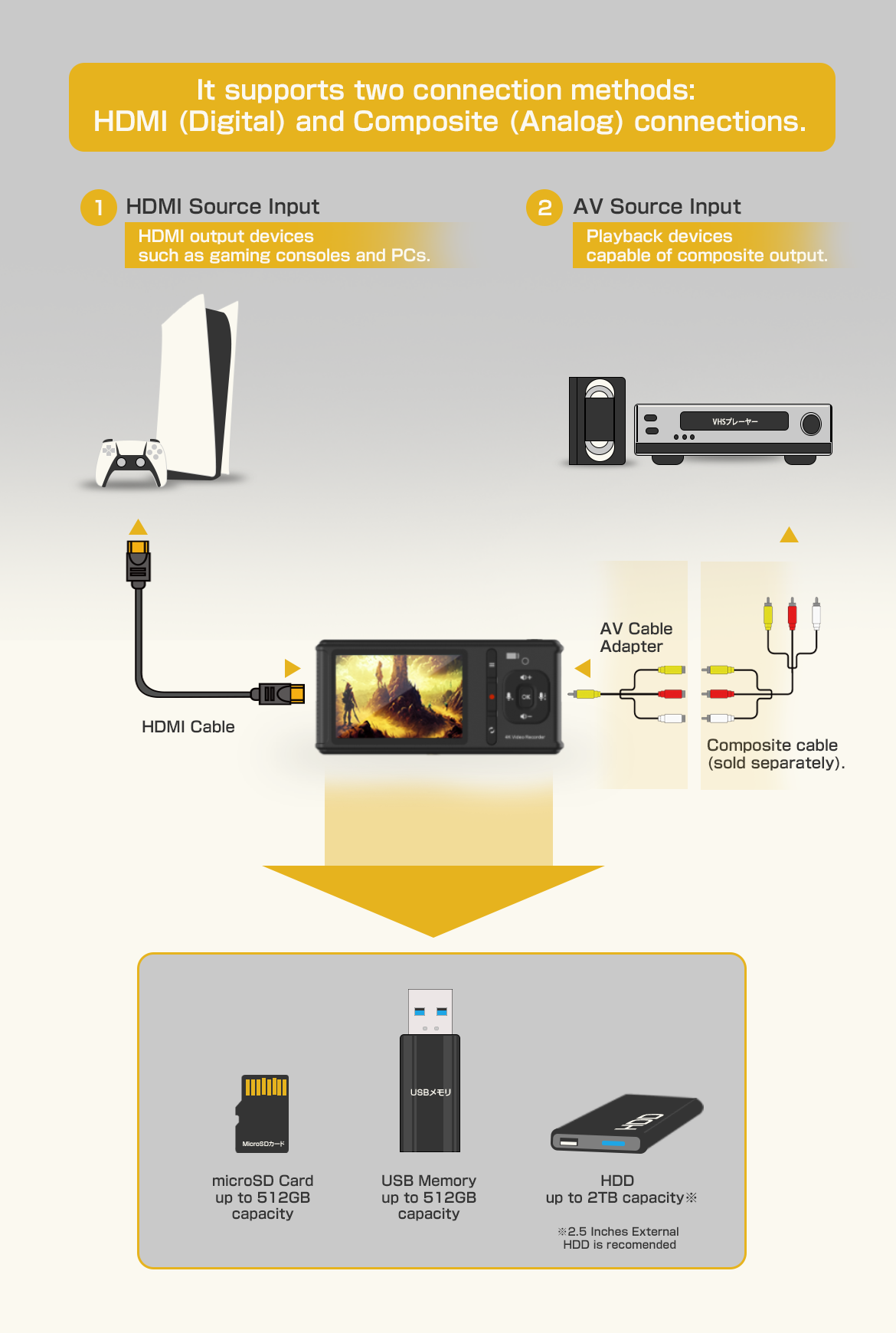

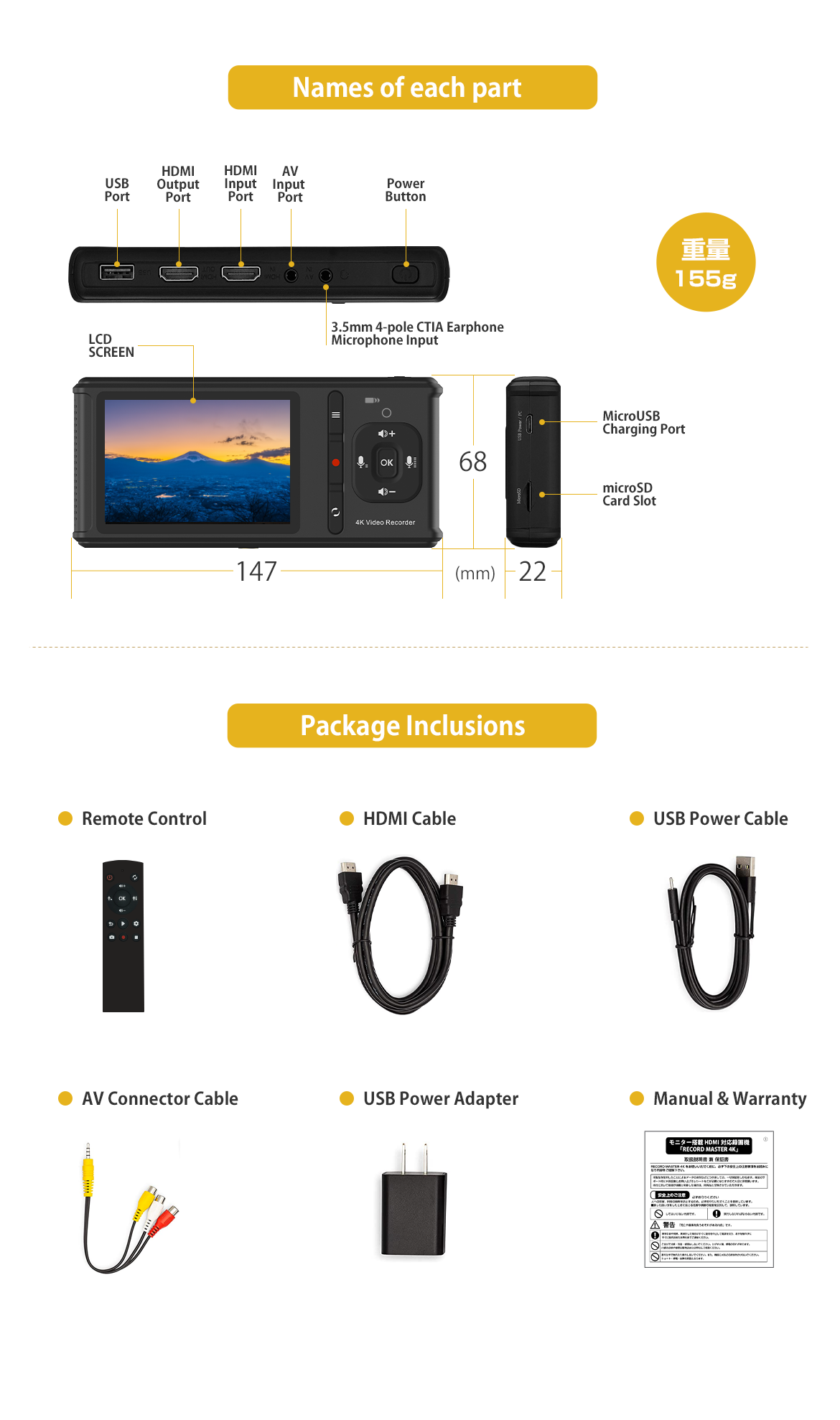

| Input Terminals | HDMI, AV, Earphone (4-pole CTIA earphone microphone), Micro USB |
| Output Terminals | HDMI, Micro SD, USB, Earphone |
| Supported File Systems | FAT32, NTFS, exFAT |
| Recording Capacity Per File | Up to 32GB (NTFS / exFAT), 4GB (FAT32) |
| Recording Bitrate | 30 / 25 / 20 / 15 / 10 / 5 (Mbps) |

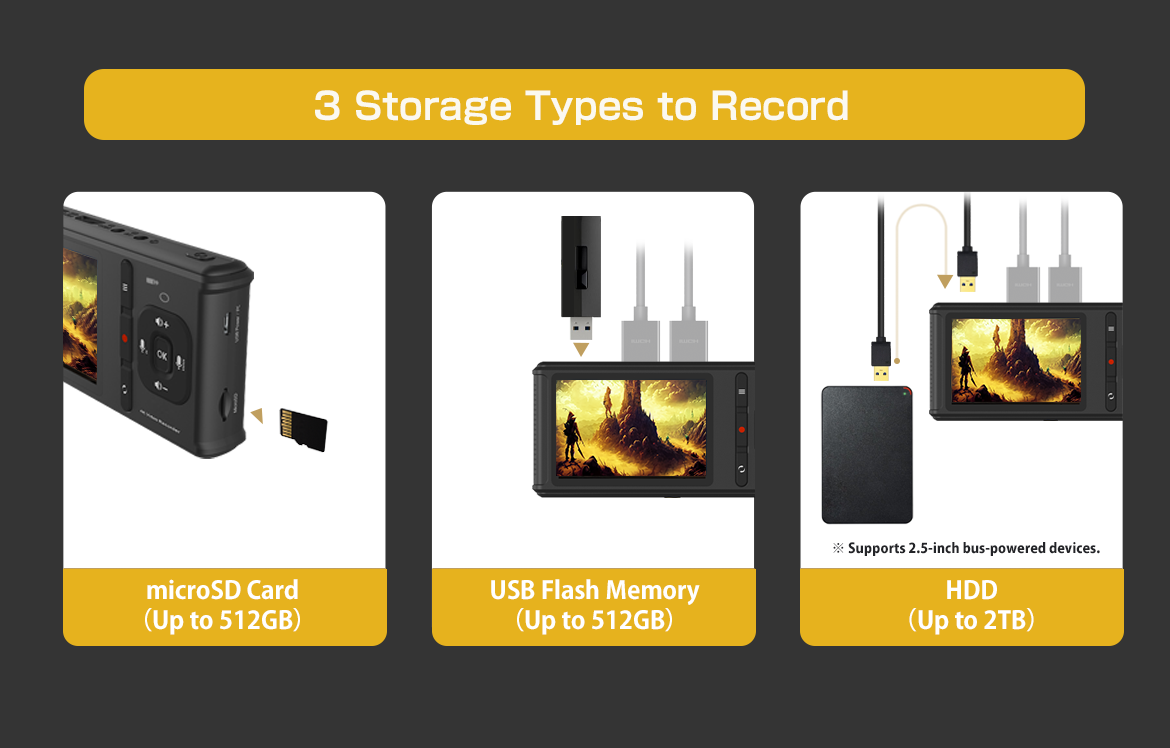

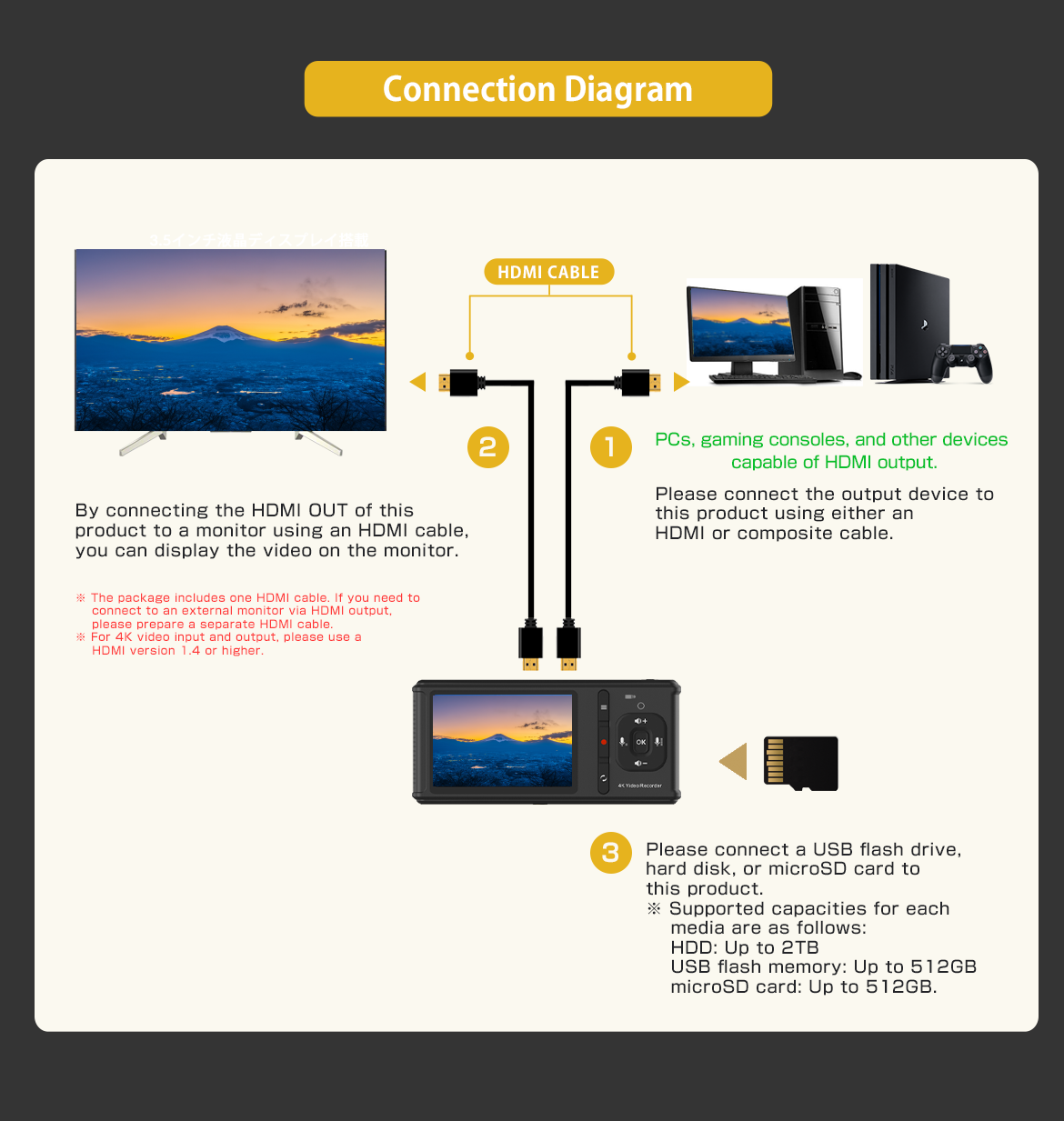

| Compatible Storage | 512GB (USB Flash Drive / microSD), HDD 2TB (2.5 inches recommended) |
| Product Dimensions | W142 × D68 × H22mm |
| Weight | 155g |
| Built-in Speaker Output | 1W |
| Power Supply | DC 5V, 2A |
※This product does not guarantee operation with all connected devices.
※This product does not include PC streaming software or capture software.
※Audio noise may occur when playing video with this product.
※Software usage methods when connecting to PC are not covered by support.
※To prevent accidents and malfunctions, do not store in places exposed to direct sunlight such as car dashboards, inside vehicles, or near windows, and do not use or store near fire, in high temperature, or high humidity locations.

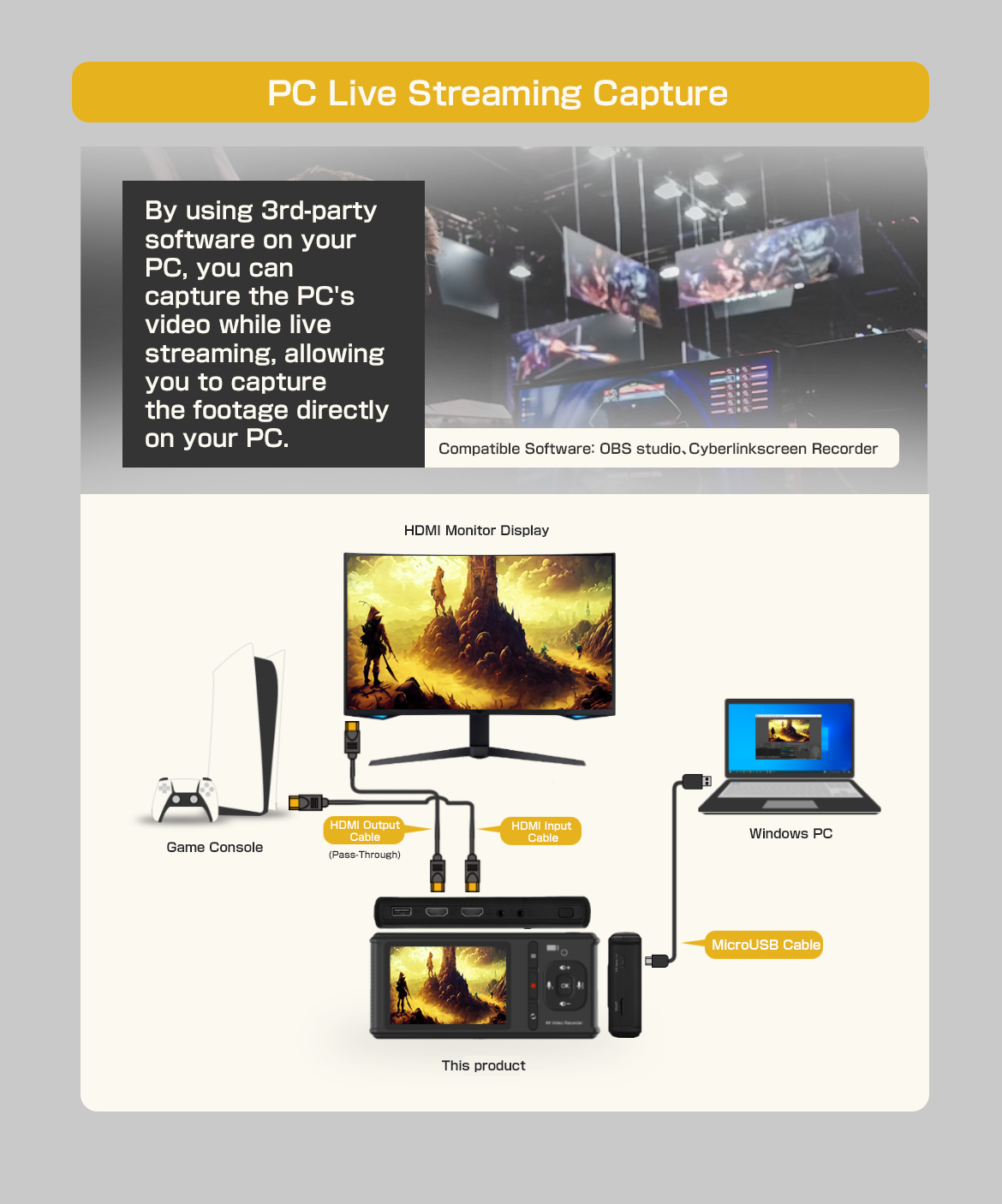

※PC connection for this product is Windows only.
※Playback on this device is limited to videos recorded using this product only. Files not recorded by this device cannot be played back.
※This product does not guarantee connection and operation with all connected devices and recording media.
※When formatting microSD cards and USB memory with this product, they will be formatted in FAT format (up to 4GB). When recording with 32GB, please change the format to exFAT or NTFS and format using a PC.
※When connecting to a monitor via HDMI output from this product, video will not be displayed on the product's LCD screen.
※This product simultaneously captures thumbnails (.jpg) for device playback during recording.
ⓘ When recording via HDMI cable, videos with recording restrictions or encrypted videos may not be displayable, recordable, or streamable.
ⓘ Except for cases permitted under copyright law such as copying for private use, images and audio created using this product cannot be copied, modified, or publicly transmitted without permission from the copyright holder.
ⓘ Knowingly recording copyright-infringing data through digital recording constitutes a violation of copyright law.
ⓘ Please understand that we cannot take responsibility for any other effects resulting from the use of this product, regardless of the above.
