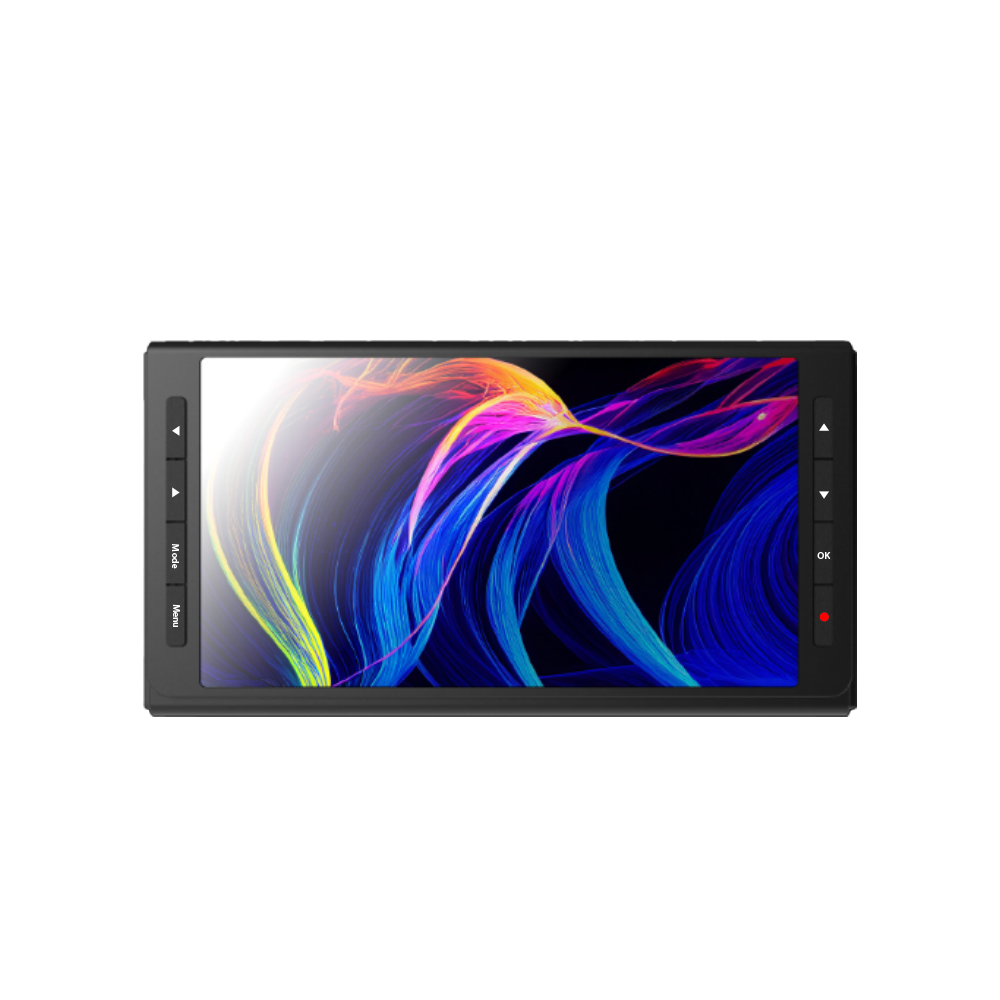

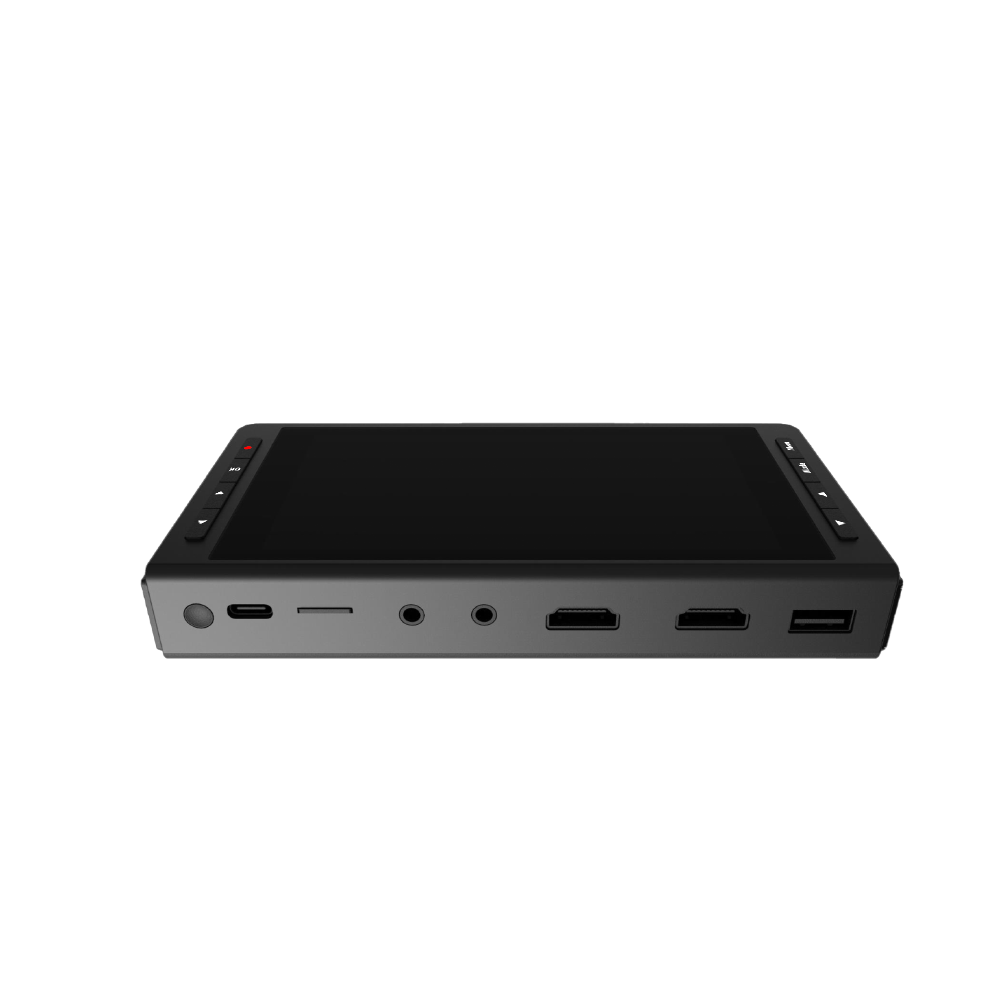

TMREC-4KMAX 4K60P Input Compatible HDMI Media Recorder
Model No.:
TMREC-4KMAX
JAN:
4533239034059
| Model Number | TMREC-4KMAX |
| JAN Code | 4533239034059 |
| Supported Input Resolutions | 3840×2160 (60p/30p), 1920×1080 (60p/50p/30p/25p/24p) 1280×720 (60p/50p), 720×576 (50p), 720×480 (60p) |
| HDMI Output Resolution | HDMI Pass-Through |

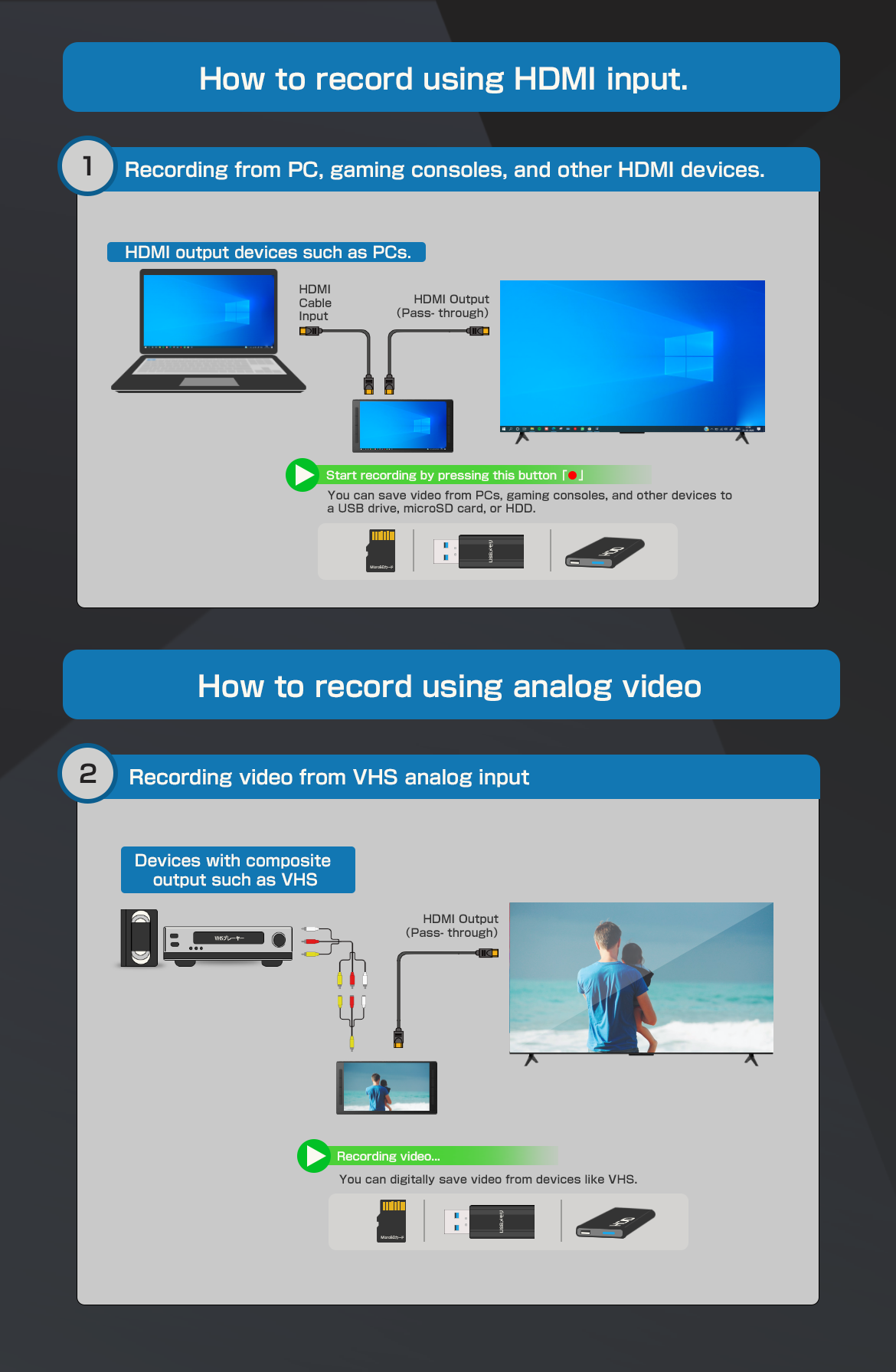

| Recording Resolution | HDMI input: 3840×2160 (30p), 1920×1080 (60p), 1280×720 (60p) Composite input: Auto detection 720×480 (3:2) or 640×480 (4:3) Fixed at 640×480 (4:3) ※Recording bit rate for AV input is 5Mbps |
| Recording Format | MP4 (H.264) |

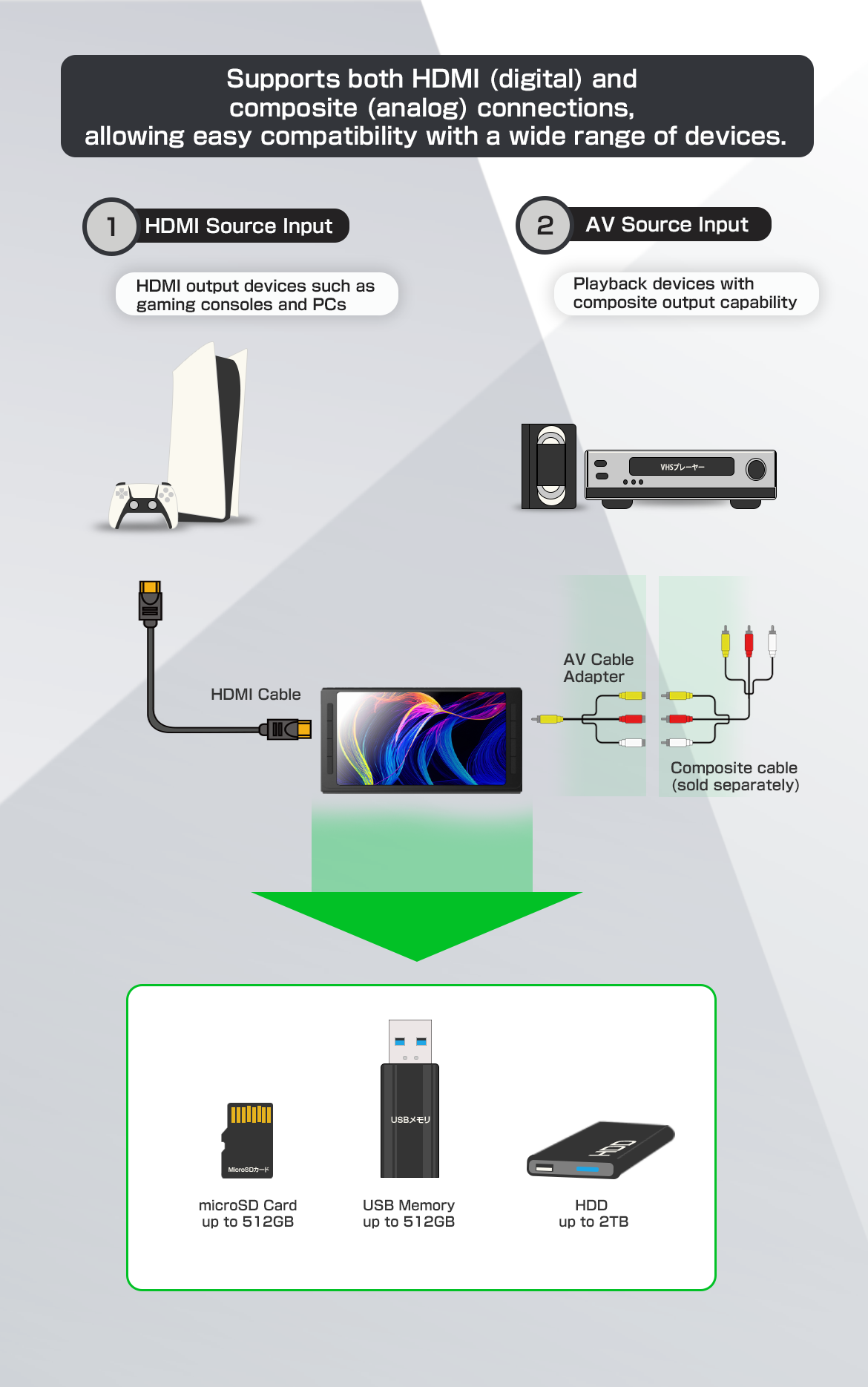

| Composite Input | NTSC, PAL compatible |

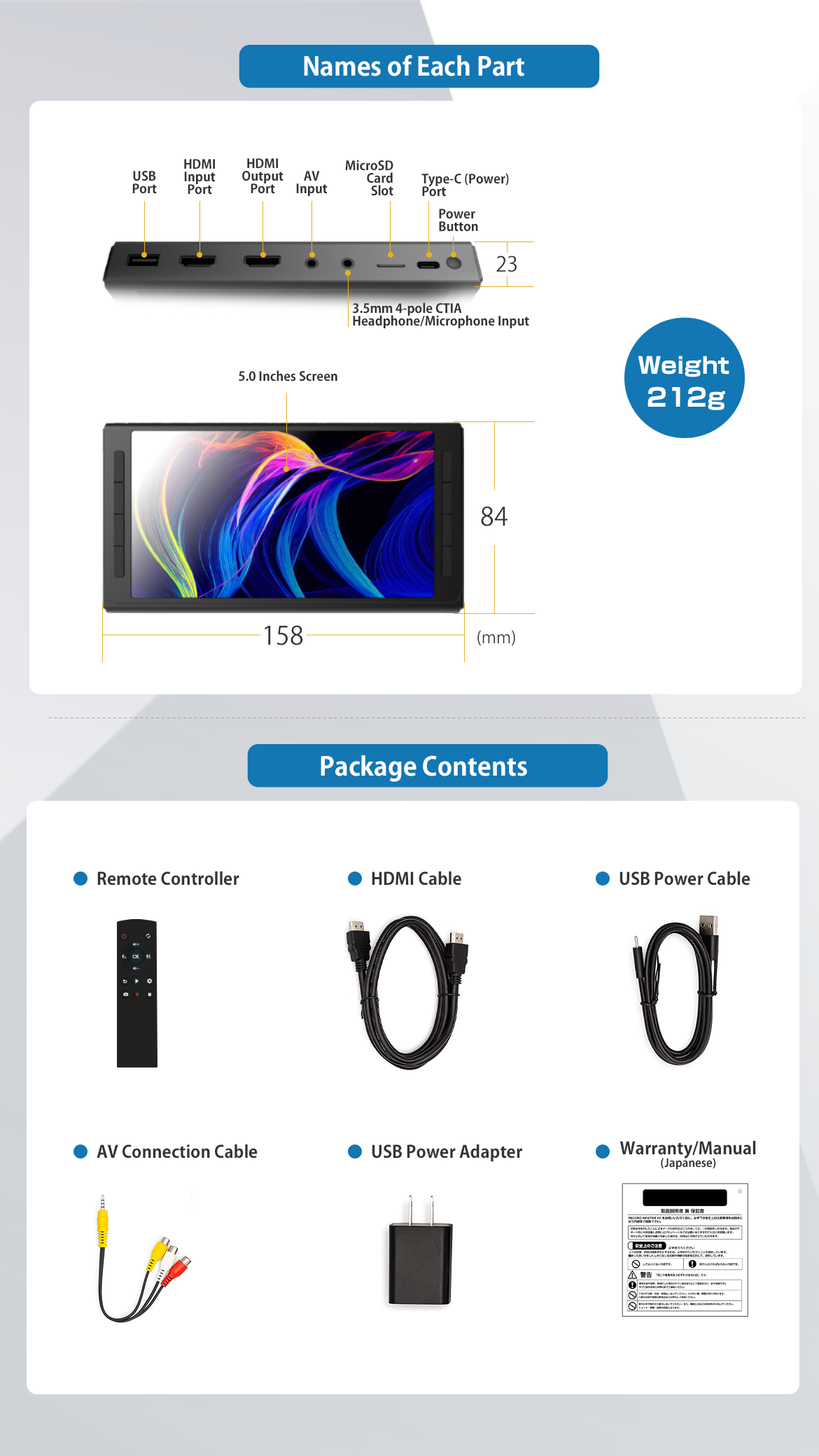

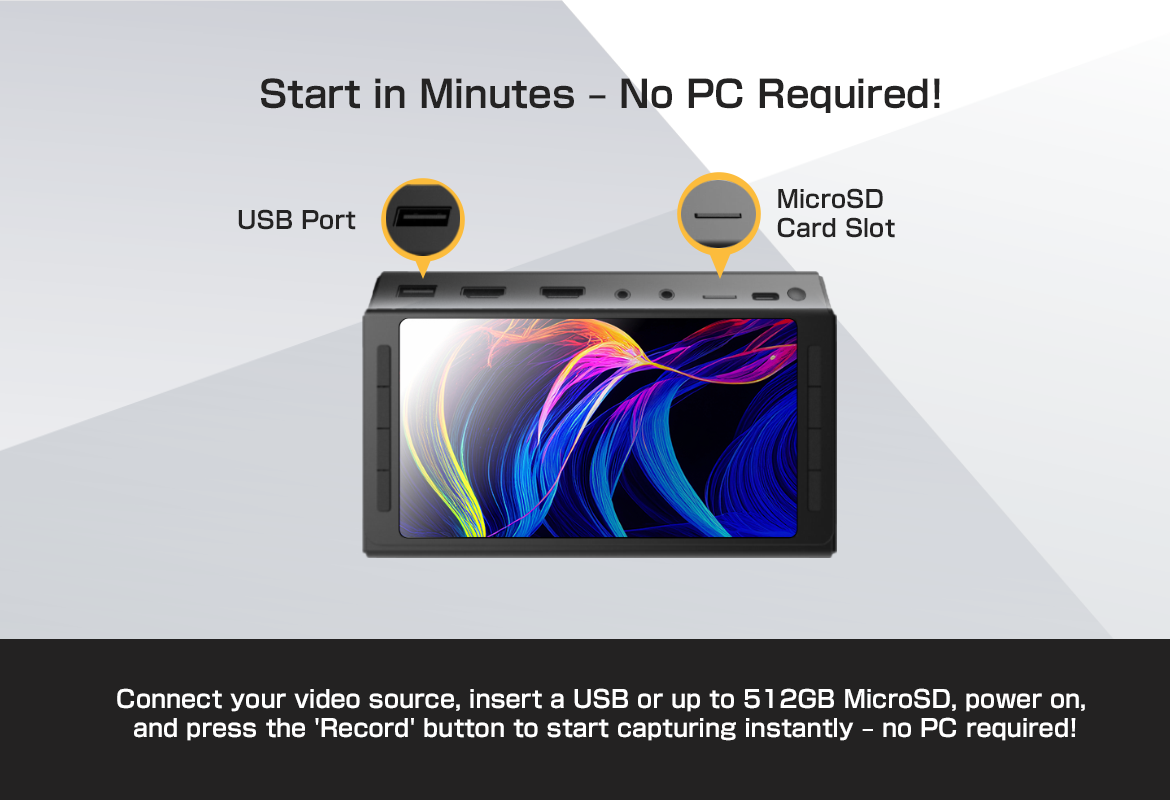

| Input Terminals | HDMI, AV, Earphones (4-pole CTIA earphone microphone), Micro USB |
| Output Terminals | HDMI, Micro SD, USB, Earphones |
| Supported File Systems | FAT32, NTFS, exFAT |
| Recording Capacity Per File | Up to 32GB (NTFS / exFAT), 4GB (FAT32) |
| Recording Bitrate | 30 / 25 / 20 / 15 / 10 / 5 (Mbps) |

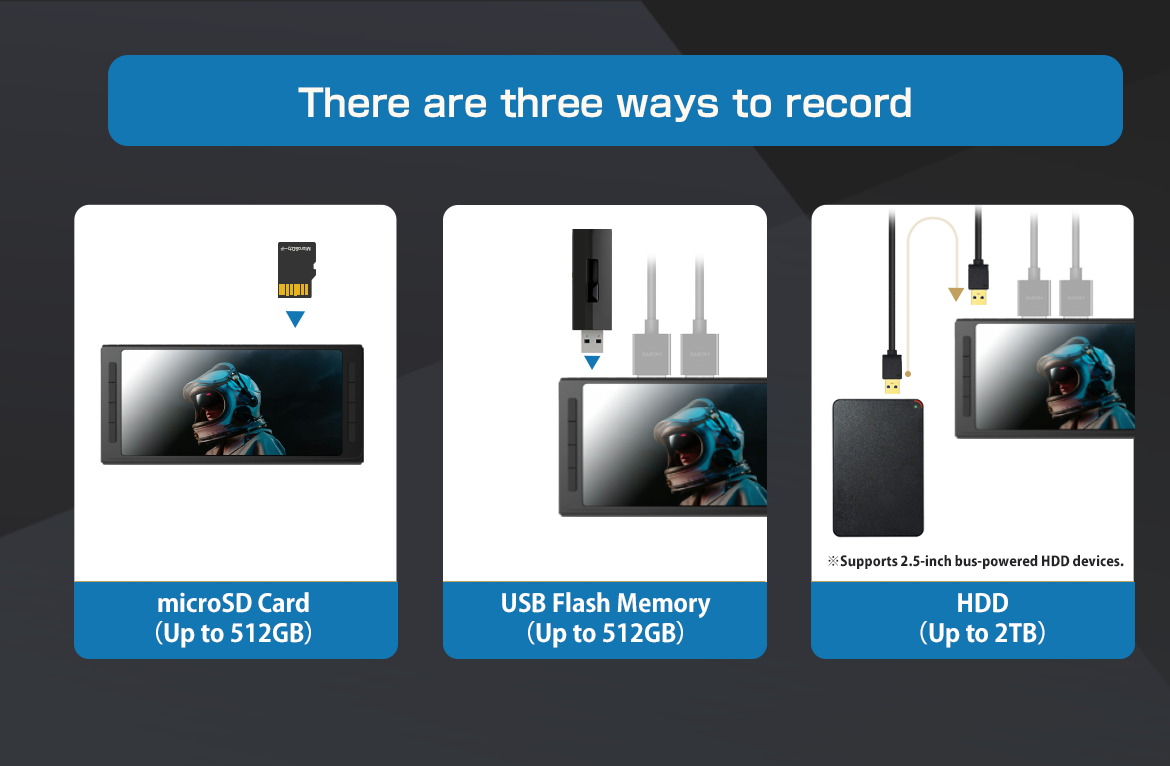

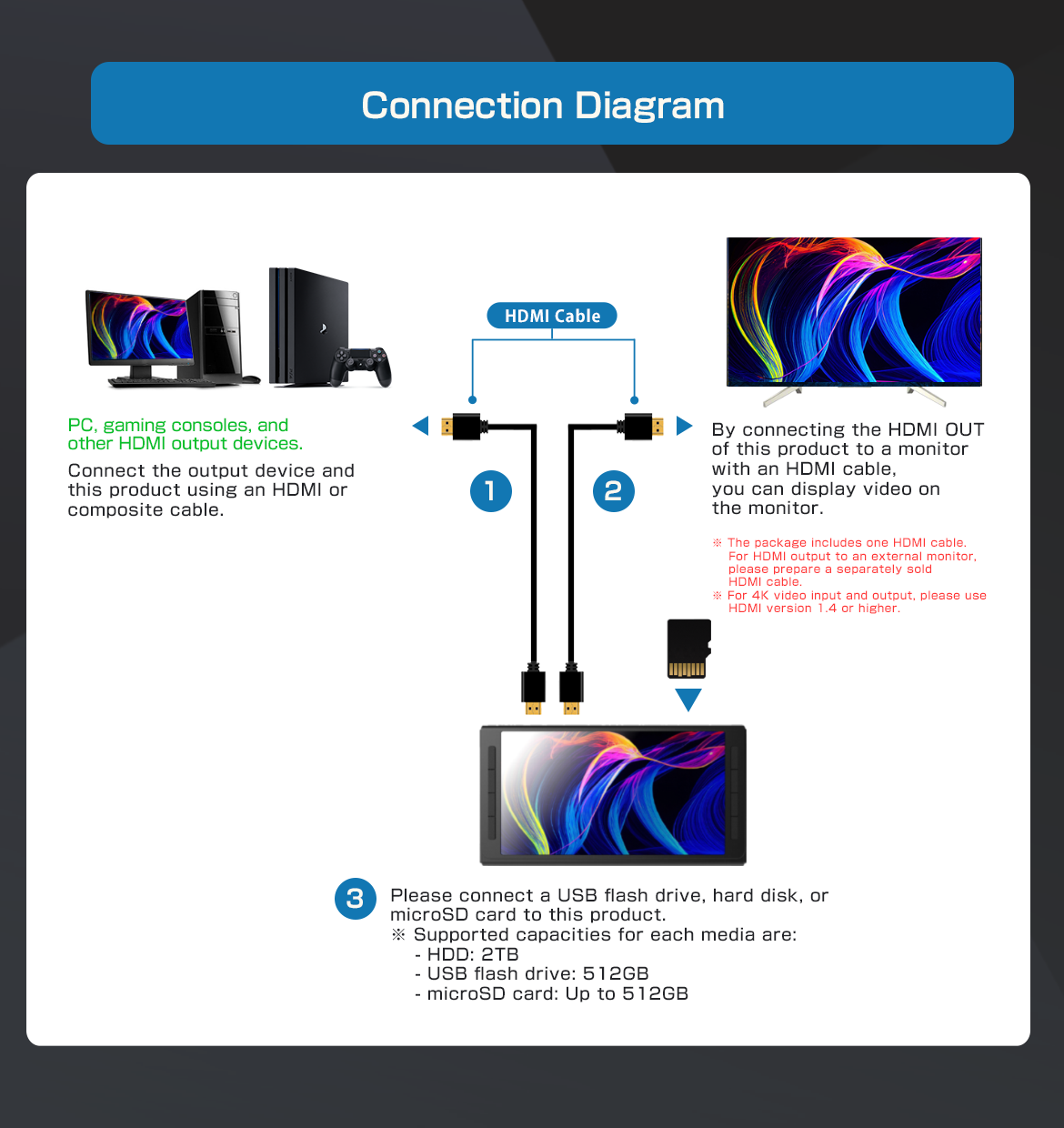

| Supported Storage | 512GB (USB flash drive / microSD), HDD 2TB |
| Product Dimensions | W158 × D84 × H23mm |
| Product Weight | 212g |
| Built-in Speaker Output | 1W |
| Power Supply | DC 5V, 2A |
*This product is not guaranteed to work with all connected devices.
*This product does not come with streaming software or capture software for PCs.
*When playing video with this product, noise may occur in the audio.
*The use of software when connected to a PC is not supported.
*Do not store the product in direct sunlight such as on the dashboard or inside of a car, or near a window, or use or store it near a fire, high temperature, or high humidity, as this may cause accidents or malfunctions.
*Only images recorded using this product can be played on this unit. Files other than those recorded on this unit cannot be played.
*This product does not guarantee connection and operation with all connected devices and recording media.
*When formatting a microSD card or USB memory with this product, it will be in FAT format (up to 4GB). When recording at 32GB, change the format to exFAT or NTFS on your PC and format it.
*When connecting to a monitor with the HDMI output of this product during AV input, the image will not be displayed on the LCD screen of this product.
* When recording using an HDMI cable, it may not be possible to display, record, or stream video that has recording restrictions or encrypted video.
* Except for reproduction for personal use or other cases permitted by copyright law, images and audio created using this product may not be reproduced, altered, or publicly transmitted without the permission of the copyright owner.
* Receiving copyright infringing data and knowingly making digital recordings or audio recordings is a violation of copyright law.
* Please note that we cannot be held responsible for any other effects that may result from the use of this product, regardless of the above.
