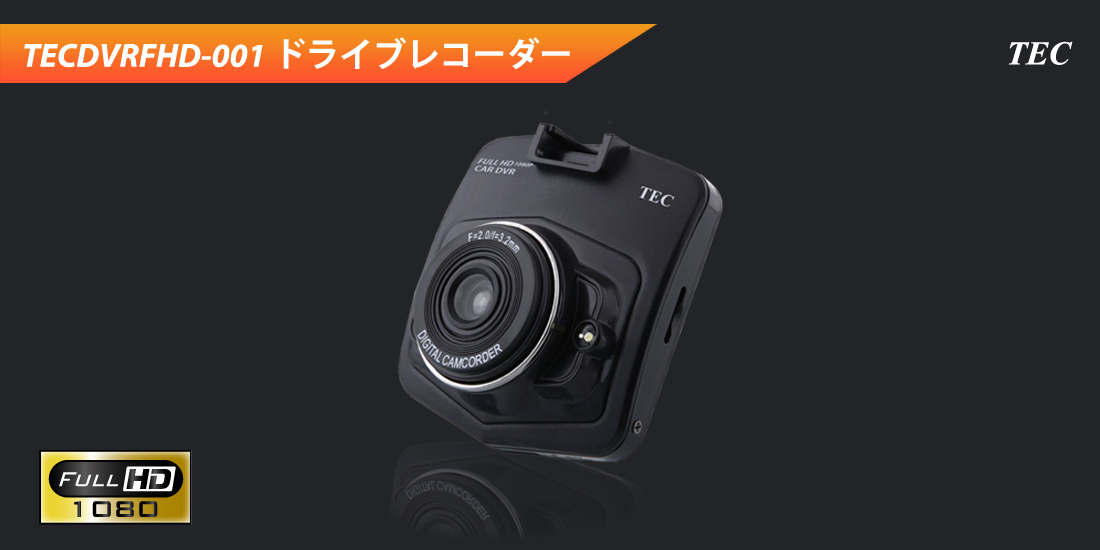

TECDVRFHD-001 Full HD Drive Recorder
Model No.:
JAN:

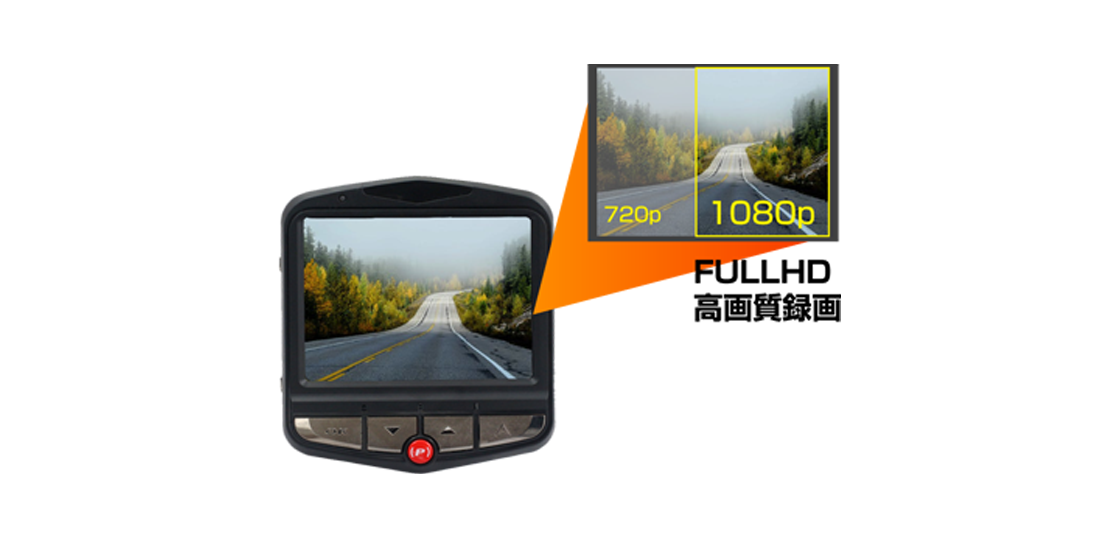

Image Quality at 1080p Full High Definition
TECDVRFHD-001 is a Full HD drive recorder equipped with a 2.4-inch large LCD and a 140° wide-angle lens.


Using 8GB microSD Card

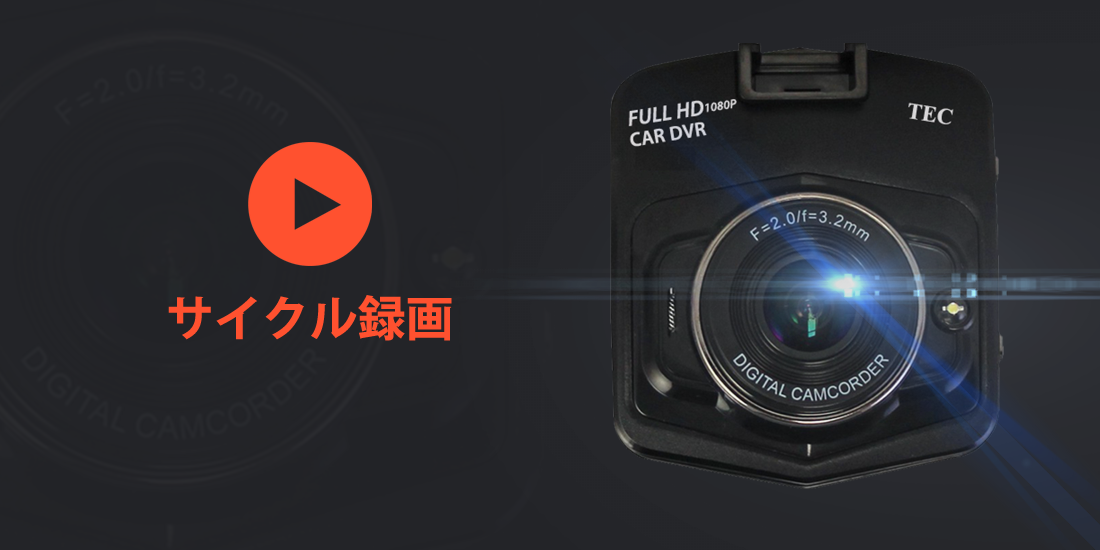

It can record for approximately 90 minutes. When the storage becomes full, it also supports overwrite recording in sequence.
※Based on our actual product testing.

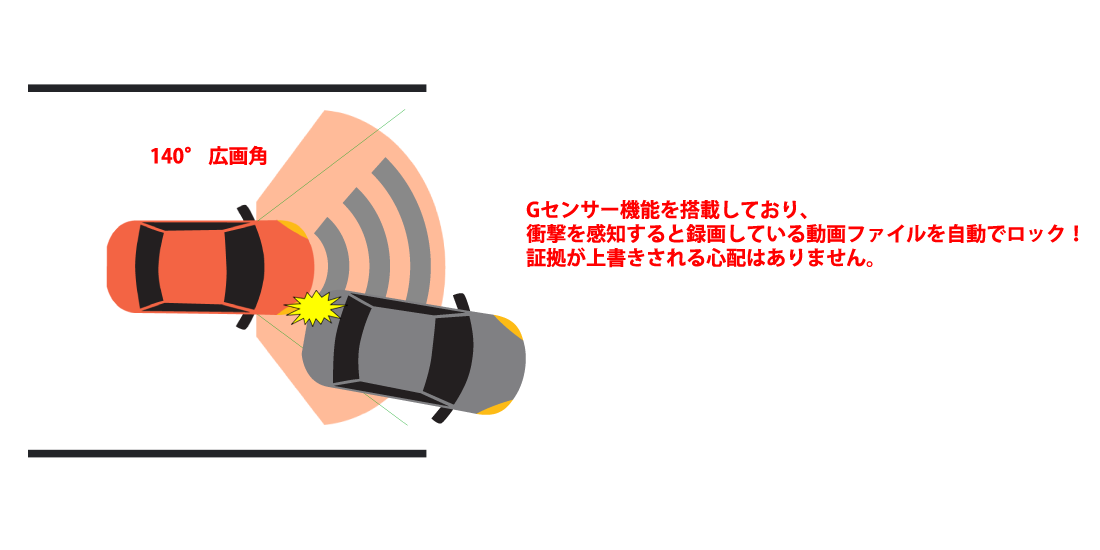

G-SENSOR
In the event of an impact caused by an accident, the G-sensor automatically locks the file. In parking mode, recording starts automatically when an impact is detected, helping with security monitoring. It also includes a built-in battery and useful shooting functions such as image stabilization, timer setting, and continuous shooting.

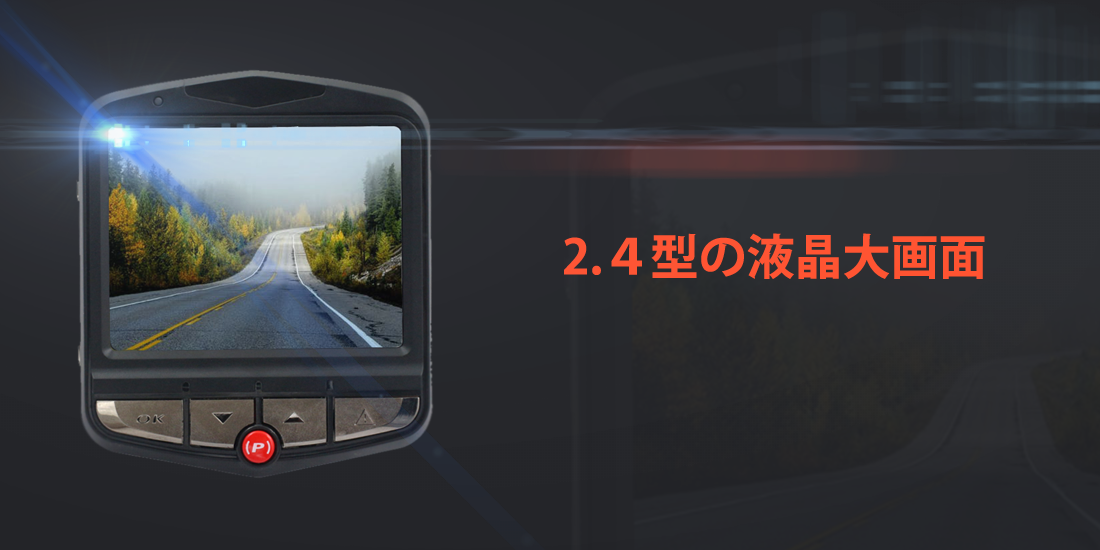

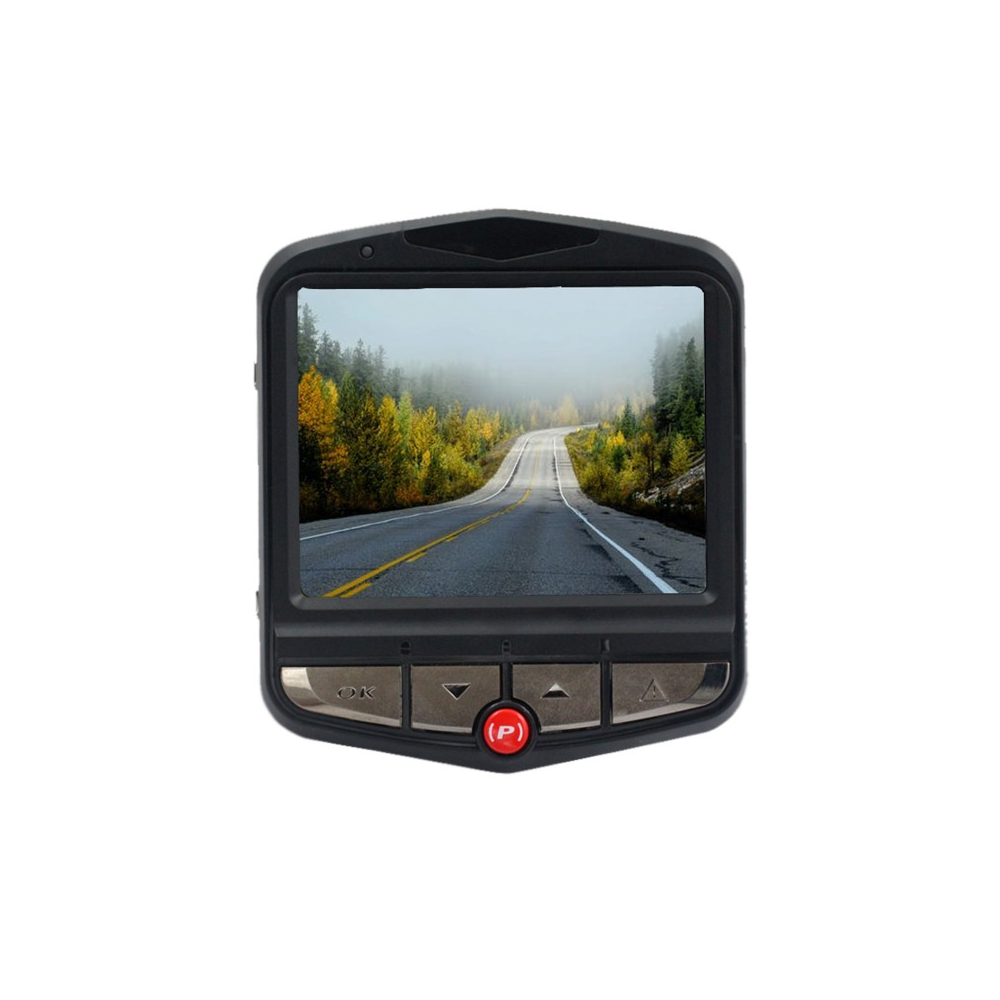

2.4-Inch Large LCD with On-Unit Playback Support
You can play back recorded data directly on the main unit and check footage on the spot. It also features a mini HDMI output port for playback on a larger screen such as a TV. Both the LCD and buttons are designed to be large for easier operation.

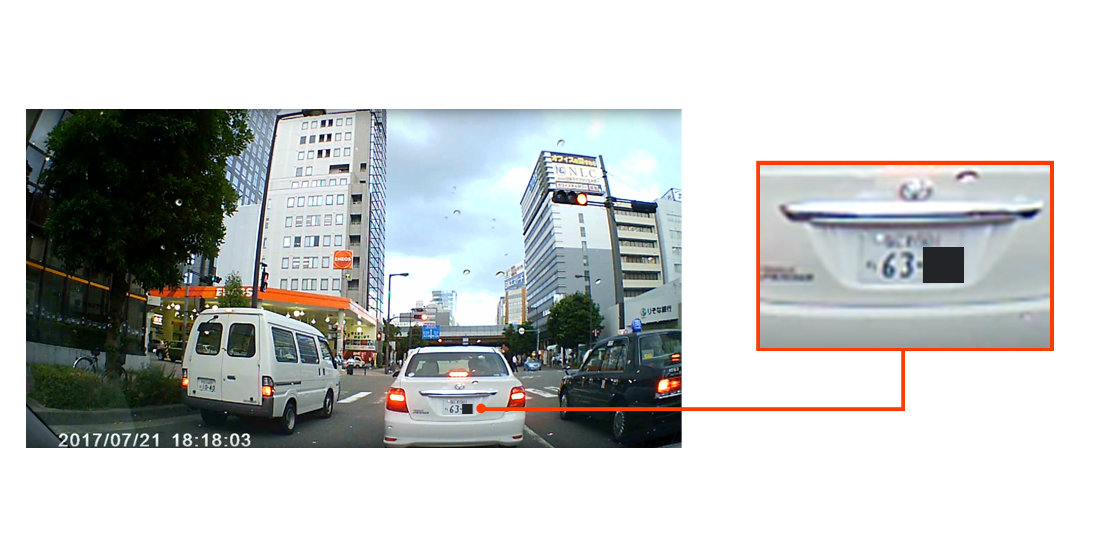

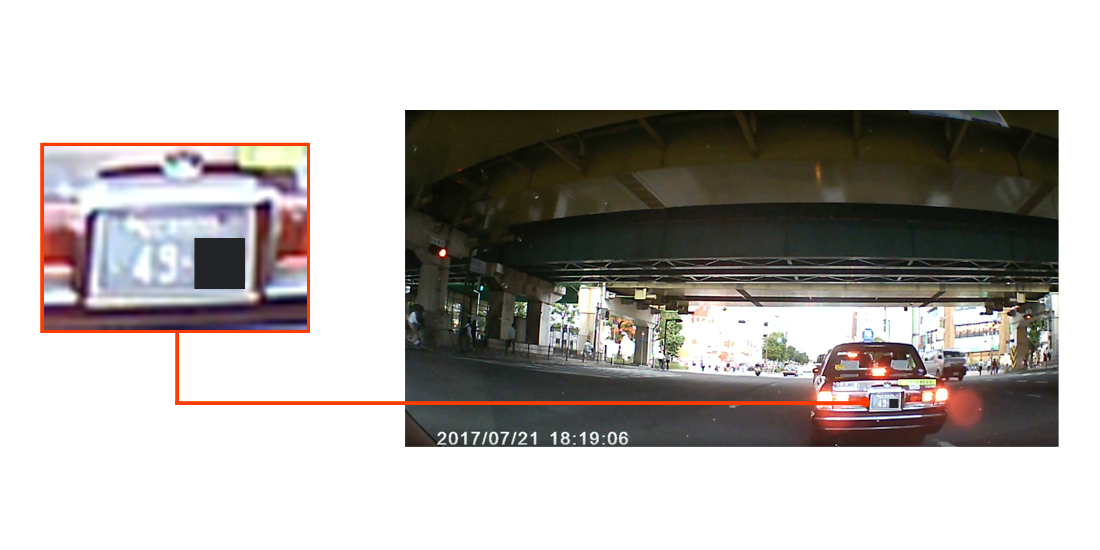

1080FHD 1920*1080 ※Actual Shooting using TECDVRFHD-001
| Model no. | TECDVRFHD-001 |
| JAN | 4533239031904 |
| Image Sensor | 1.3Mega CMOS sensor |
| Resolution | 1080FHD 1920*1080@25fps / HD 1440*1080[30fps]720P 1280*720@30fps / VGA 640*480@30fps |
| Angle of view | 140 degrees (wide angle) |
| Display size | 2.4 inches |
| USB Interface | USB 2.0 |
| Power Supply | Car charger(12V / 24V) |
| Battery capacity | 300mAh |
| Recording media | microSDカード(up to 32GB compatible) |
| Video format | AVI(video)/ JPG(photo) |
| Overwrite recording time | Off / 1 minute/ 2 minute / 3 minute / 5 minute / 10minute |
| Shooting time | Approximately 8GB for 90 minutes shooting |
| Weight | 36g |
| Dimension size | 72mm×62mm×30mm |
| Accessories | USB cable、Car charger (12V/24V Compatible)、Drive recorder holder、instruction manual |
