TDB-FHDGX Full HD Dual Camera Drive Recorder

Model No.:

TDB-FHDGX

JAN:

4533239032949
<span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span>
<span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 1 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 2 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 3 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 4 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 5 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 6 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 7 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 8 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 9 <span>TDB-FHDGX Full HD Dual Camera Drive Recorder</span> thumbnail 10
TDB-FHDGXTDB-FHDGXTDB-FHDGXTDB-FHDGX
TDB-FHDGX
TDB-FHDGX
TDB-FHDGXTDB-FHDGXTDB-FHDGXTDB-FHDGXTDB-FHDGXTDB-FHDGX
Model no.TDB-FHDGX
JAN4533239032949
Power supply voltageInput:12V~24V Output: 5V
Built-in battery capacityDC3.7V 230MA
Rated current750MA
Power consumption4W
Operating temperature-10～+65°C

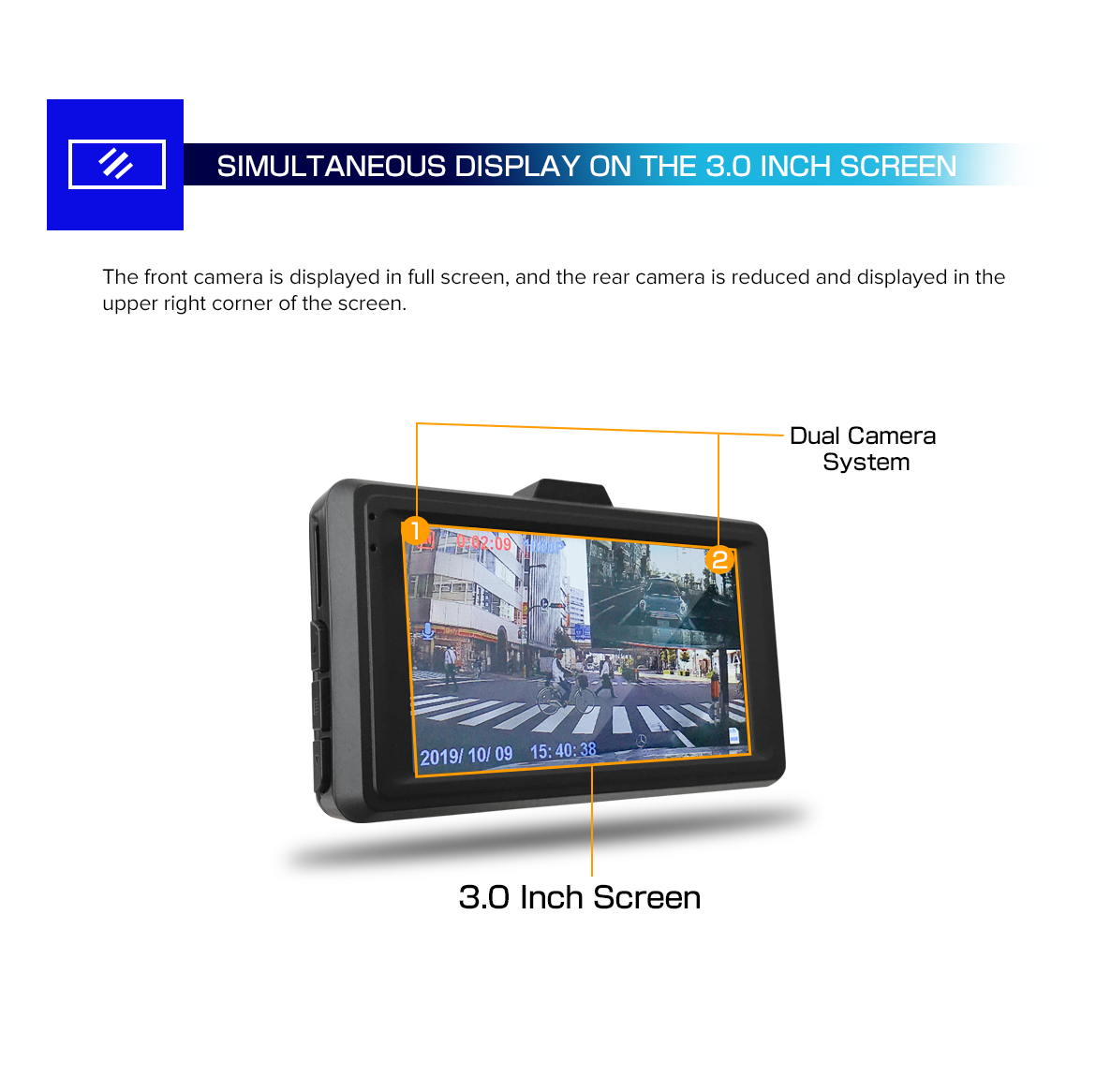

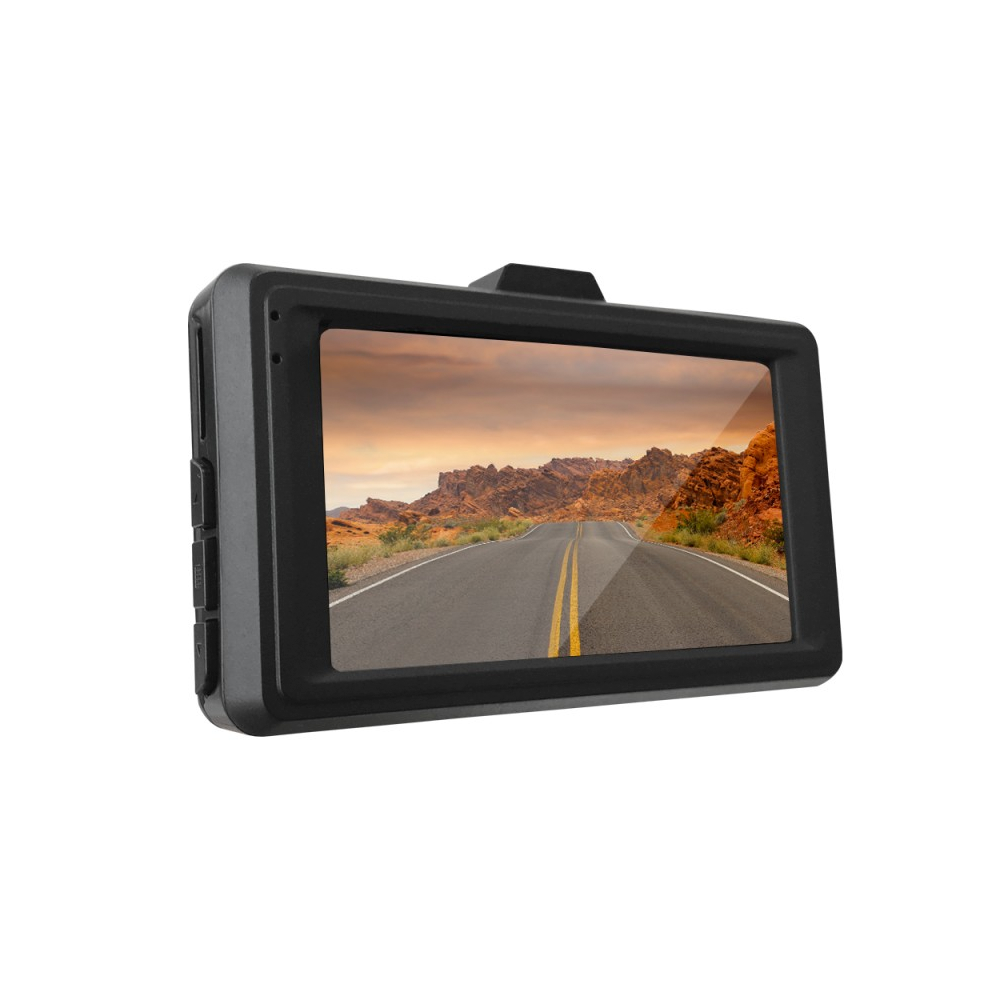

Display3.0 inch, 360 * 640IPS, 40PIN MIPI interface
Compatible SD cardMicroSD card 8 to 32 GB (Class 10) sold separately
Cable lengthCigar socket power cable: 4m (Front camera)
Rear camera connection cable: 5.5m
Rear camera body cable: 0.5m
Package contentsFront camera × 1, Front camera mounting bracket × 1
Rear camera × 1, Rear camera mounting bracket × 1
Power supply cigar adapter × 1, Rear camera connection power cable × 1
Instruction manual and warranty card × 1

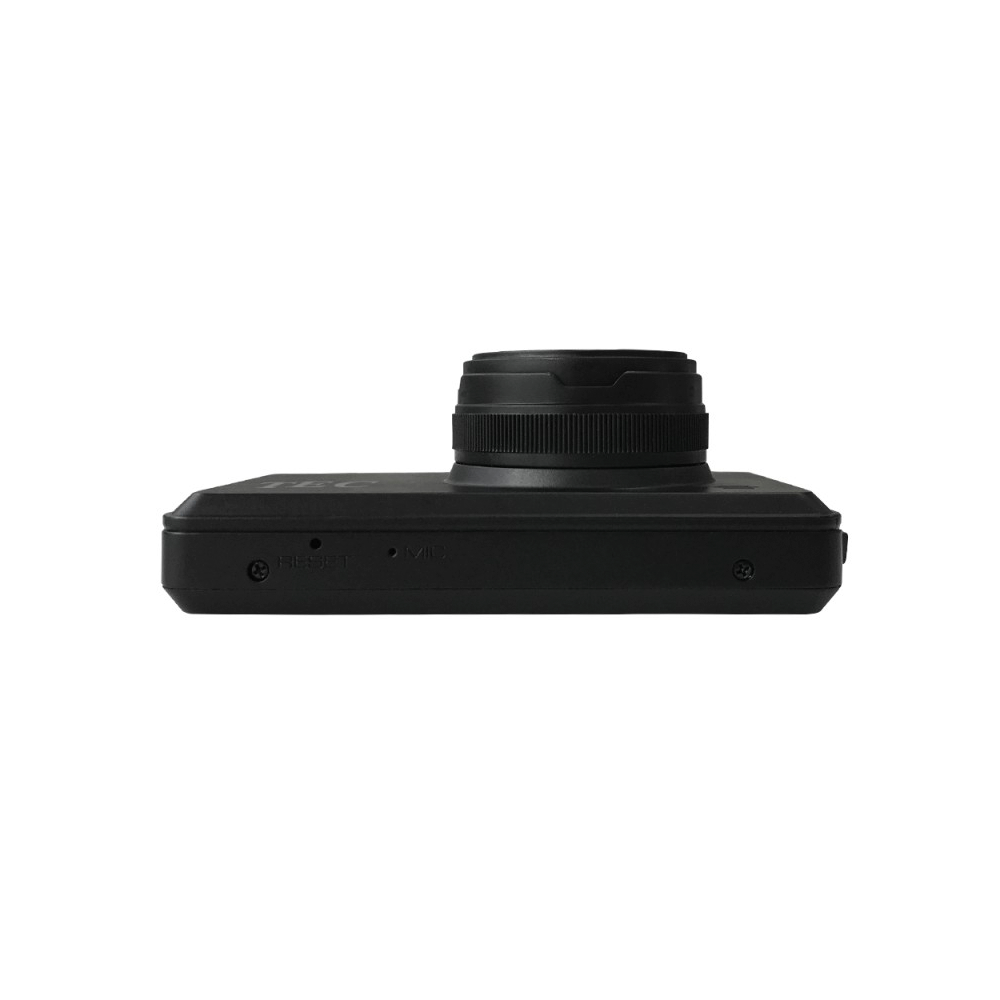

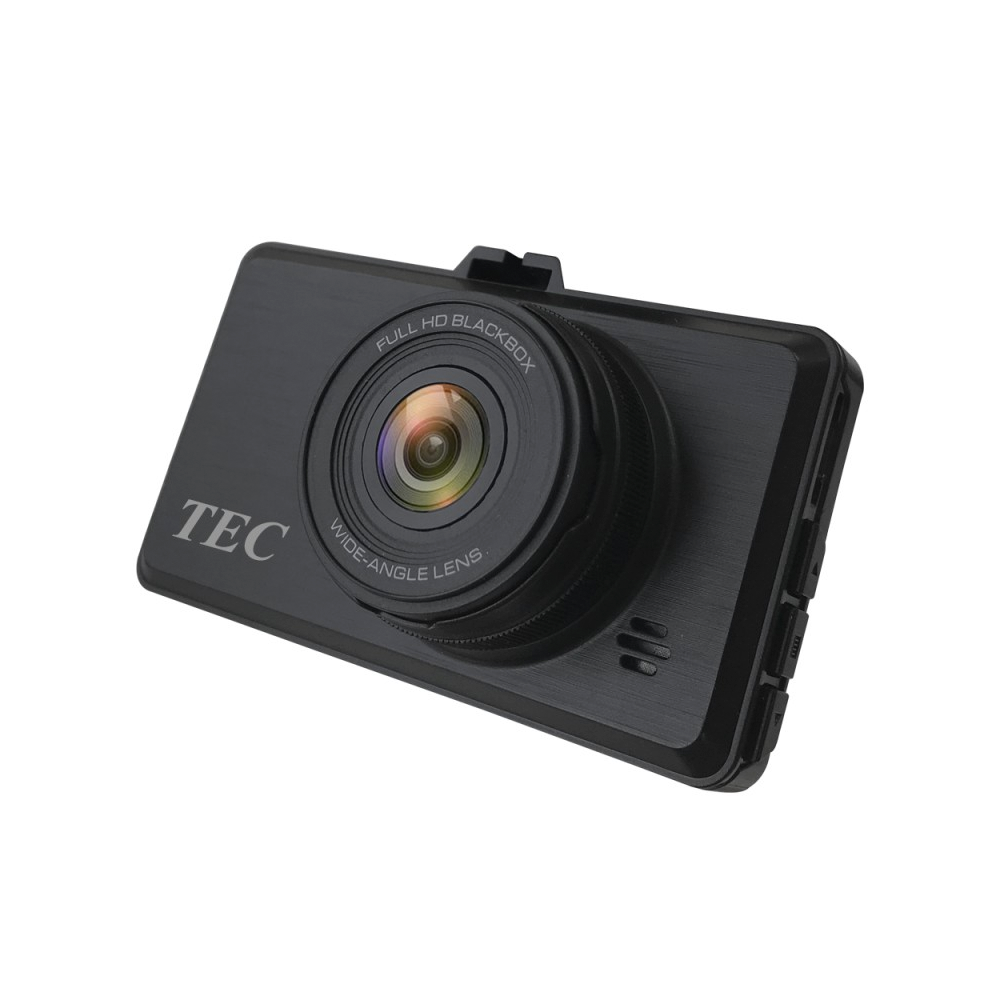

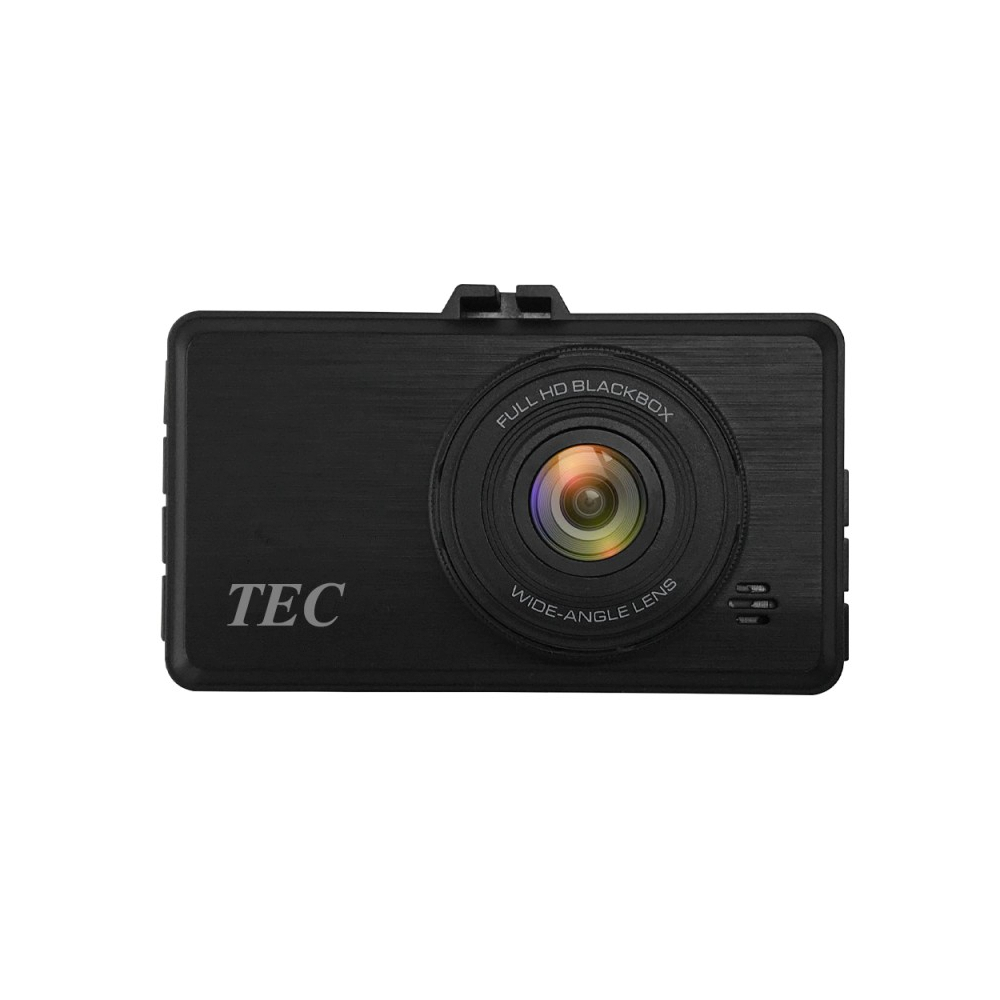

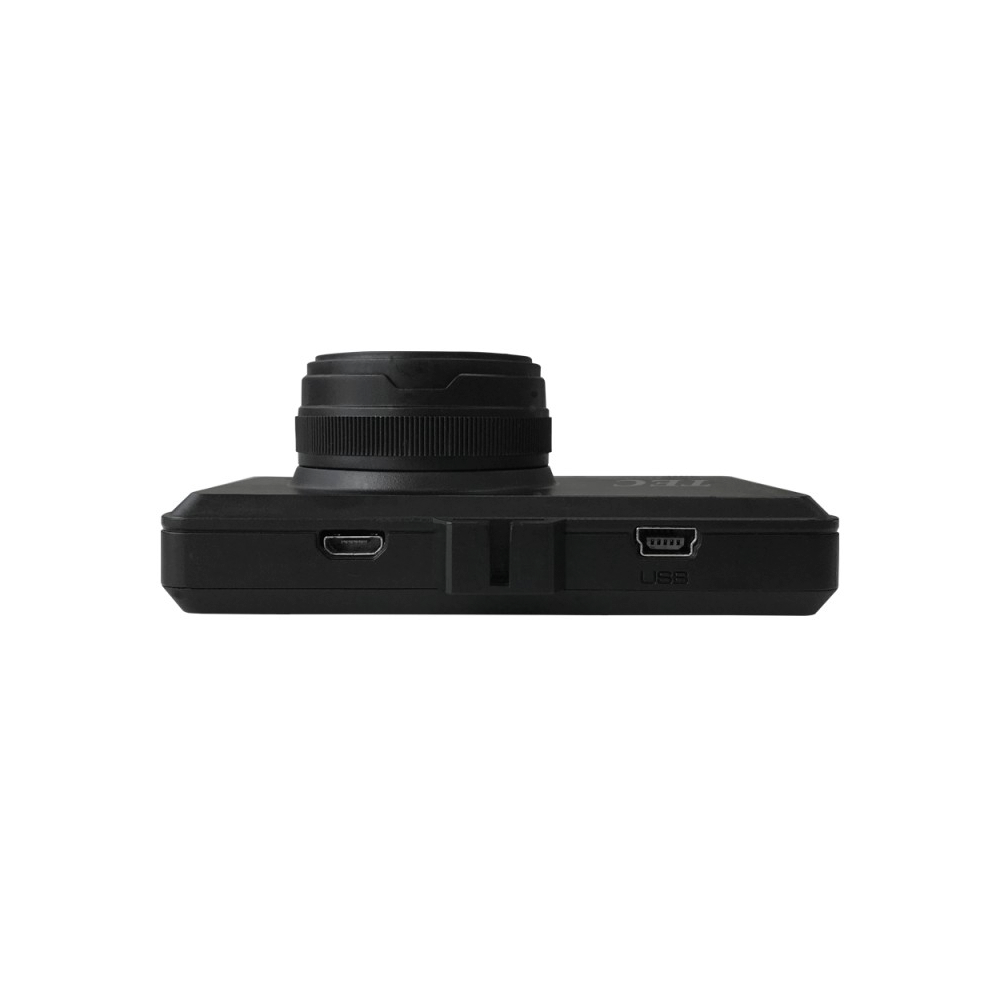

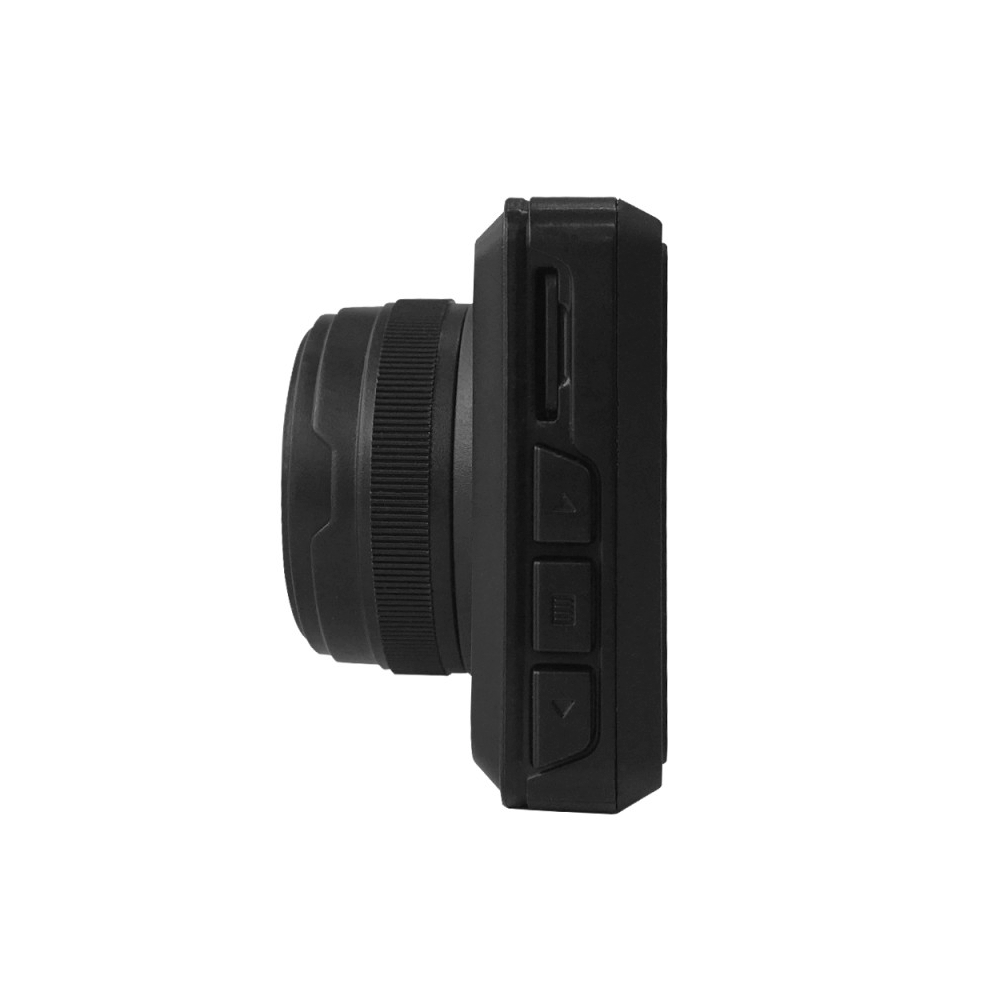

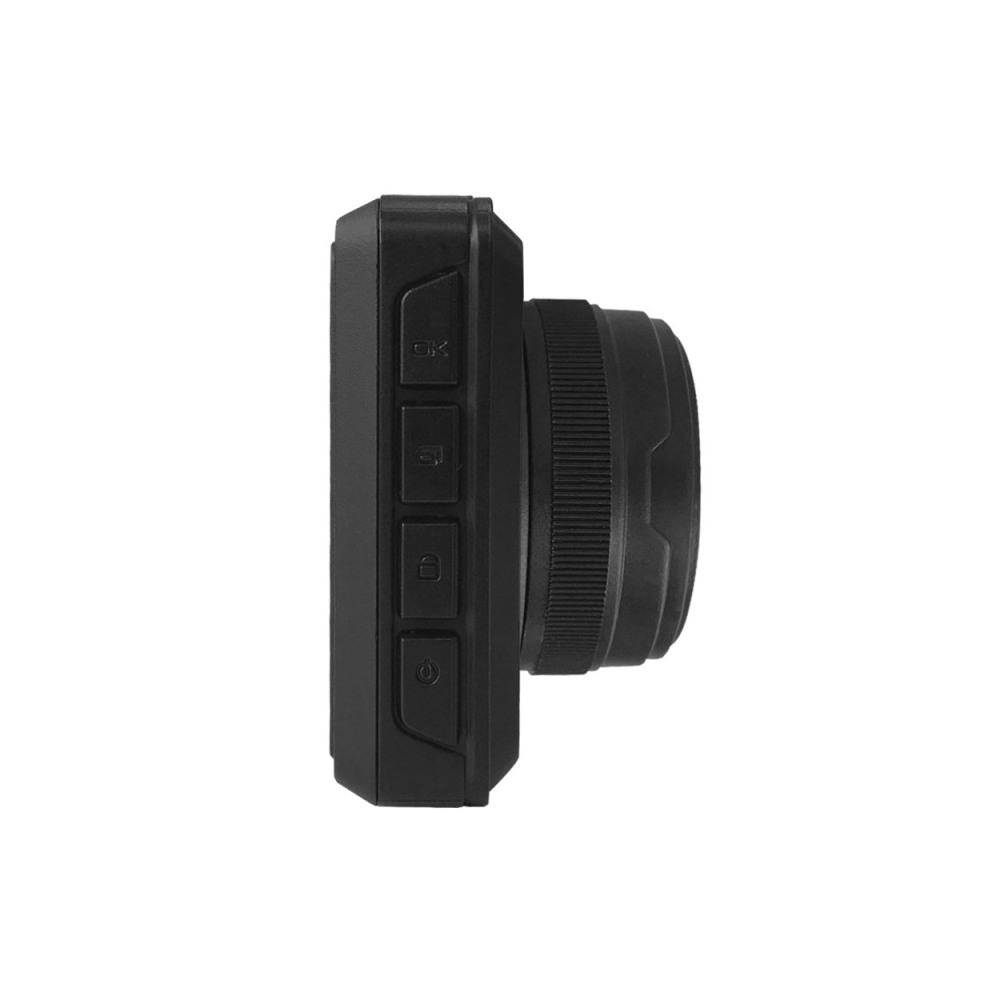

Front Camera
Image sensor2 million pixels sensors 1 / 2.9 "CMOS GC 2053 1080P

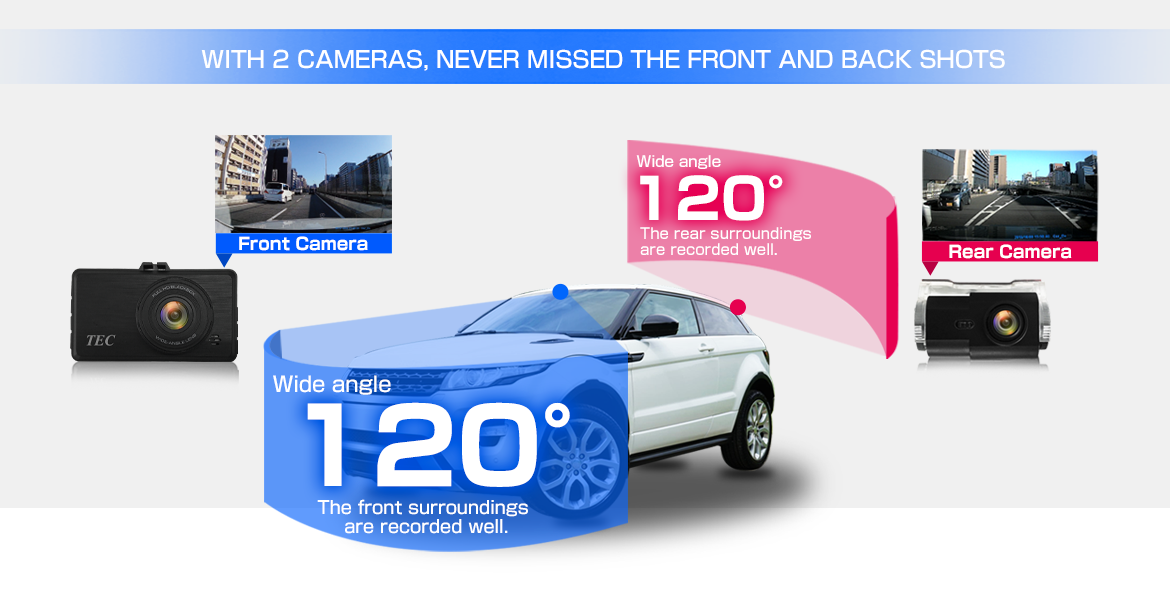

SENSOR recording angle of viewDiagonal 120 ° Horizontal 100 ° Vertical 55 ° (Measurement error 5%)
Frame rate30 fps
Lens4G+IR @17mm F/ON 2.4 f=3.2
Video resolution1080P 1920X1080 / 720P 1280X720
Still Image resolution2MHD 1920X1088 / 1.2M 1280X960

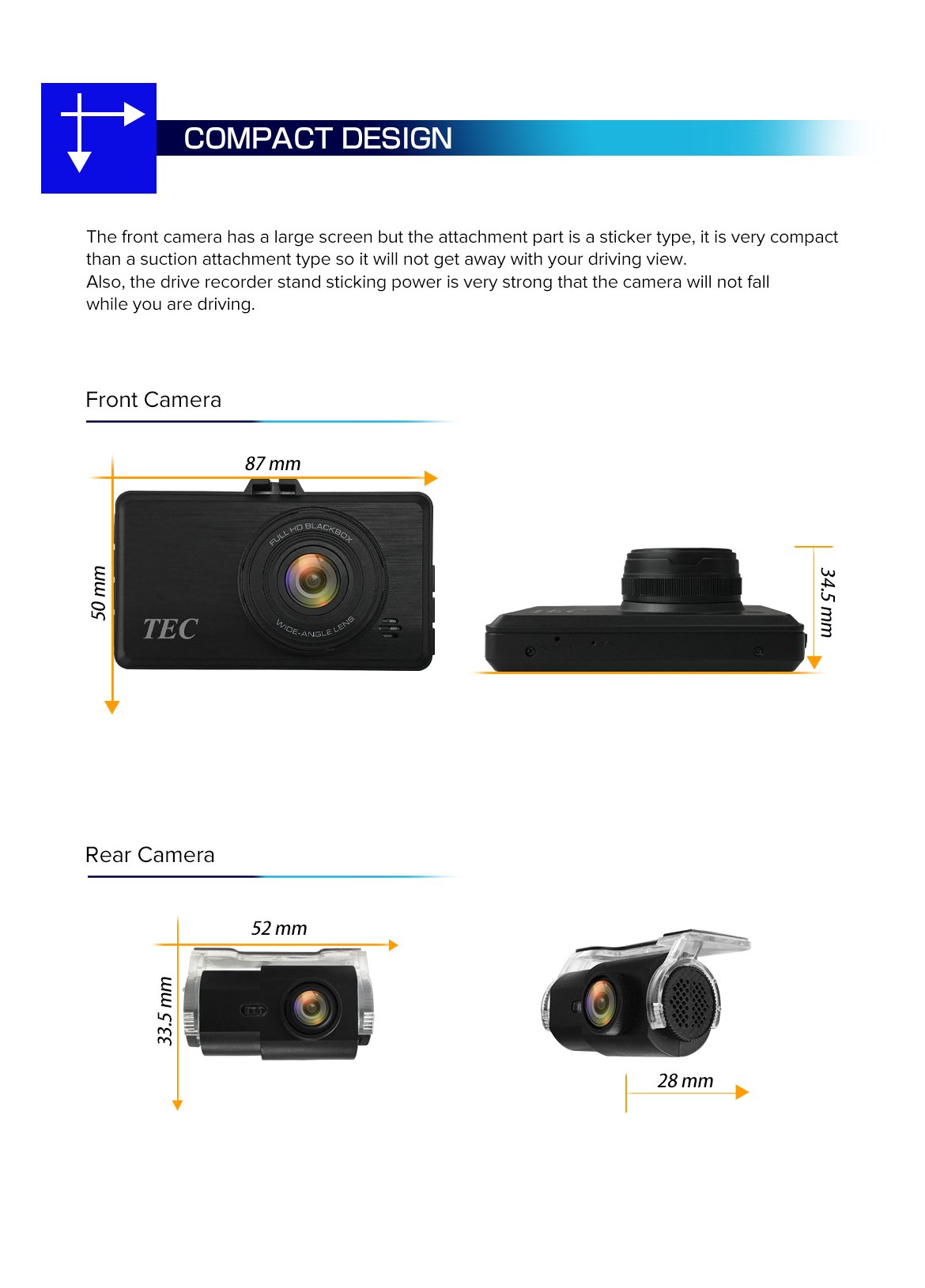

Body size87*50*34.5mm（W*H*D）
Body weightabout 100g

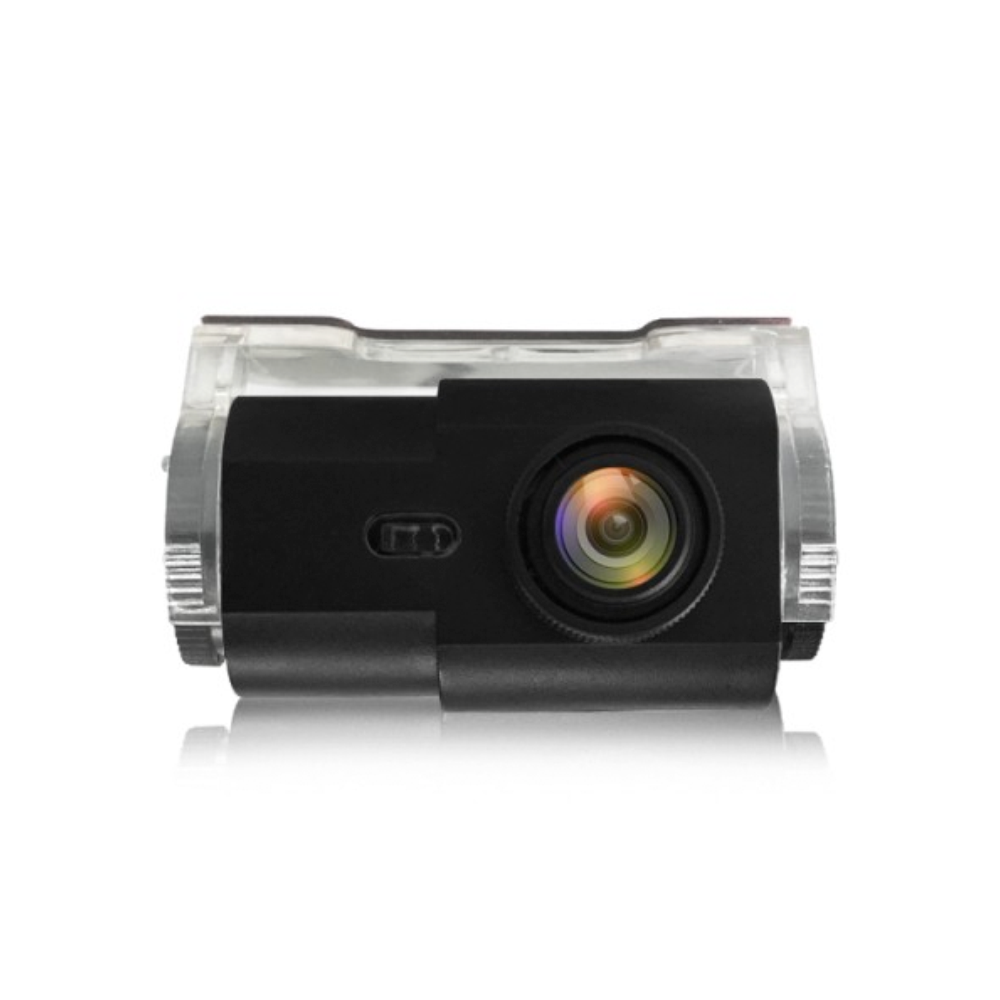

Rear Camera
Image sensor1 million pixels 1/4" CMOS sensor
SENSOR recording angle of viewDiagonal 120 ° Horizontal 100 ° ± 5 ° Vertical 55 ° ± 5 ° (Measurement error 5%)
Frame rate25 fps
Lens2G＋2P+IR @14mm F/ON =2.2
Video resolution720P 1280X720
Still Image resolution1M 1280X720
Body sizeLength 52.5MM * Width 28MM * Height 33.5MM (including bracket)
Body weightabout 40g
