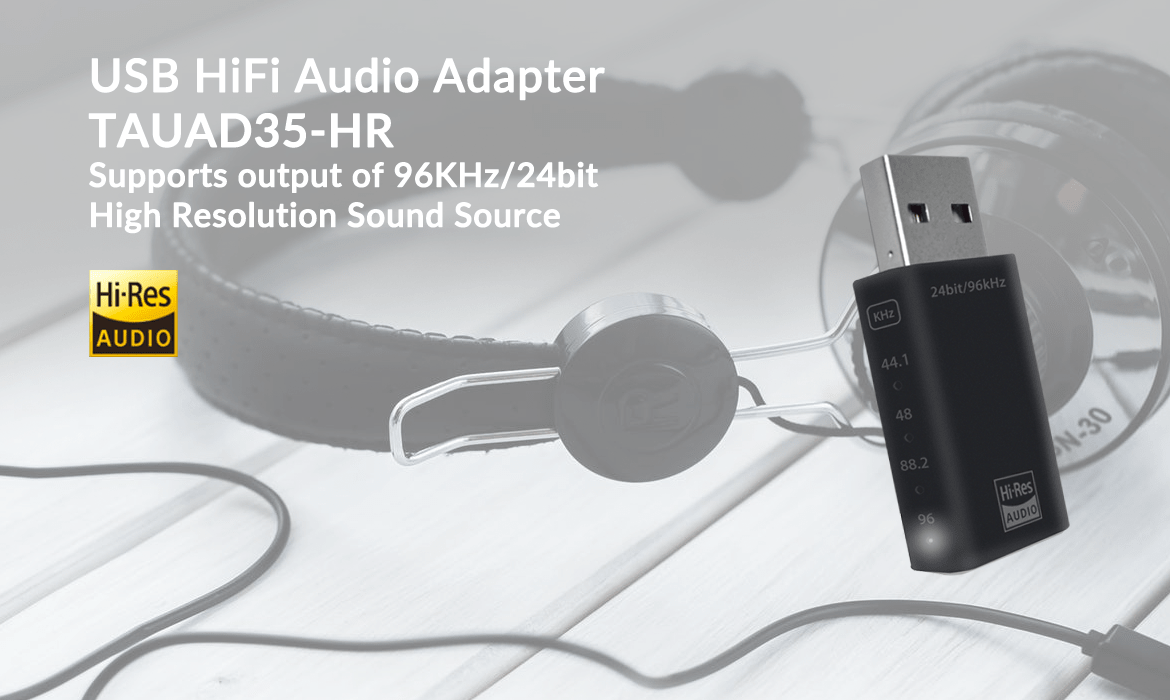

TAUAD35-HR USB High-Resolution Portable Headphone Amplifier
Model No.:
TAUAD35-HR
JAN:
4533239032161
| Model No. | TAUAD35-HR |
| JAN | 4533239032161 |

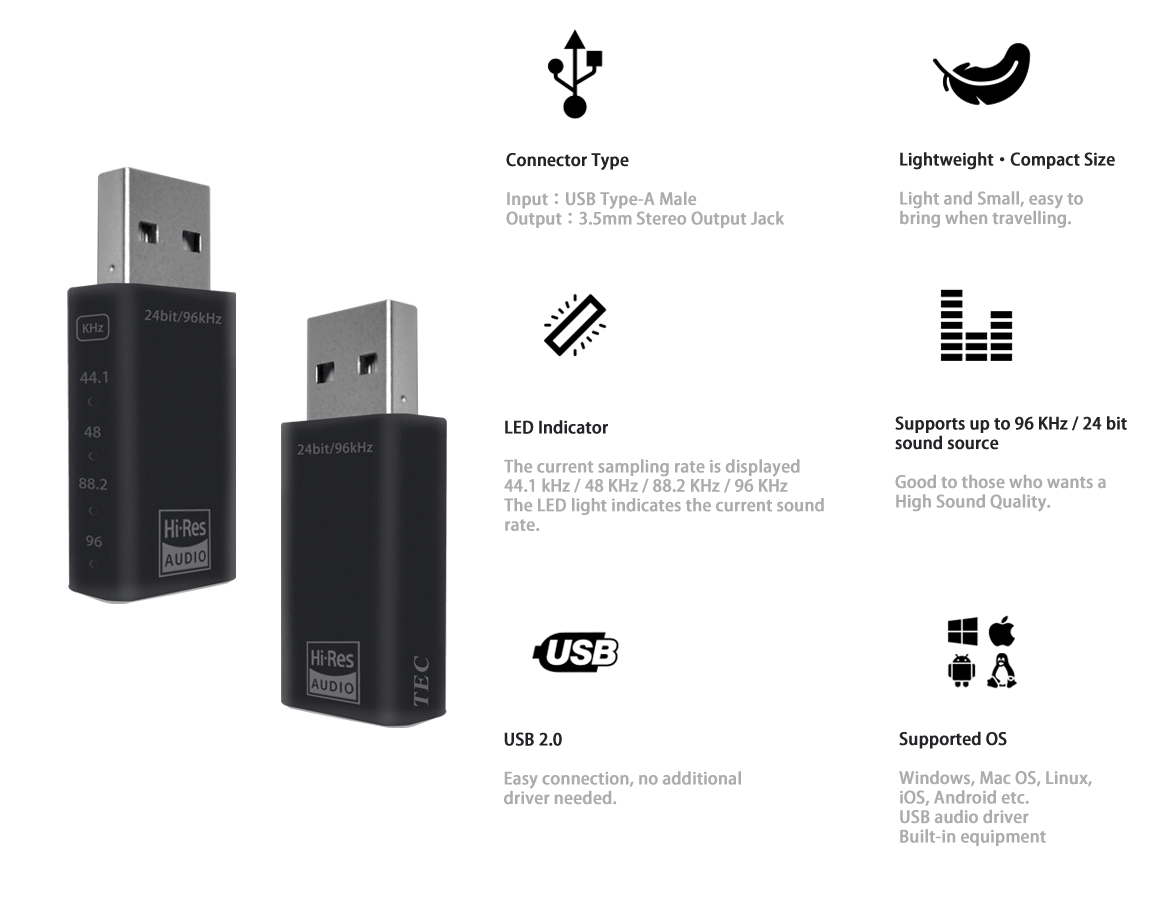

| Connector type | Input：USB Type-A Male Output：3.5mm Stereo jack |
| Maximum Output | - 30mW ＠32Ω - 10mW ＠100Ω |
| LED Indicator | The sampling rate set on the device side is displayed. |
| USB Equipped with bus power mode | No separate power supply is required. |
| Maximum supported bit / sampling rate | 24bit / 96kHz |
| THD+N | 0.003% @ 1mW |
| S/N Ratio | 116dB |
| Response frequency | 20 - 40KHz +/- 0.5dB |
| Supported headphones Ohm | 16 - 300Ω |
| System requirements | Windows 7 or later / Mac OS X 8 or later / iOS 10 or later (separate Lightning - USB camera adapter is required) / Devices with USB audio driver such as Linux, Android etc *Operation is not guaranteed on all PCs that satisfy the environment described above. |
| Weight | 9g |
| Dimension | （H）42mm×（W）17mm×（T）9.5mm |

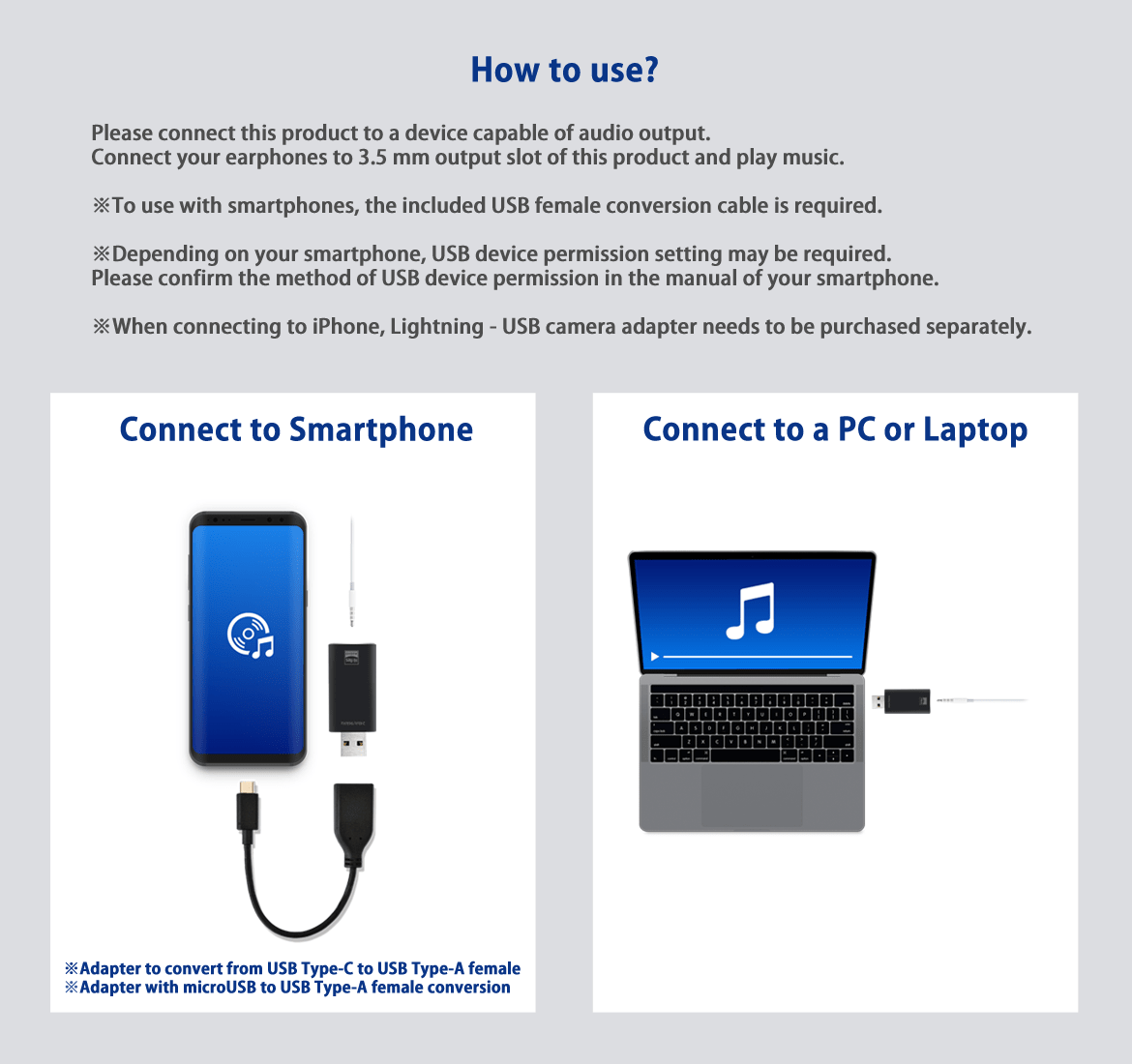

※ When using on an Android device, please check your device manual if your device supports the connection of the external device.
※ Indicator lamps may not be switched correctly depending on the high-resolution sound reproduction application you use.
※ Depending on the high-resolution playback application you use, the indicator lamp may not light up correctly as what is the sound rate stated in your application.
※ Indicator lamps may not be switched correctly depending on the high-resolution sound reproduction application you use.
※ Depending on the high-resolution playback application you use, the indicator lamp may not light up correctly as what is the sound rate stated in your application.
